SCHUNK KHM 40 - Lifting Plate

Assembly
02.00 | KHM | Assembly and Operating Manual | en | 389171
19

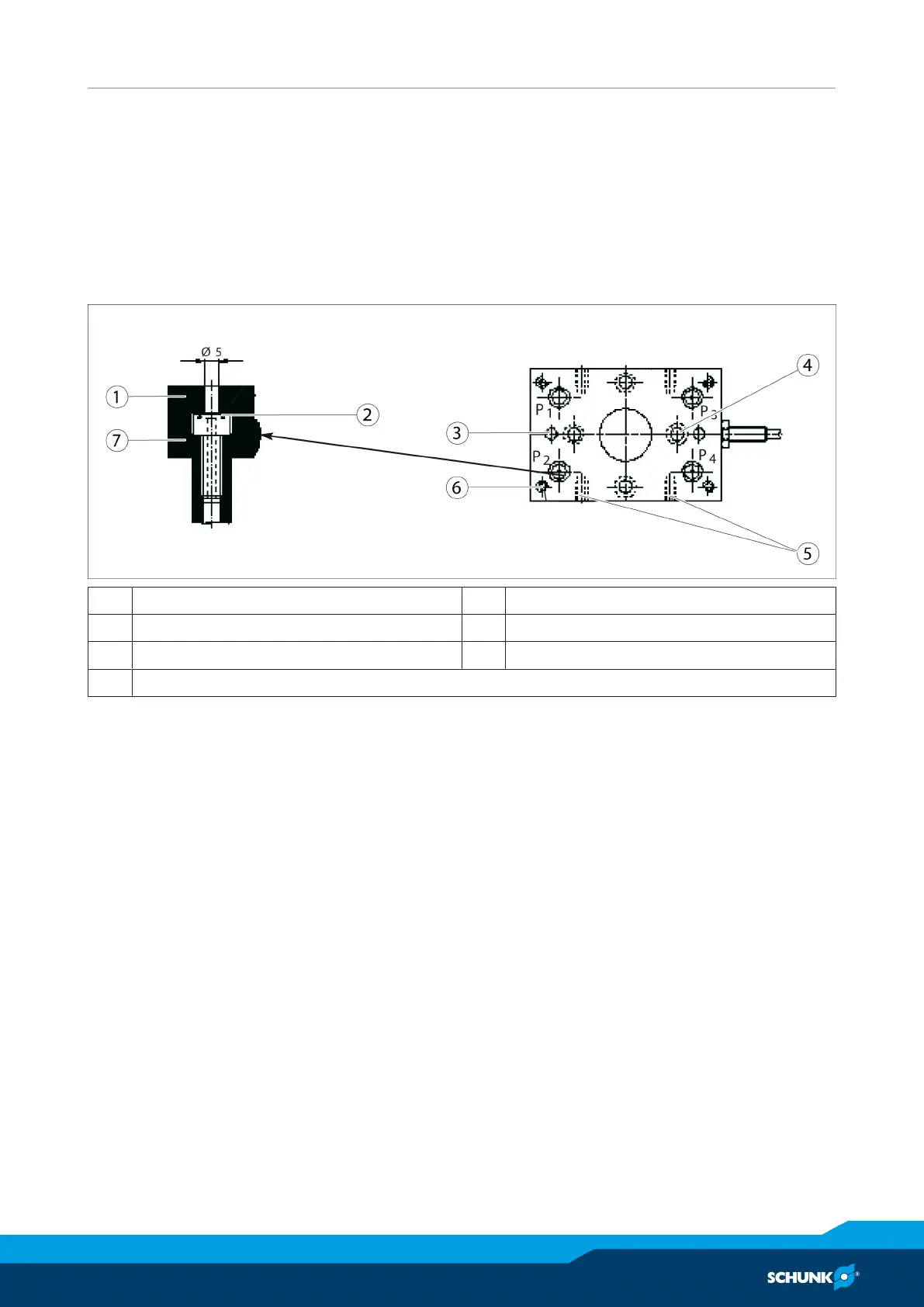

4.2 Lifting plate
Mounting:
• 4 threaded holes M6
• 4 threaded holes M6 x 14
• 4 bore holes with countersink for M6 DIN 912
• 2 fixing bores Ø6H7
Connection:
• 4 air connections P
1
, P
2
, P
3
, P
4
for hose-free pressure medium
feed-through
1 Adapter 5 4 threaded holes M6 x 14
2 O-ring Ø 6 x 2 6 4 threaded holes
3 2 fixing bores 7 KHM
4 4 bore holes with countersink
