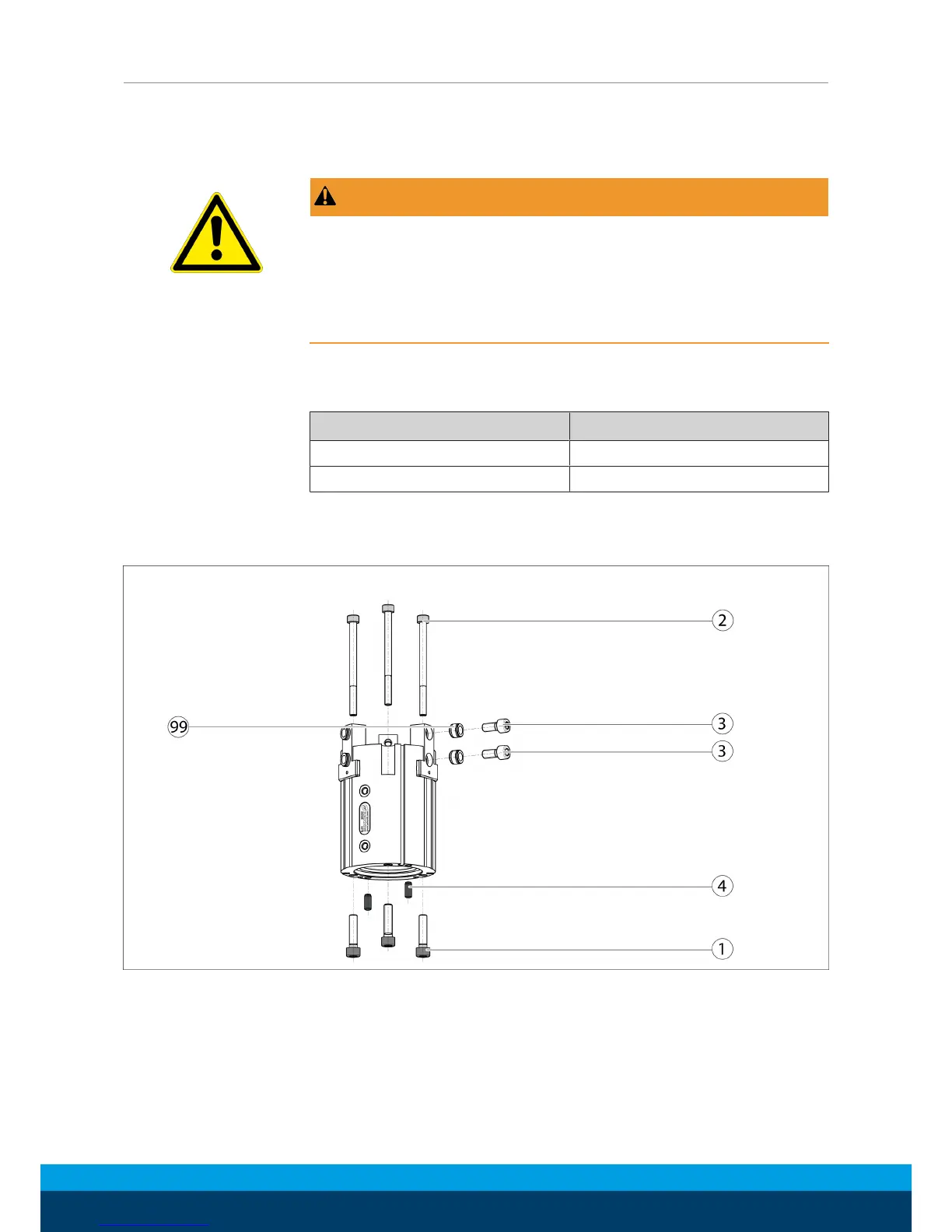

SCHUNK LGZ 16 - 4 Assembly; Mechanical Connection

Assembly
18
04.00 | LGZ | Assembly and Operating Manual | en | 389192
4 Assembly
4.1 Mechanical connection
WARNING
Warning: Risk of injury when the machine/system moves unex-
pectedly!
Remove the energy supplies before starting with assembly and
adjustments.
Make sure that no residual energy remains in the system.
Check the evenness
of the bolting surface
The values relate to the entire bolting surface.
Requirements for levelness of the bolting surface (Dimensions in mm)
Diameter Permissible unevenness
< 100 < 0.02
> 100 < 0.05
Mounting
The module can be mounted from the front or the rear.
Assembly options
