Assembly
20
04.00 | LGZ | Assembly and Operating Manual | en | 389192
NOTICE
Observe the requirements for the air supply
Technical data [
}
16].

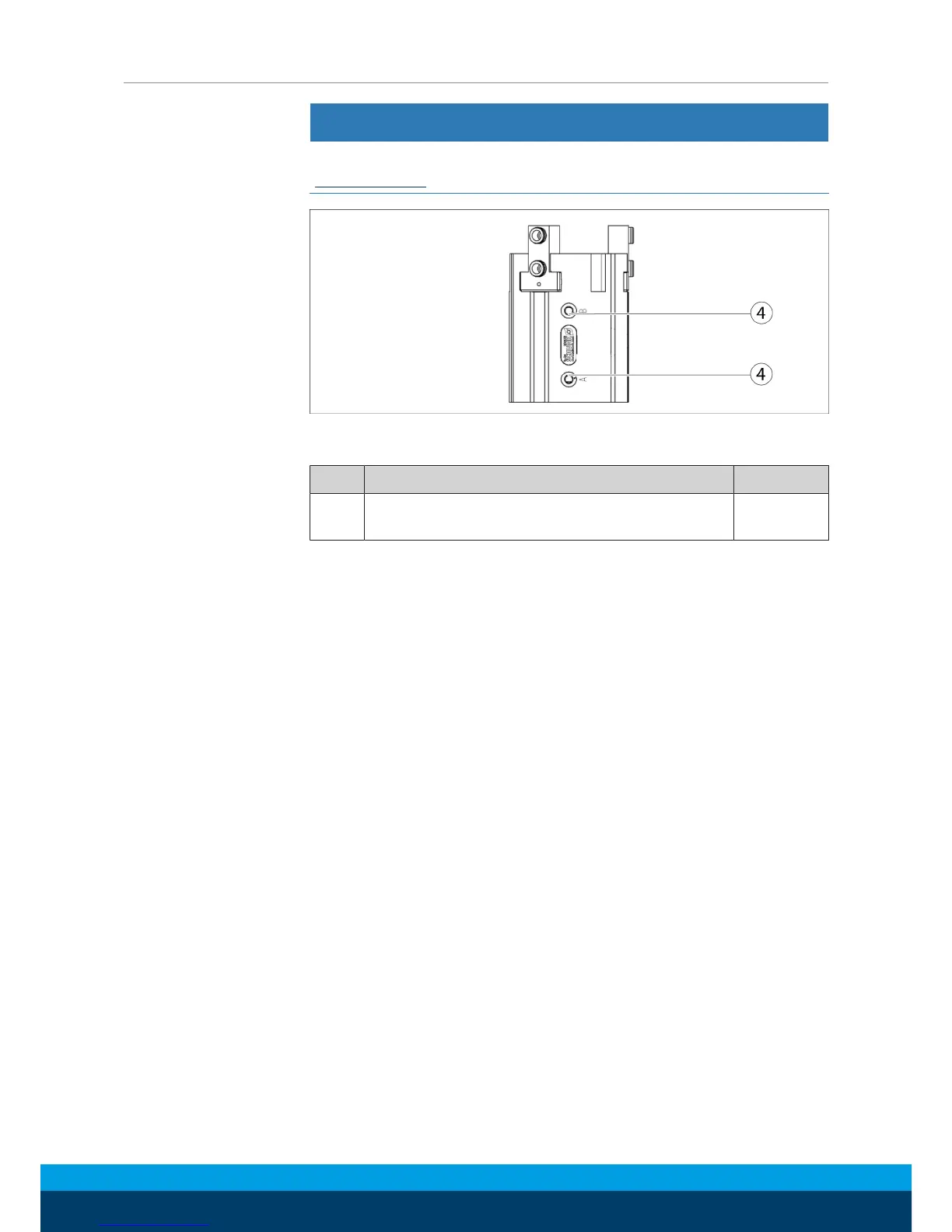

Air connections
Thread diameter of the air connections
Item Connection 16 - 50
4 Thread diameter of the air connections
(A = open, B = close)
2 x M5
• Only open the air connections required.
• Seal air connections not required using
the locking screws from the enclosed pack.
• For hose-free direct connections use the two O-rings from the
enclosed pack.
Further information on the hose-free direct connection contains
the catalog data sheet.
4.3 Sensors
The module is prepared for a number of sensors. Other sensors
can be used with a mounting kit.
• If you require further information on sensor operation, contact
your SCHUNK contact person or download information from our
homepage.
• Technical data for the sensors can be found in the data sheets
(included in the scope of delivery).
