4.3.1 Programmable magnetic switch (MMS-P)
NOTE
The MMS-P can be used for sizes LGZ 16 to LGZ 50.

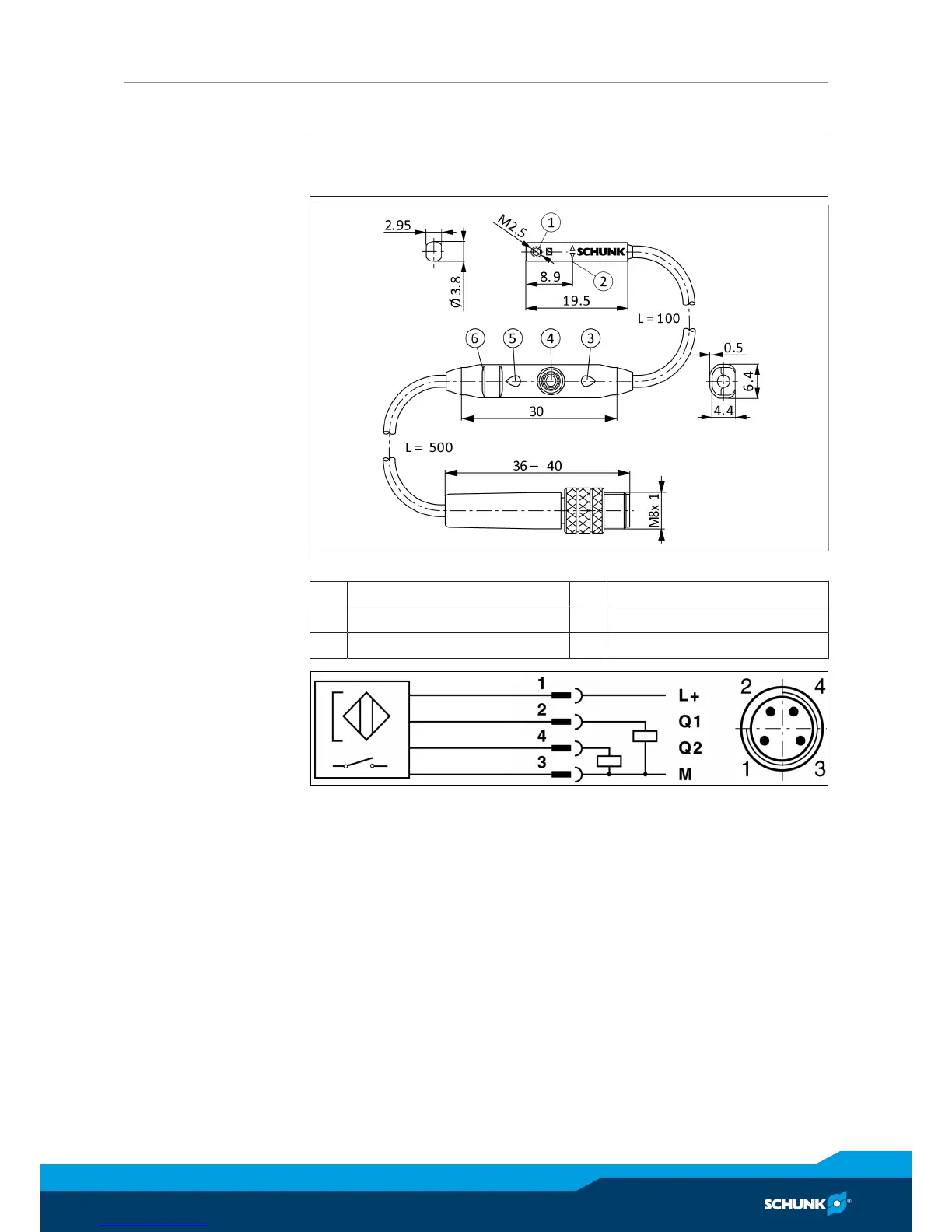

Magnetic switch MMS-P 22
1 Mounting screw 4 Teach-button
2 Center sensor elements 5 LED display
3 LED display 6 Ribs for cable tires
Connection diagram PNP-4 conductor (MMS-P 22)
Types available for order (see catalog):
• MMS-P 22-S-M8-PNP
• MMSK-P 22-S-PNP
• V2-M8-4-2XM8-3
The MMSK-P 22-S-PNP features a cable with open strands so that
it can be connected via terminal contacts.
The V2-M8-4-2XM8-3 distributor is used to convert the 4-pin con-
nector plug of the MMS-P 22-S-M8-PNP sensor to two standard
M8 plugs with 3 pins each.
