Assembly
22
04.00 | LGZ | Assembly and Operating Manual | en | 389192
Mounting of the
sensor
NOTICE
Sensor can be damaged during assembly.
Do not exceed the maximum tightening torque of 10 Ncm for
the set screws!
NOTE
Ferromagnetic material changes the switching positions of the
sensor (e.g. Adapter plate made of ordinary steel).
For ferromagnetic adapter plates:
The module must be first mounted on the adapter plate.
Then, the position of the magnetic switchs has to be set.

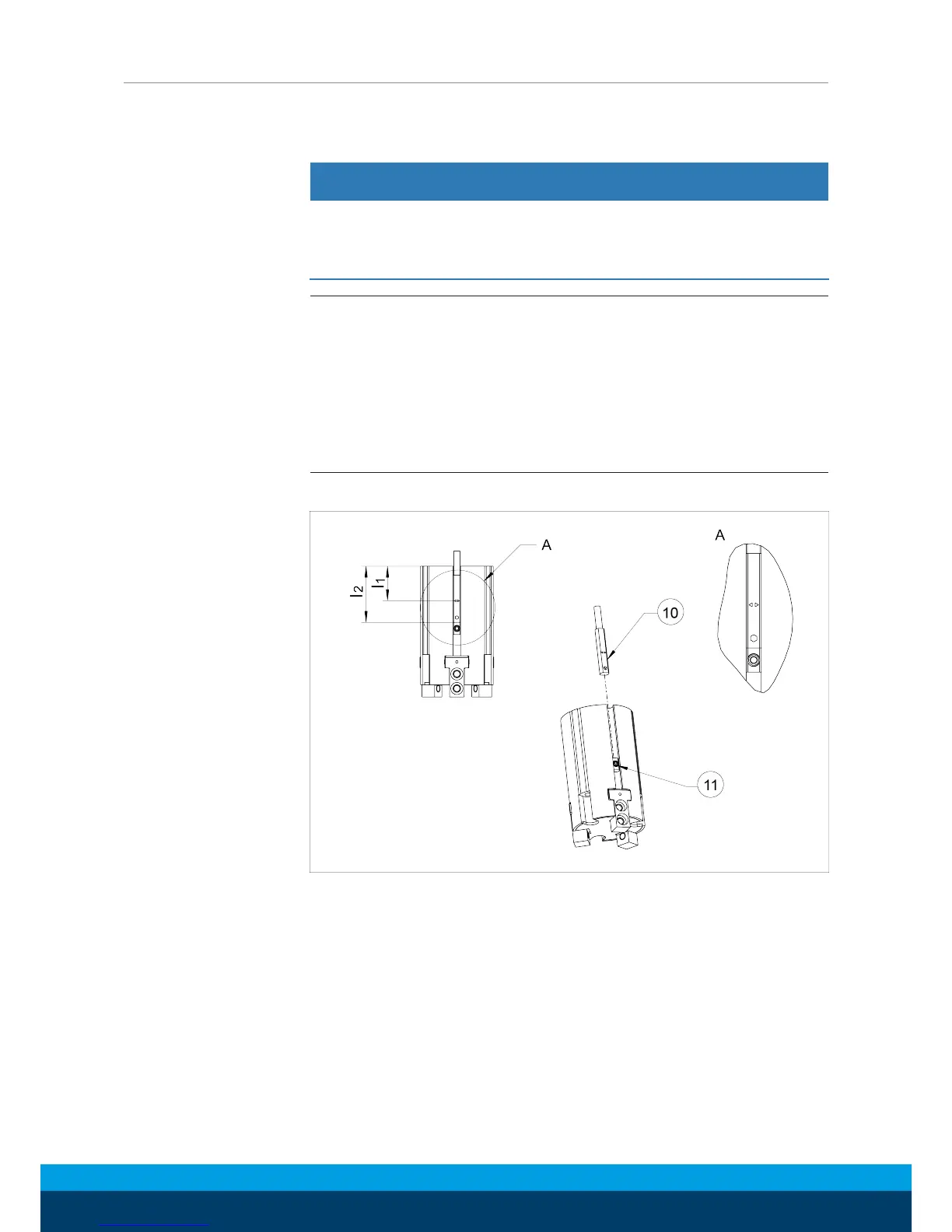

Ø Push the magnetic switch (10) into the groove until it rests on
the back stop (11) (if present).
Ø If no clamping stop is available, push in the magnetic switch in
accordance with dimension l
2
(lower edge gripper up to front
side sensor) or with dimension l
1
(lower edge gripper up to the
double arrow on the sensor) and then clamp.
