Assembly
04.00 | LGZ | Assembly and Operating Manual | en | 389192
23
Type Dimension l
1
Dimension l
2
Type Dimension l
1
Dimension l
2
LGZ 16 ° 14.3 mm 23.2 mm LGZ 50 ° 33.1 mm 42.0 mm
LGZ 16-AS ° 12.8 mm 21.7 mm LGZ 50-AS ° 26.1 mm 35.0 mm
LGZ 16-IS° 14.3 mm 23.2 mm LGZ 50-IS ° 33.1 mm 42.0 mm
LGZ 32 ° 23.0 mm 31.9 mm
LGZ 32-AS ° 18.0 mm 26.9 mm
LGZ 32-IS ° 23.0 mm 31.9 mm

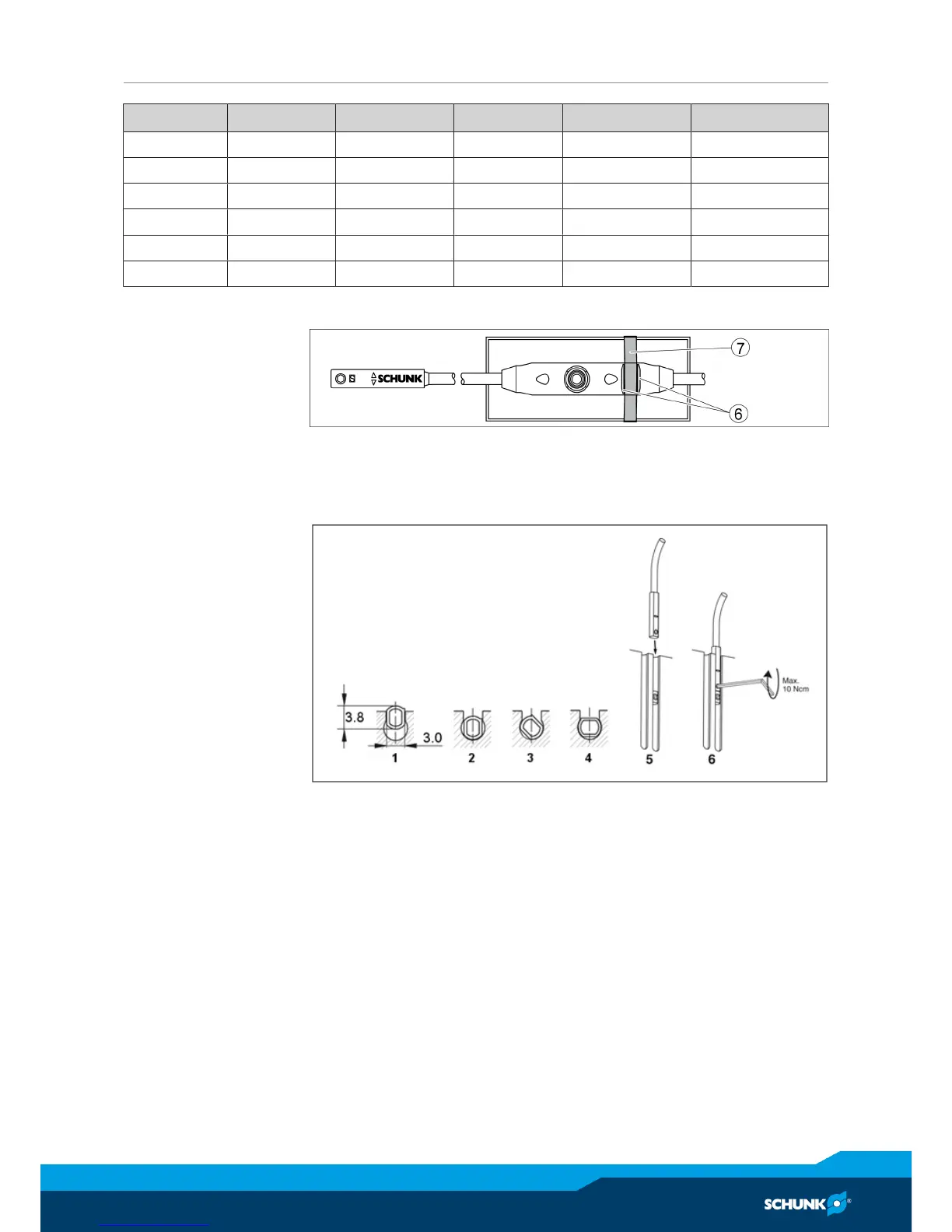

Ø To relieve the cable, the electronics have to be fixed in place
using cable ties (7).
There are ribs (6) in place on the electronics for mounting
purposes.
Ø Turn in the sensor (1 - 4).
OR
Push the sensor axially into the slot until it contacts the stop (5).
Ø Fix the sensor with an Allen wrench (6).
