Assembly
04.00 | LGZ | Assembly and Operating Manual | en | 389192
25
Sensors MMS 22, MMS-P 22, MMS 22-PI1 and MMS 22-PI2
The smallest detectable difference in stroke is defined in the fol-
lowing table:
The smallest detectable difference in stroke based on the nominal stroke
For grippers with X mm
nominal stroke per jaw
Min. query range per jaw/
min. queried stroke difference per jaw
X ≤ 5 mm 30% of the nominal stroke per jaw
X > 5 mm to X ≤ 10 mm 20% of the nominal stroke per jaw
X > 10 mm 10% of the nominal stroke per jaw
Example: Product with 7 mm nominal stroke per jaw
7 mm * 20% = 1.4 mm

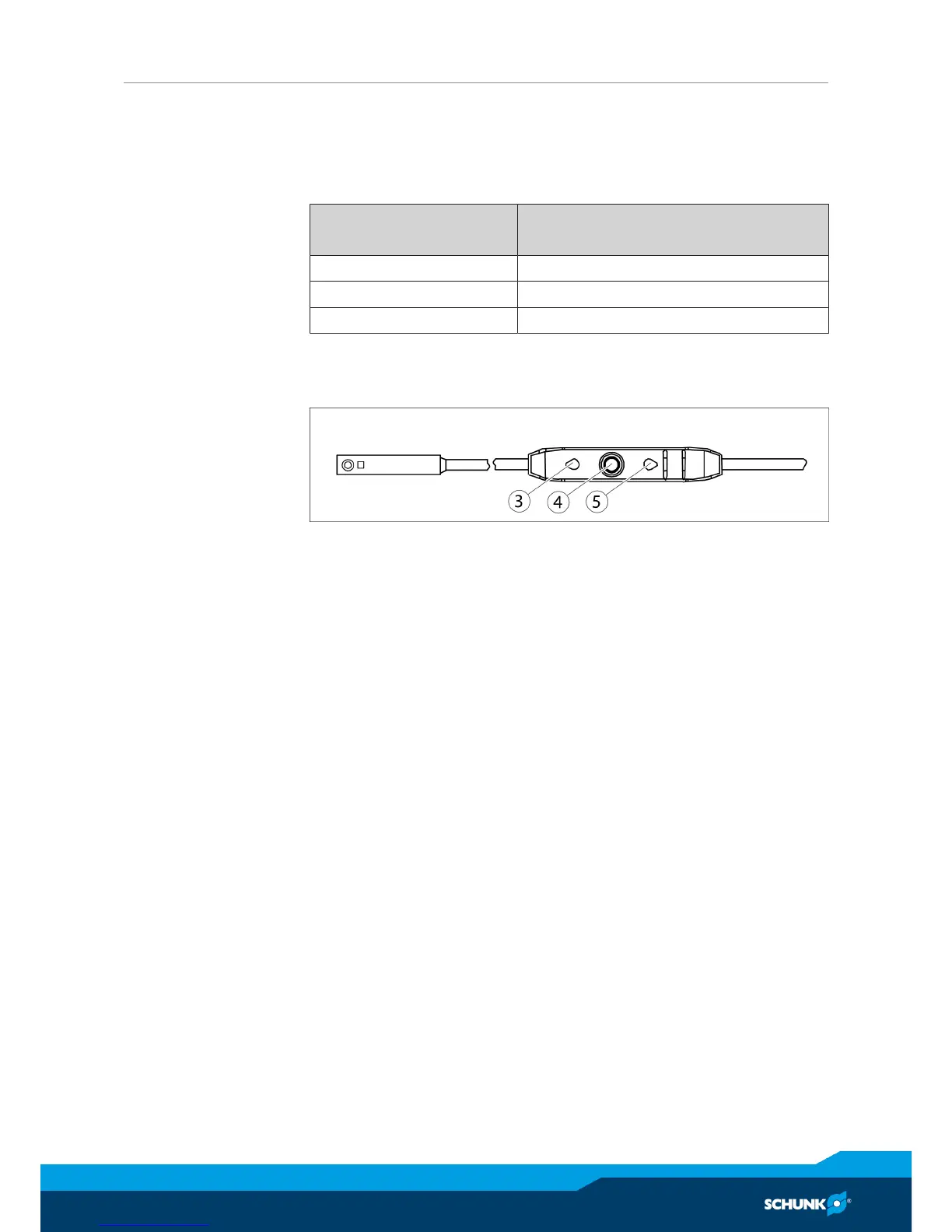

Ø Press the "Teach" button (4) for 5 seconds.
LED 1 (3) flashes from the second to the fifth second.
LED 1 goes out after 5 seconds.
Ø Release the "Teach" button.
Ø Move the gripper to the "switch off point for switching point 1"
position.
Ø Briefly press the "Teach" button (4).
LED 1 (3) flashes 2x.
Ø Move the gripper to the "switch off point for switching point 2"
position.
Ø Briefly press the "Teach" button (4).
LED 2 (5) flashes 2x.
The assembly of the MMS-P sensor is completed.
