Assembly
08.00 | MPG-plus | Assembly and operating manual | en | 0389216
31

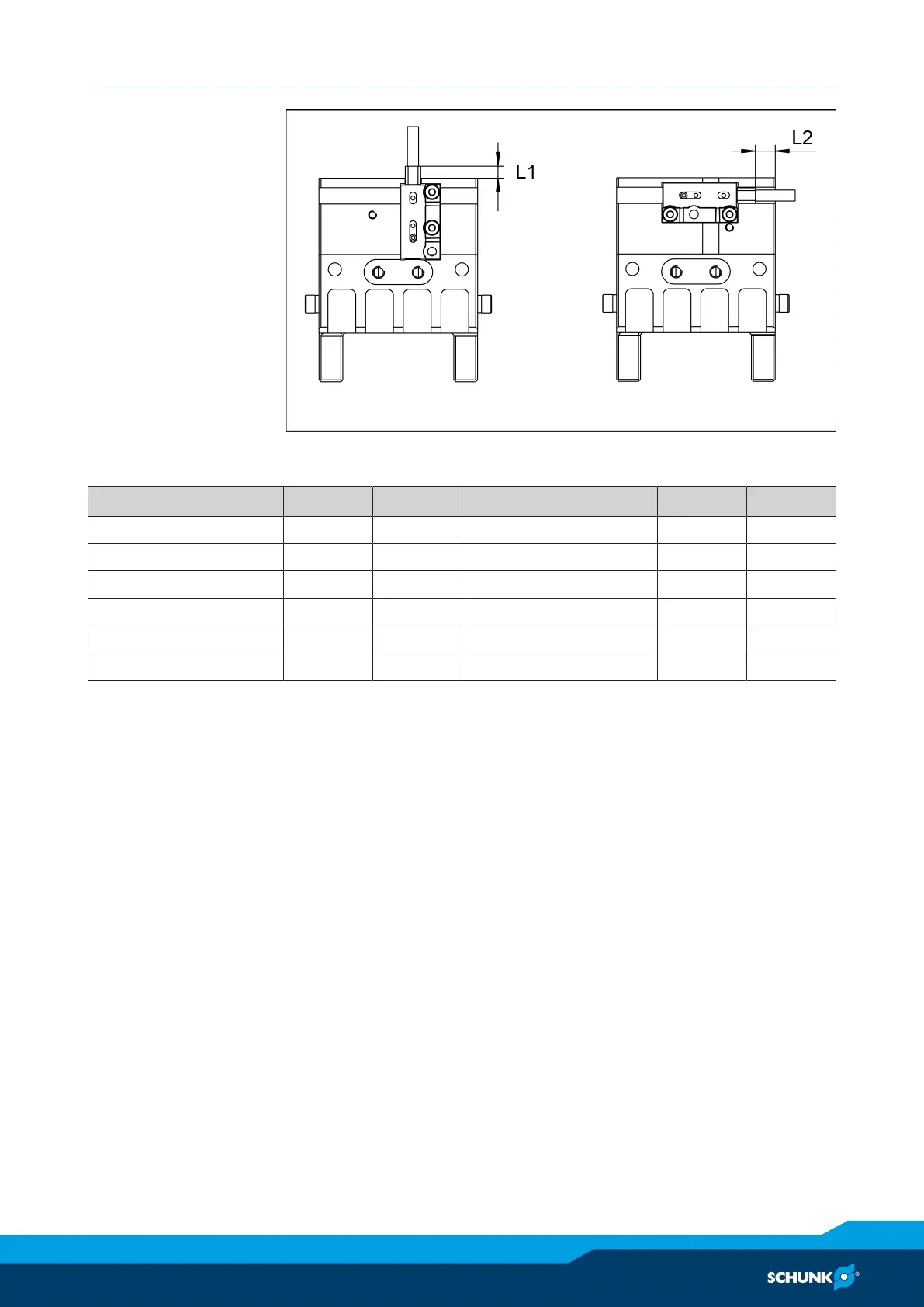

Protrusion of the sensor to be mounted
Adjustment dimensions
Size L1 [mm] L2[mm] Size L1 [mm] L2 [mm]
6.8 3.0 MPG-plus 40 3.0 5.0
MPG-plus 25 AS -6.0 3.0 MPG-plus 40-AS -19.0 5.0
MPG-plus 25 IS 6.5 3.0 MPG-plus 40-IS 1.5 5.0
MPG-plus 32 4.0 7.0 MPG-plus 50 2.3 13
MPG-plus 32 AS 1.5 7.0 MPG-plus 50-AS -16.5 13
MPG-plus 32 IS 0 7.0 MPG-plus 50-IS 2 13
