Assembly
32
08.00 | MPG-plus | Assembly and operating manual | en | 0389216
5.3.5.2 Size MPG-plus 64
For this size, there is no bracket necessary. Depending on the de-
sired installation position, the sensor is fastened in the vertical or
horizontal slot of the gripper.
Ø If there is a slot nut (1), move the slot nut to dimension L3 or L4
(see table "adjustment dimensions"). Move the sensor (2) into
the slot up to the stop.
OR: If there is no slot nut (1), move the sensor (2) into the slot
and adjust it to distance L3 or L4 (see table "adjustment dimen-
sions").
Ø Fasten the senor using a threaded pin.
Tightening torque: 10 Ncm
Ø Adjust the sensor, see assembly and operating manual of the
sensor.

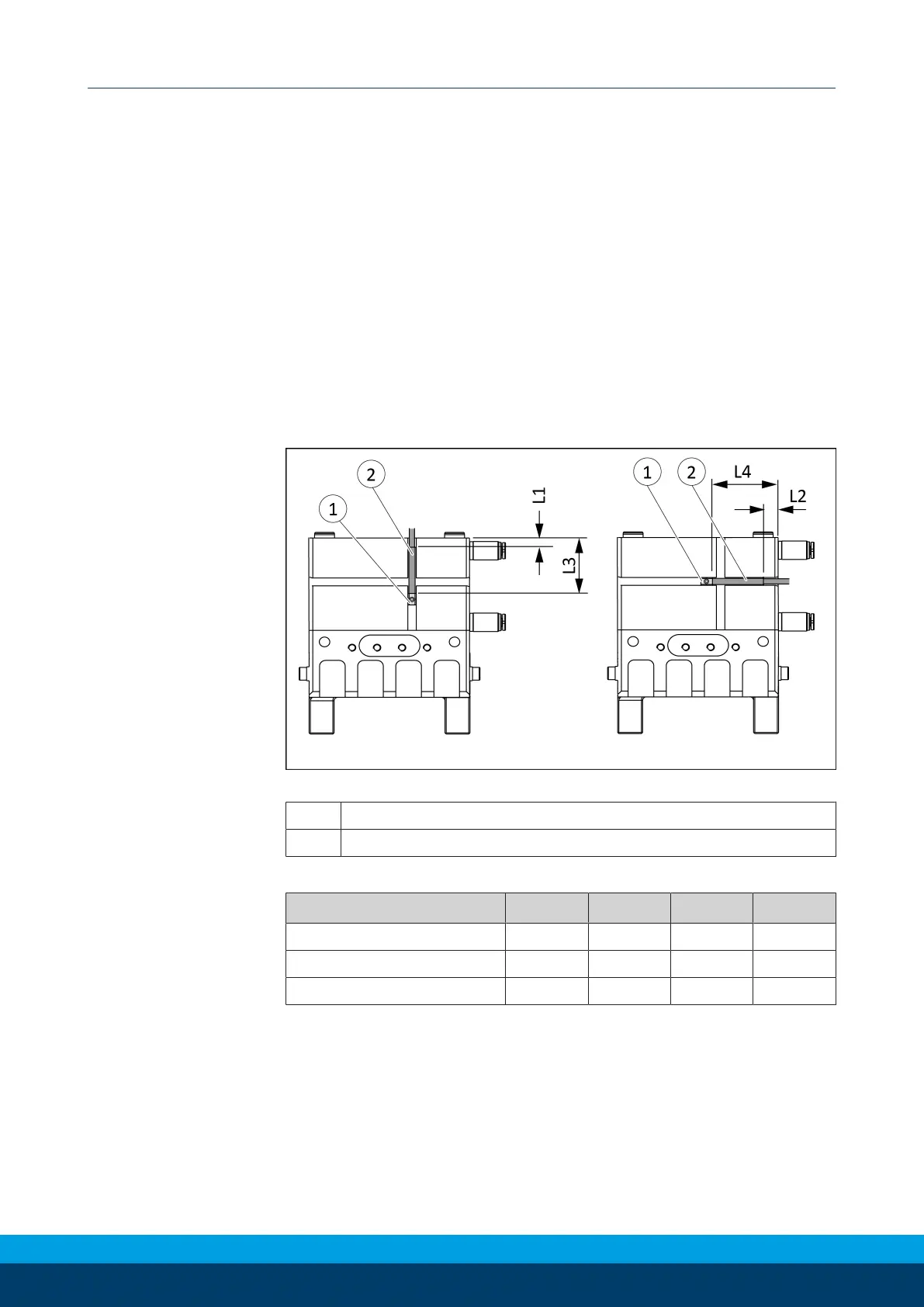

Adjustment dimensions of slot nuts and the sensor
L1, L2 Protrusion of the sensor
L3, L4 Distance of housing to front side of the sensor
Adjustment dimensions
Size L1 [mm] L2 [mm] L3 [mm] L4[mm]
MPG-plus 64 -5 7 -25 -15
MPG-plus 64 IS -20 6 -24 -16
MPG-plus 64 AS -4 7 -40 -15
