SCHUNK ROTA THW plus Series User Manual

Technical data
20 01.00|ROTA THWplus |en
was applied and the jaws were set flush with the outer diameter of
the chuck.
The chuck is in perfect condition and lubricated with SCHUNK
LINOMAX special grease.
If one or more of these prerequisites is modified, the graphs will
no longer be valid.
Chuck setup for clamping force/rpm graph
F/3
Clamping force per jaw
F
max
Max. actuating force
r
s
Center of gravity radius
S
Center of gravity

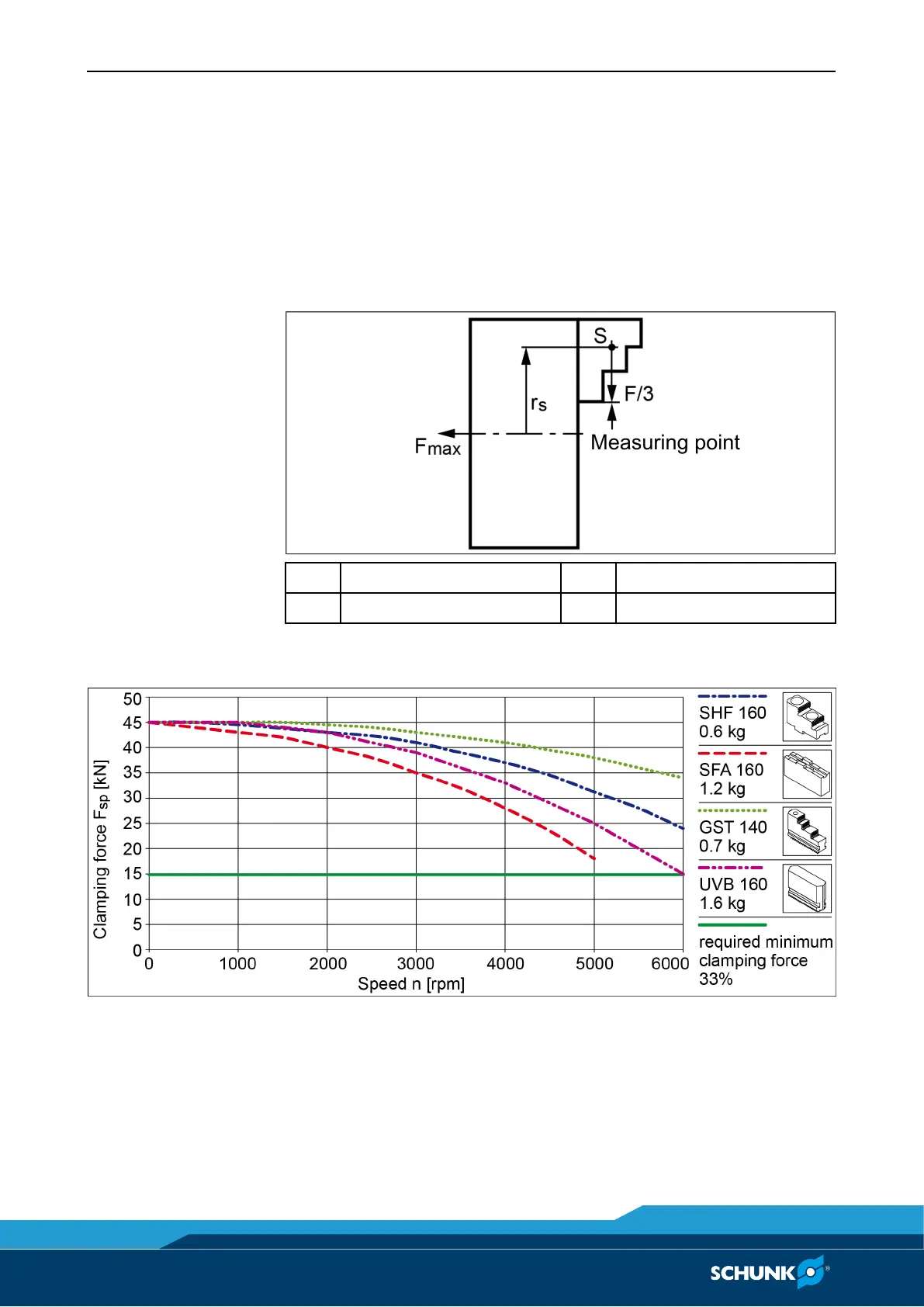

Clamping force / speed diagrams ROTA THW plus 165-43
Clamping force / speed diagrams ROTA THW plus 185-52

SCHUNK ROTA THW plus Series Specifications

General

Brand	SCHUNK
Model	ROTA THW plus Series
Category	Industrial Equipment
Language	English
