SCHUNK ROTA THW plus Series User Manual

Attachment and disassembly of the chuck
30 01.00|ROTA THWplus |en
jaws into the chuck's jaw guidance as shown on markings 1, 2
or 3.
• Check that the base jaw and jaw stroke are easy to move.
Dismounting of the spindle is carried out in reverse order.
At regular intervals, check that the retainer ring (item 17) is seat-
ed firmly (see Fig. 3).

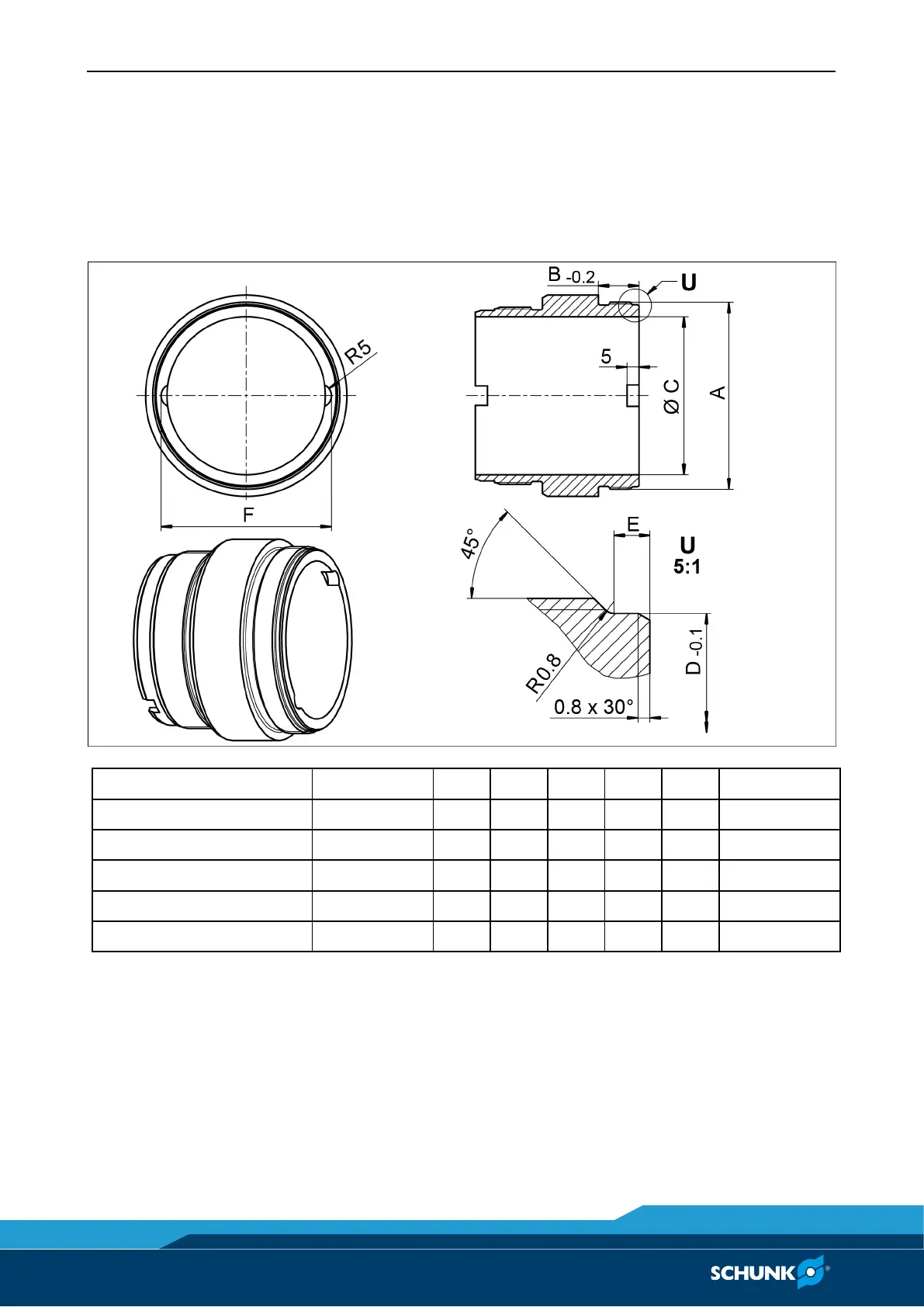

A
B
C
D
E
F
O-ring
ROTA THW plus 165-43
M54 x 1.5
15.0
43
50.8
2.8
47
50.47 x 2.62
ROTA THW plus 185-52
M64 x 1.5
15.0
52
62.0
2.4
58
60 x 2
ROTA THW plus 215-66
M78 x 1.5
17.0
66
76.0
2.4
70
76 x 2
ROTA THW plus 260-81
M90 x 2.0
20.3
81
87.0
2.4
84
86 x 2
ROTA THW plus 315-104
M115 x 2.0
22.5
104
110.0
3.2
107
110 x 3
Lubricate before commissioning the chuck
Before commissioning, move the chuck in the open position. Press
three strokes SCHUNK special grease LINOMAX into each of the
grease nipples using a high-pressure grease gun. To achieve the
optimal grease distribution and the maximum clamping force,
close and open the chuck several times over the entire clamping
stroke. Check the clamping force and, if necessary, repeat the lu-
brication process.
