Service Manual
Remote Control Cable/Radio
570

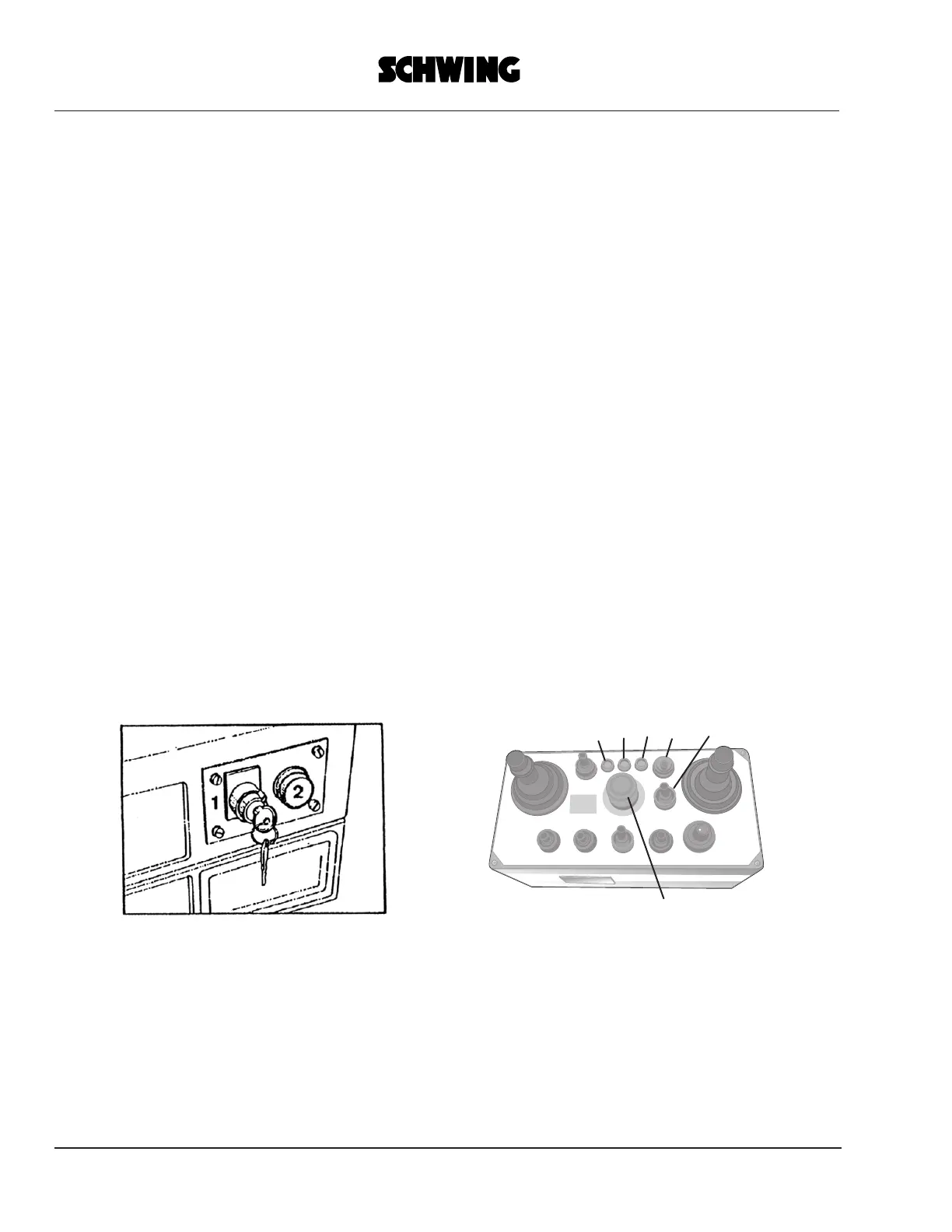

2. Short Operating Instructions
The short operating instructions are to be used as a
short reference only. They are by
no means a
replacement for the detailed operating instructions.
Please observe also the
operating instructions of the
machine
!
Preparations
• Set up the machine.
• Set all control elements on the machine and the
transmitter to their “0” position.
• Shut off the vehicle engine as long as it is still
warm, and leave the ignition on.
• Plug in the receiver cable.
• Set the operating mode selector switch on the
machine to “REMOTE”.
• Set the power supply switch of the electric
control to “ON”.
• Unlock all EMERGENCY SHUT-OFF buttons
of the machine.
Ready-for-Operation State
• Switch on power supply of transmitter; LED 4
is flashing.
• Push EMERGENCY SHUT-OFF 1; LED 4 is
flashing faster.
• Pull EMERGENCY SHUT-OFF 1; LEDs 2 and 4
are extinguished; LED 3 is permanently lit: empty
messages are being transmitted.
• Actuate control element; LED 3 is flashing: instruc-
tion messages are being transmitted.
Emergency Shut-Off
Pushing in the EMERGENCY SHUT-OFF BUTTON
interrupts the main functions of the machine.
Automatic Shut-Off
for example, in case of:
• low battery voltage
• message errors
• electronic module failure
• no command instruction messages received
(for more than 30 minutes).
Interruptions of Work
• Bring placing boom into transport position.
• Set control elements to “0”-position.
• Shut-off power supply of transmitter
• Set power supply switch of the electric control
to “OFF”.
• Lock away transmitter.
2
3
4
5
6
1
