Service Manual
Remote Control Cable/Radio
606
Operation Fault Indicators

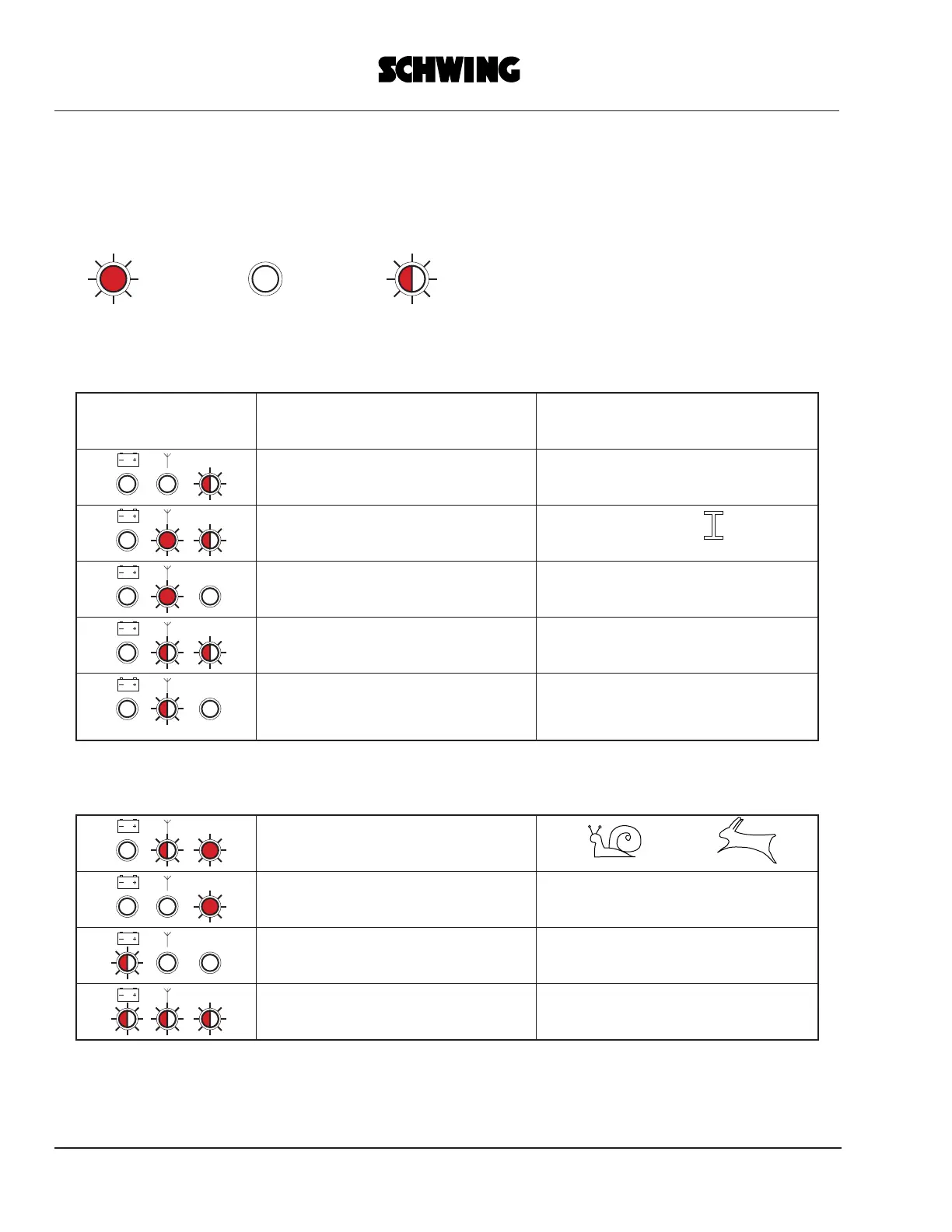

OPERATION AND FAULT INDICATORS
The light-emitting diodes indicate different operational states and malfunctions.
1. TRANSMITTER
START-UP/OPERATION
MALFUNCTIONS
Stop
Stop
Stop
Stop
Stop
= ON = OFF = FLASHING
LED MESSAGE
transmitter activated, EMERGENCY
SHUT-OFF test required.
"Multi-Control" only:
enable required
enable accepted, transmitter ready
for operation, no function activated
(basic position)
enable not accepted, restart protection
active
one or more functions activated,
transmitter sending data
depress EMERGENCY SHUT-OFF
button (LED flashing faster) and release
depress enable button
start work
ing
set all switches to "0" position
machine executes control commands
ACTION
Stop
Stop
Stop
Stop
boom functions de-actived, "STOP"
lamp lights up when joystick is moved.
EMERGENCY SHUT-OFF button
actuated
battery empty, remaining time for
operation = 10 to 20 min.
transmitter defective
select or
set all switches to "0" position, unlock
EMERGENCY SHUT-OFF
replace battery
repair by authorized personnel only
