ASSEMBLY INSTRUCTIONS
Step 5 Install Console
Parts:
• Console (Ref U)
Tools:
•SuppliedPhillipsHeadScrewdriver
NOTE:Beforeinstallingtheconsole,makesurethetoggle
switchonthebackoftheConsole(besidewireconnectors)
is set to EP.

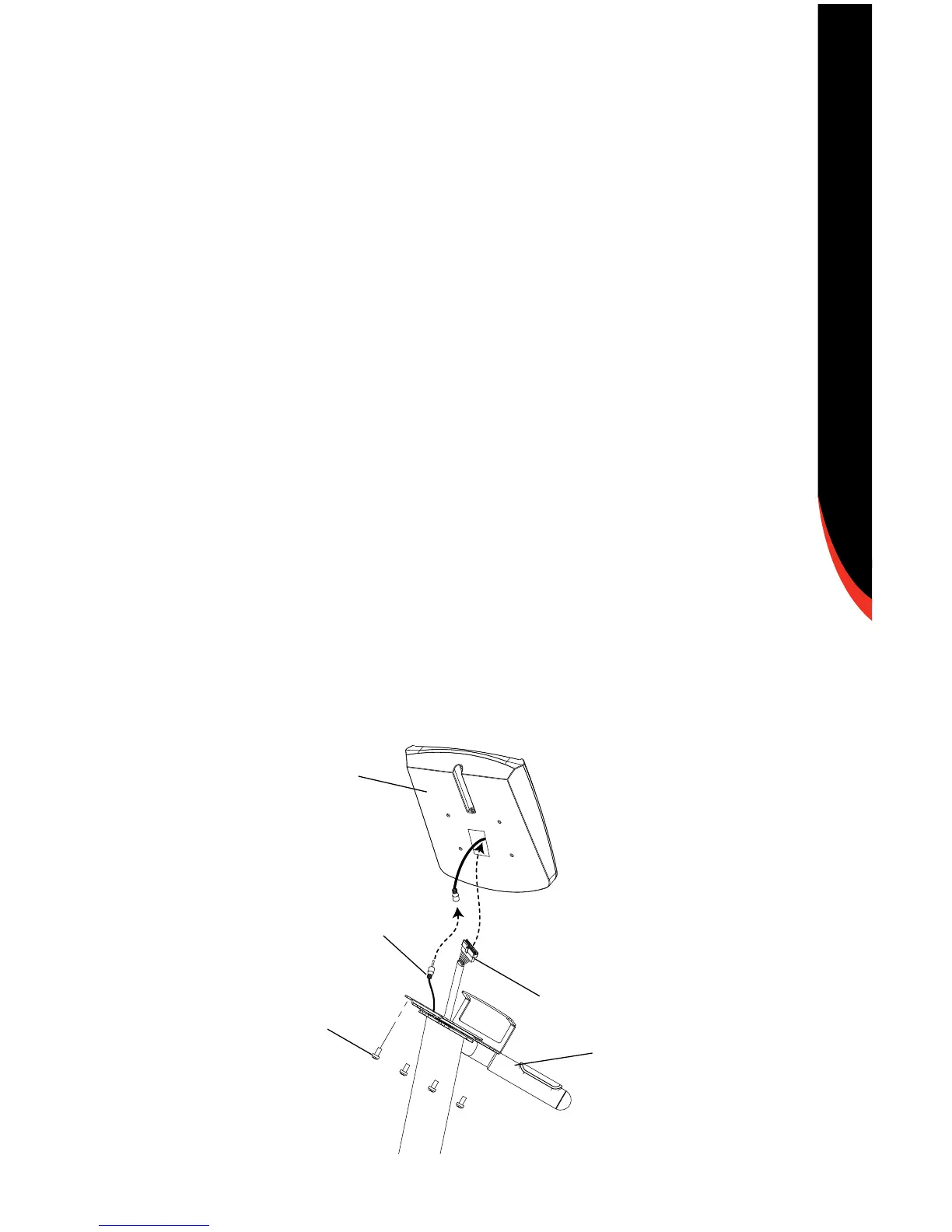

5-1 Remove thefourM5x10phillpsscrews(Ref9)fromthebackof
theconsole.
5-2 ConnecttheWireHarness(RefW1)andContactHeartRateWire
(RefW2)tothebackoftheConsole.
5-3 ReinstalltheConsole(RefU)totheConsoleHandlebar(RefD)
usingthescrewsremovedinStep5-1.
U
W1
W2
D
9
