Schwinn 570E - Product Specifications; Pre-Assembly Guidance

7
SPECIFICATIONS
Before Assembly
Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a
hard,levelsurface.Allowaworkoutareaofaminimum193cmx305cm(76”x120”).Besurethattheworkoutspace
youareutilizinghasadequateheightclearance,takingintoconsiderationtheheightoftheuserandthemaximumincline
of the elliptical machine.
Basic Assembly Tips
Follow these basic points when you
assemble your machine:
• Read and understand the “Impor-
tant Safety Instructions” before
assembly.
• Collect all the pieces necessary for
each assembly step.
• Using the recommended wrench-
es, turn the bolts and nuts to the
right (clockwise) to tighten, and the
left (counterclockwise) to loosen,
unless instructed otherwise.
• When attaching 2 pieces, lightly
lift and look through the bolt holes
to help insert the bolt through the
holes.
• The assembly can require 2
people.

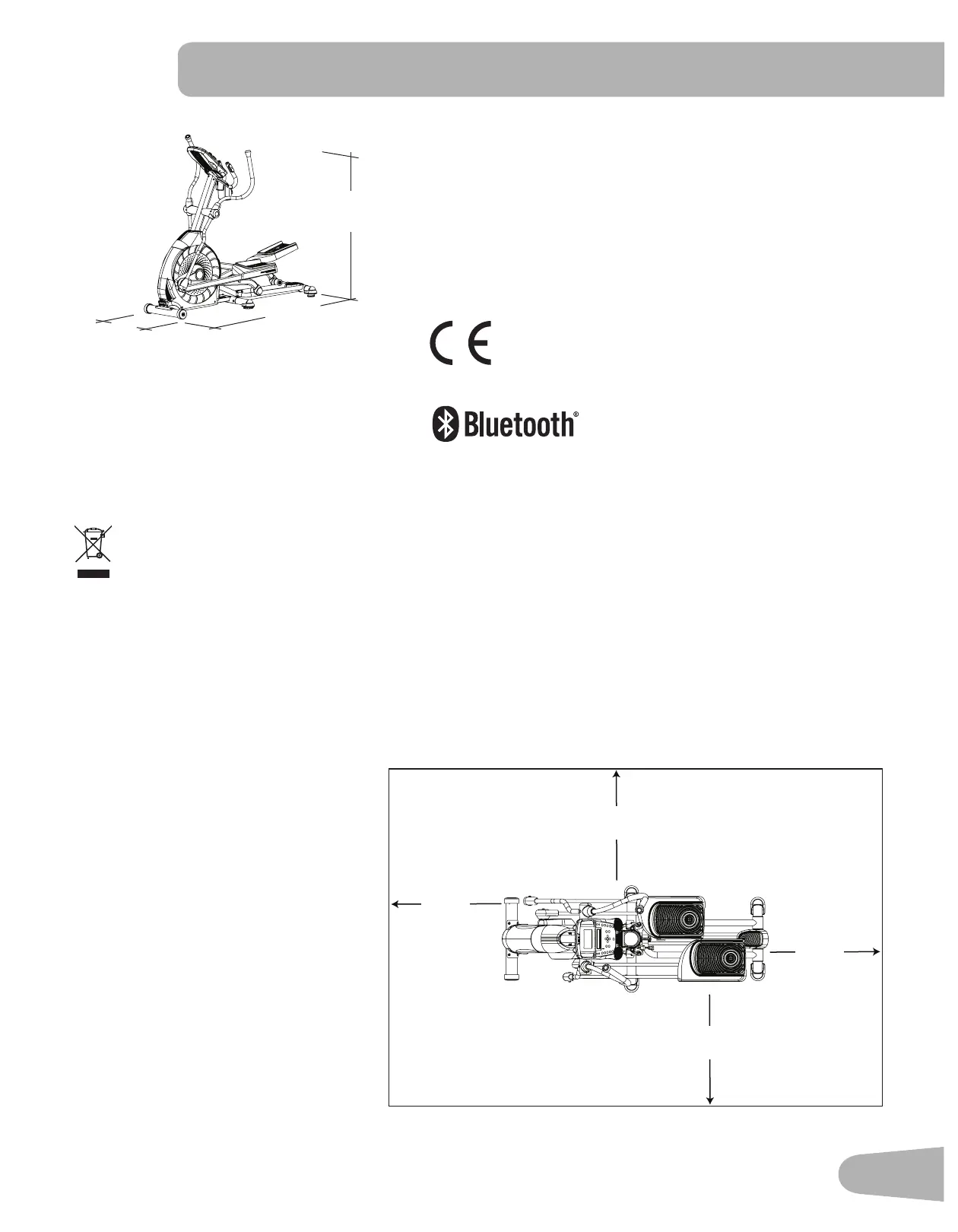

3.0m ( 118.1” )
1.93m
( 76.2” )
0.6m
( 24” )
0.6m
( 24” )
0.6m
( 24” )
0.6m
( 24” )
Maximum User Weight: 136 kg ( 300 lbs. )
Maximum Pedal Height - with full incline: 66.1 cm ( 26.0” )
Machine Weight:   76.5kg(168.7lbs.)
Total Surface Area (foot print) of equipment:
      12734.2cm
2
(1976.8inches
2
)
Power Requirements:
Operational Voltage: 220V - 240V AC, 50Hz
Operating Current: 1A
Complies with the following:
ISO20957Compliant
Connectivity:
160.5 cm
( 63.2” )
178.1 cm
( 70.1” )
71.5 cm
( 28.2” )
DO NOT dispose of this product as refuse. This product is to be recycled. For proper disposal of this product,
please follow the prescribed methods at an approved waste center.
