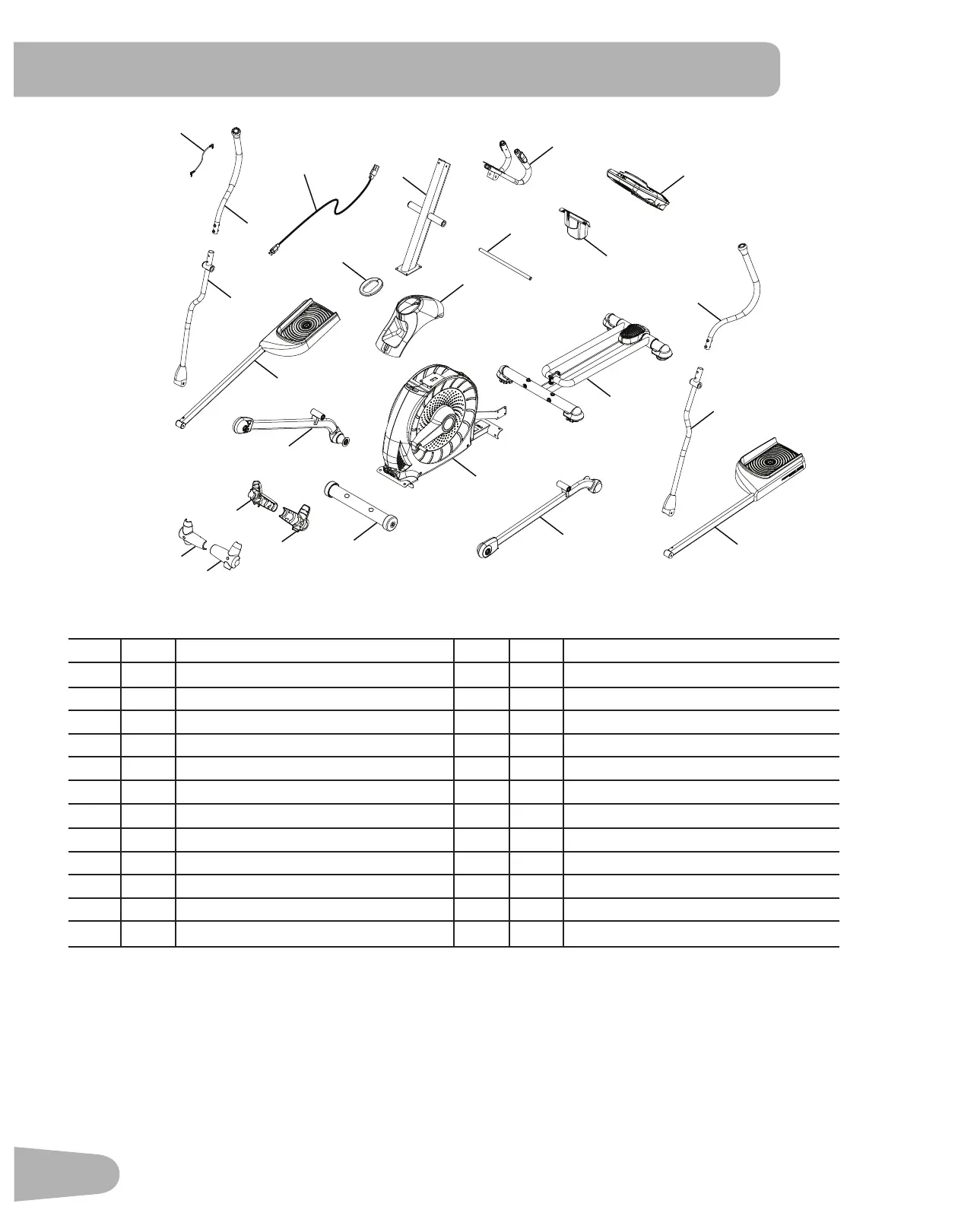

Schwinn 570E - Machine Parts Identification

8
PARTS
A decal has been applied to all right (“ R ”) and left (“ L ”) parts to assist with assembly.
Item Qty Description Item Qty Description
1 1 Console Mast 13 1 Front Stabilizer
2 1 Static Handlebar 14 2 Handlebar Shroud, Inner
3 1 Arm Pivot Rod 15 2 Handlebar Shroud, Outer
4 1 Water Bottle Holder 16 1 Right Leg
5 1 Console 17 1 Right Pedal
6 1 Upper Left Handlebar Arm 18 1 Shroud Cap
7 1 Lower Left Handlebar Arm 19 1 Lower Right Handlebar Arm
8 1 Left Pedal 20 1 Upper Right Handlebar Arm
9 1 Rail Assembly 21 1 Power Cord
10 1 Left Leg 22 1 MP3 Cord
11 1 Frame 23 1 Silicone Lubricant, bottle (not shown)
12 1 Upper Shroud
1
4
6
5
2
3
12
7
8
10
11
9
18
16
13
20
19
17
15
14
15
14
21
22
