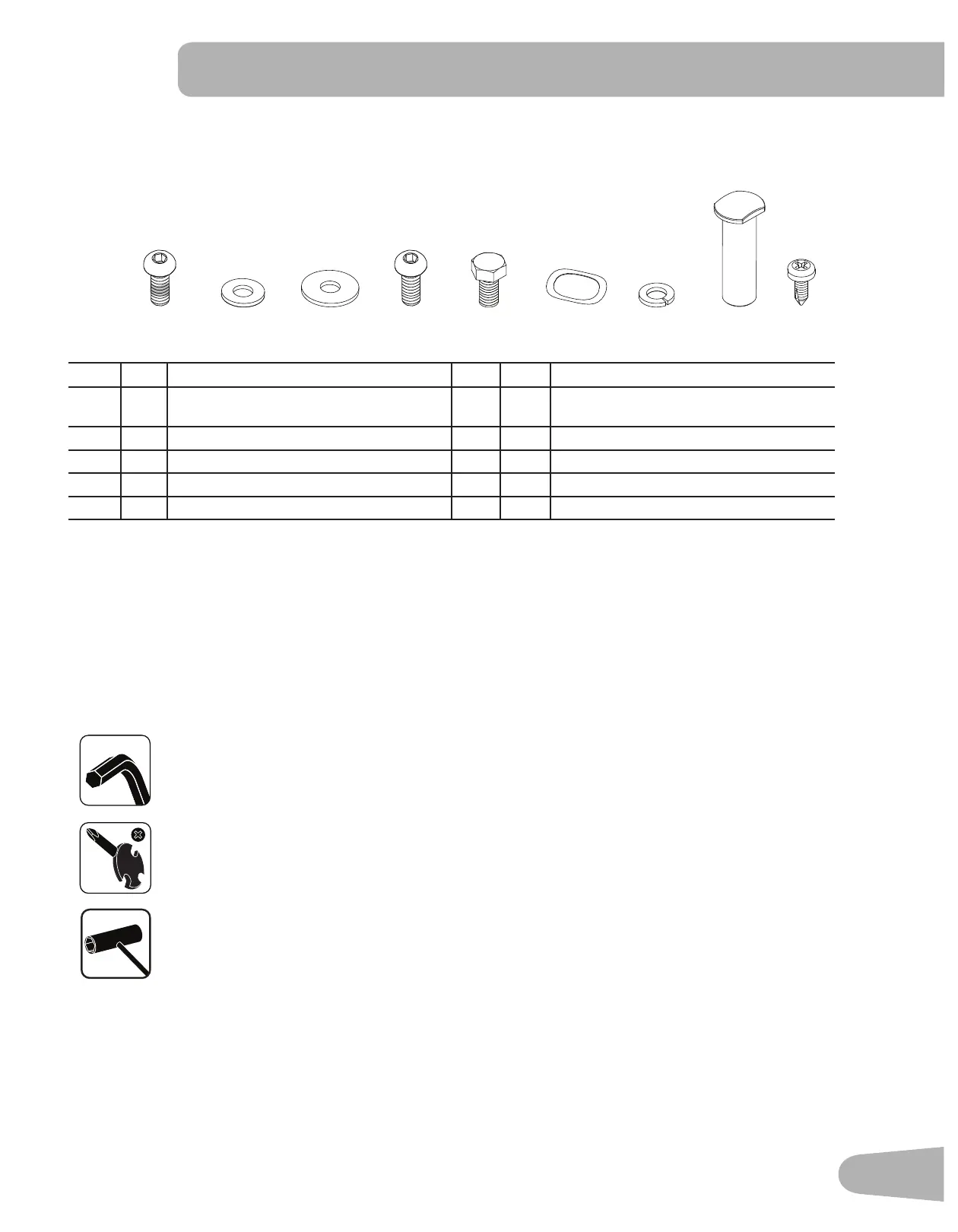

Schwinn 570E - Hardware and Tools for Assembly

9
Item Qty Description Item Qty Description
A 6 ButtonHeadHexScrew,M8x16(with
Loctite
®
adhesive)
F 6 Wave Washer
B 4 Flat Washer, M8 G 12 Lock Washer, M8
C 8 Wide Washer, M8 H 2 Pivot Sleeve
D 4 ButtonHeadHexScrew,M8x16 I 4 PhillipsHeadScrew,M5x12
E 2 HexHeadScrew,M8x20
Note: Select pieces of Hardware have been provided as spares on the Hardware Card. Be aware that there may be remain-
ing Hardware after the proper assembly of your machine.
HARDWARE / TOOLS
Tools
Included
6 mm
#2
13 mm
15 mm
19 mm
A B C D E F
G H
I
