9

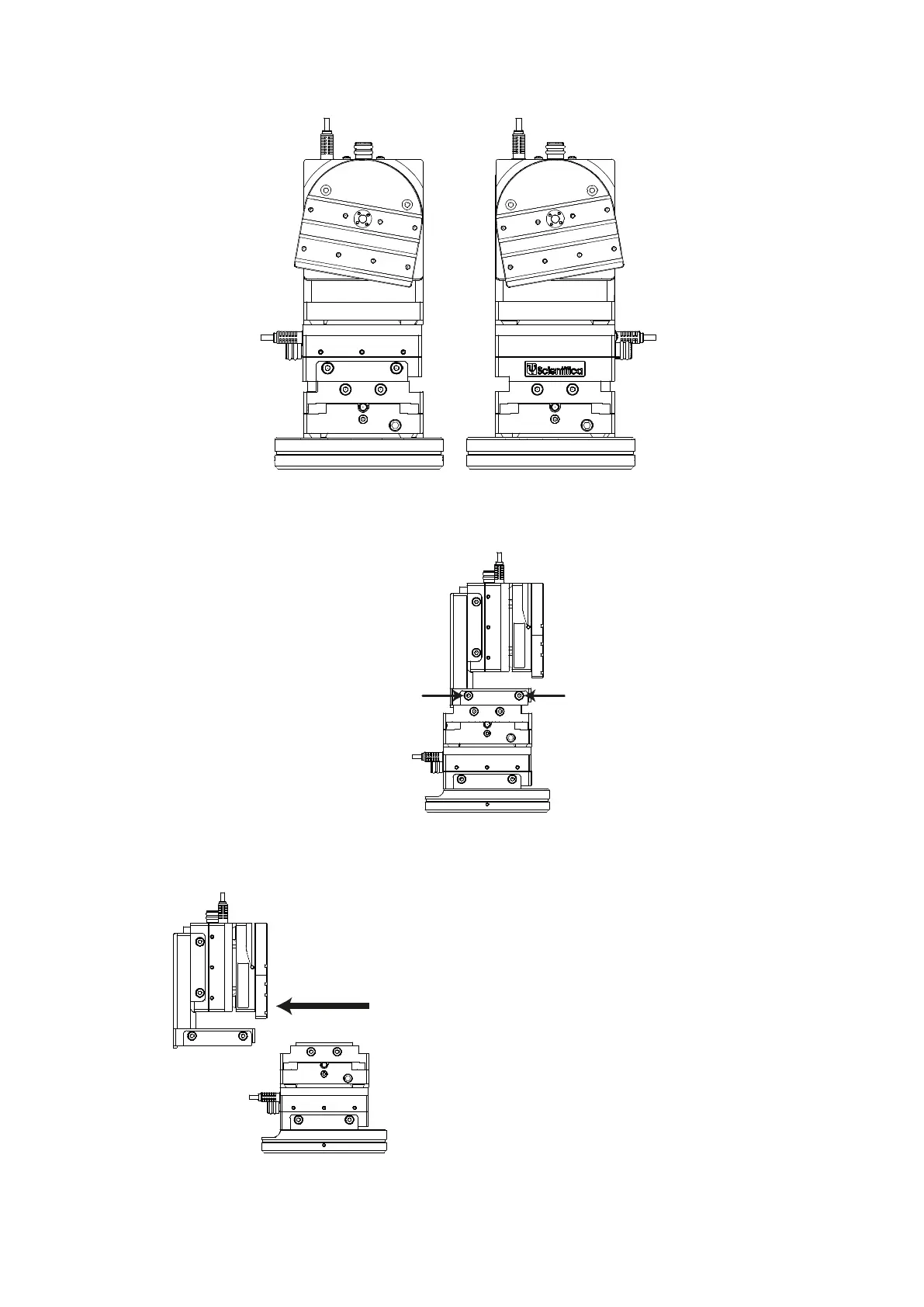

Figure B: The PatchStar, shown in left and right handed configurations
1. Loosen the dovetail screws on the lower part of the Z-axis L-bracket using a 3mm
allen key. Do not remove these screws completely.
Figure C: Left hand view, L-bracket dovetail screws indicated
2. Slide the upper part of the manipulator off the X axis (blue adjuster).
Figure D: Left hand view, Sliding the top section of the PatchStar
