21

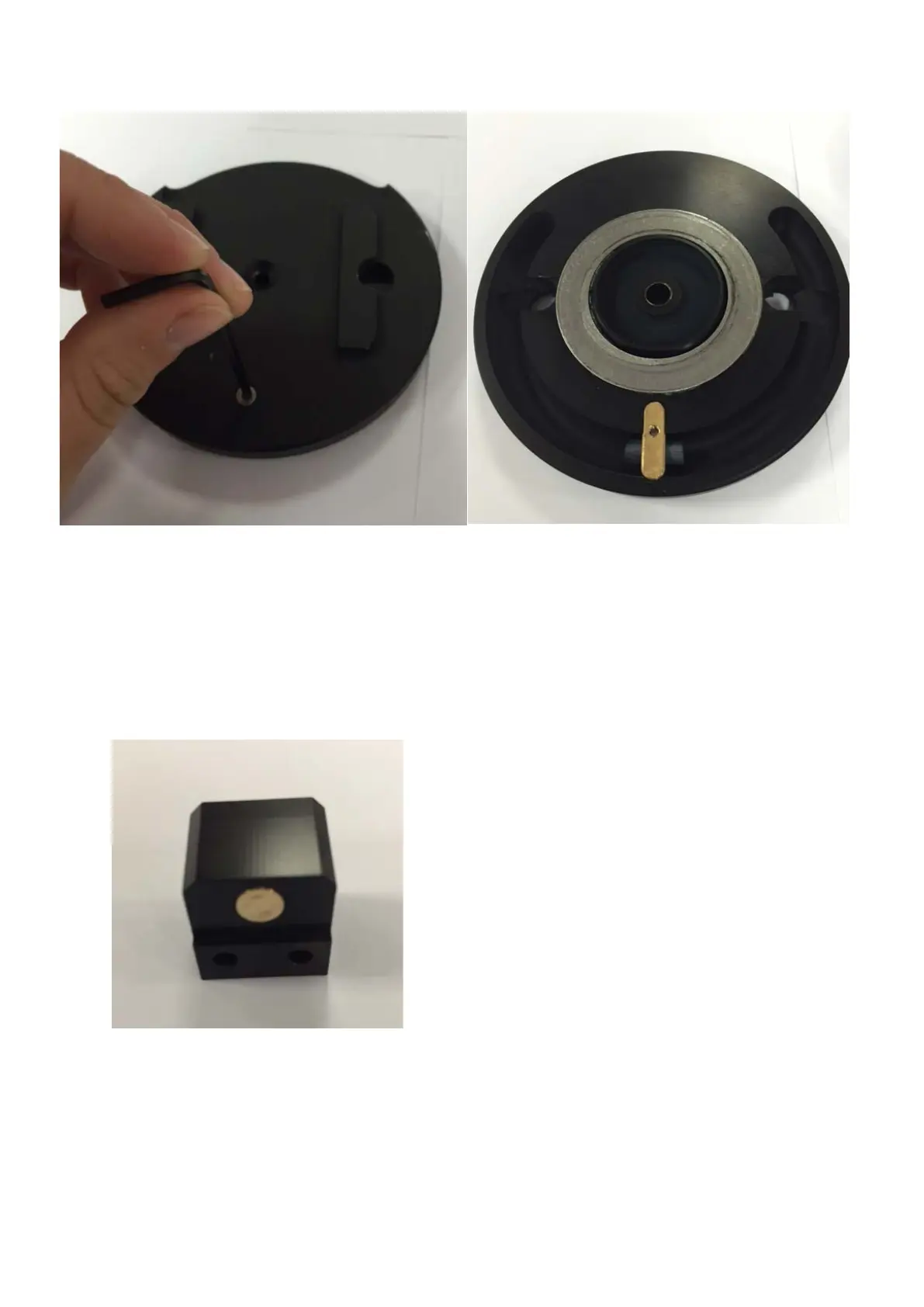

Figure X: loosen screw using 2.5mm allen key to remove and replace brass magnetic
‘stop’ for rubber variant.
Once exchanged, the top of the rotational base can be replaced and securely tightened in
place.
Locate the brass ‘cup’ and insert it into the clamp block so that the flat edge fits flush against
the inside edge of the block as indicated in figure Y.
Figure Y: correct orientation of brass cup within locking clamp
Attach the clamp block, with brass cup inserted, onto the PatchStar base using the screws
provided and a 3mm allen key. Ensure that the clamp block is placed against the solid and
full height section of PatchStar base as indicated in figure Z and that the counter sunk
section of the clamp block is facing away from the base, in order that the screws will tighten
flush into the block.
