22

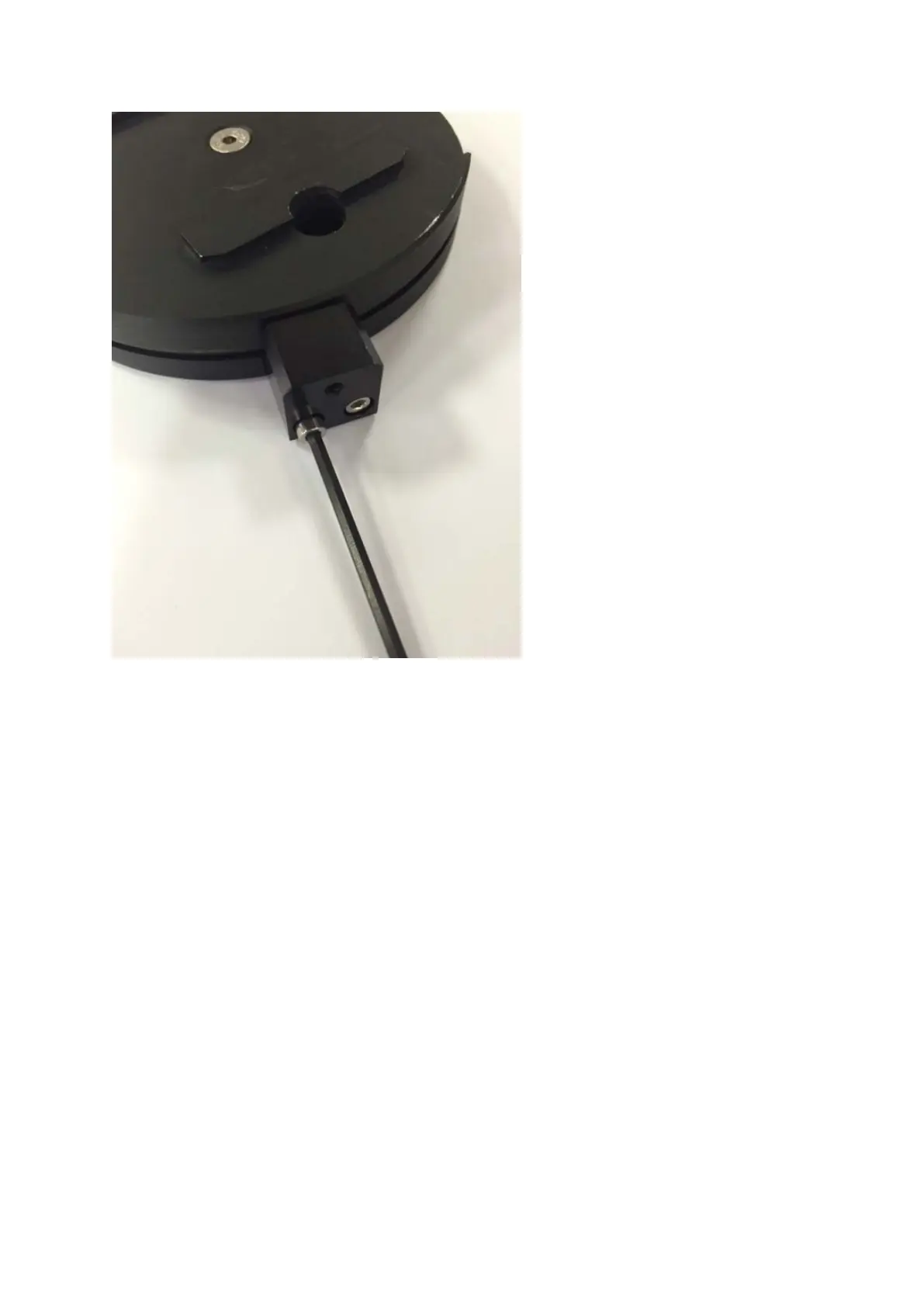

Figure Z. Attach the clamp block onto the side of the PatchStar base using the screws
provided onto the full height section of the base.
Finally insert the thumb screw locking screw into the hole provided and tighten to clamp the
base in the desired position. The rotational base can then be reattached onto he PatchStar
manipulator as described in section 3.2.1.
Rotational stops can be set (optional) as described in section 3.2.2 to aid easy repositioning
during pipette exchange. The base can then be clamped in place at the end of the stop or at
any stage during its travel be rotating the white thumb screw lock, until securely held in
place. Rotate the screw counter clockwise to release the base and reposition.
