Changzhou Sciwil E-Mobility Technology Co., Ltd.
9
th
Huashan Road, Changzhou, Jiangsu, China- 213022
Fax: +86 519-85602675 Tel: +86 519-85600675
1.1 Product Size and Assembly
1.1.1 Product Name and Model
Product Name: E-Bike Display
Product Model: G518

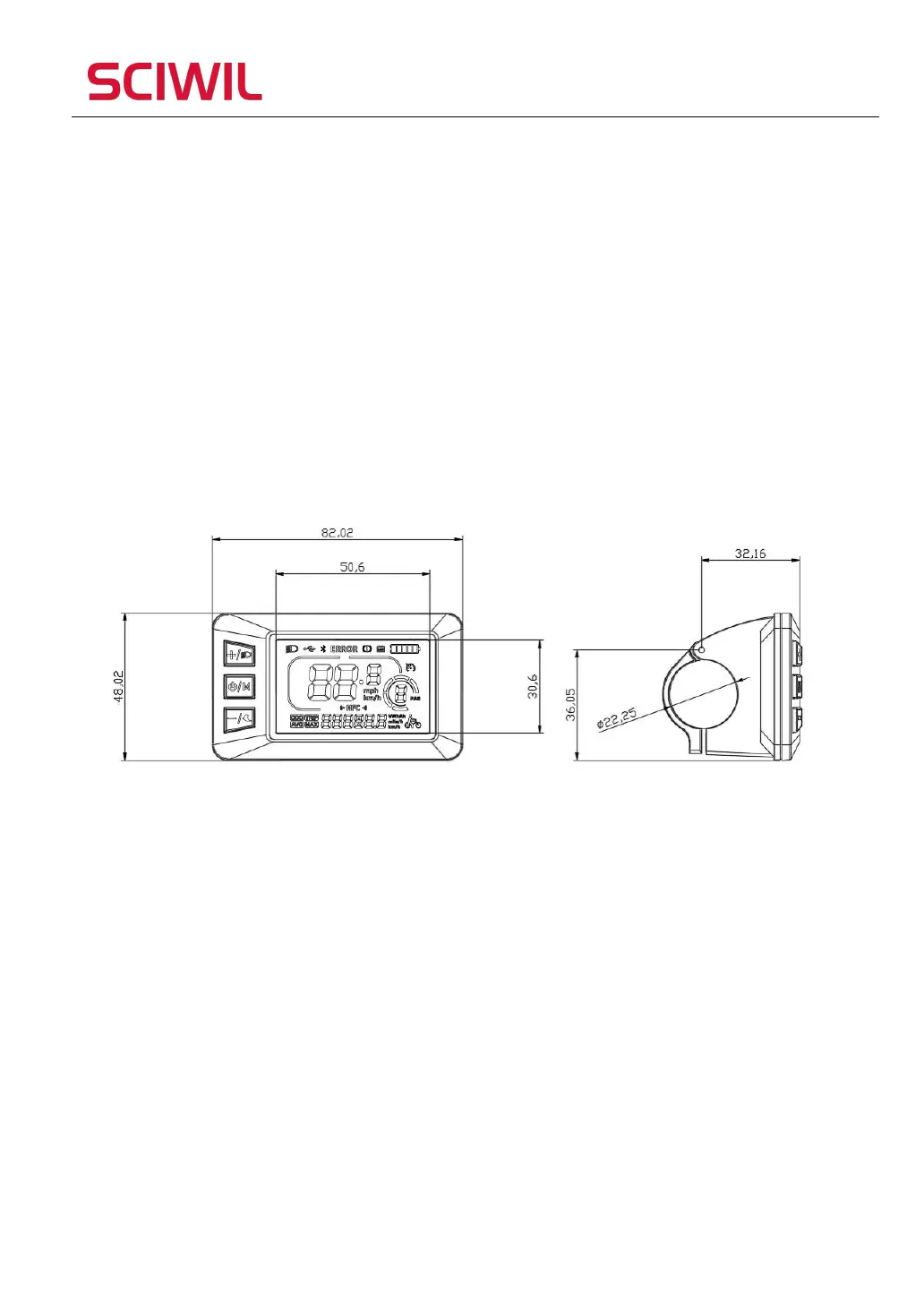

1.1.2 Exterior Look and Size
Front View Side View
1.1.3 Assembly
1.1.3.1 Open the holder ring/rubber spacer of the display and fix the display on the
handlebar, adjust it to a proper facing angle. Use a M4 Hex Wrench to fix and
tighten the screws. Standard fixing torque: 0.8N·m.
*Damage due to extra fixing torque is not covered by warranty.
To Next Page
