SCM CUBO2 AQUA - Serial Connections and Wirings

EN
OEM Manual – CUBO
2
AQUA
Pag. 22-EN UMT/WG T MT Rev3.0 – 08/10/2021
22
9.2 Serial connections and wirings

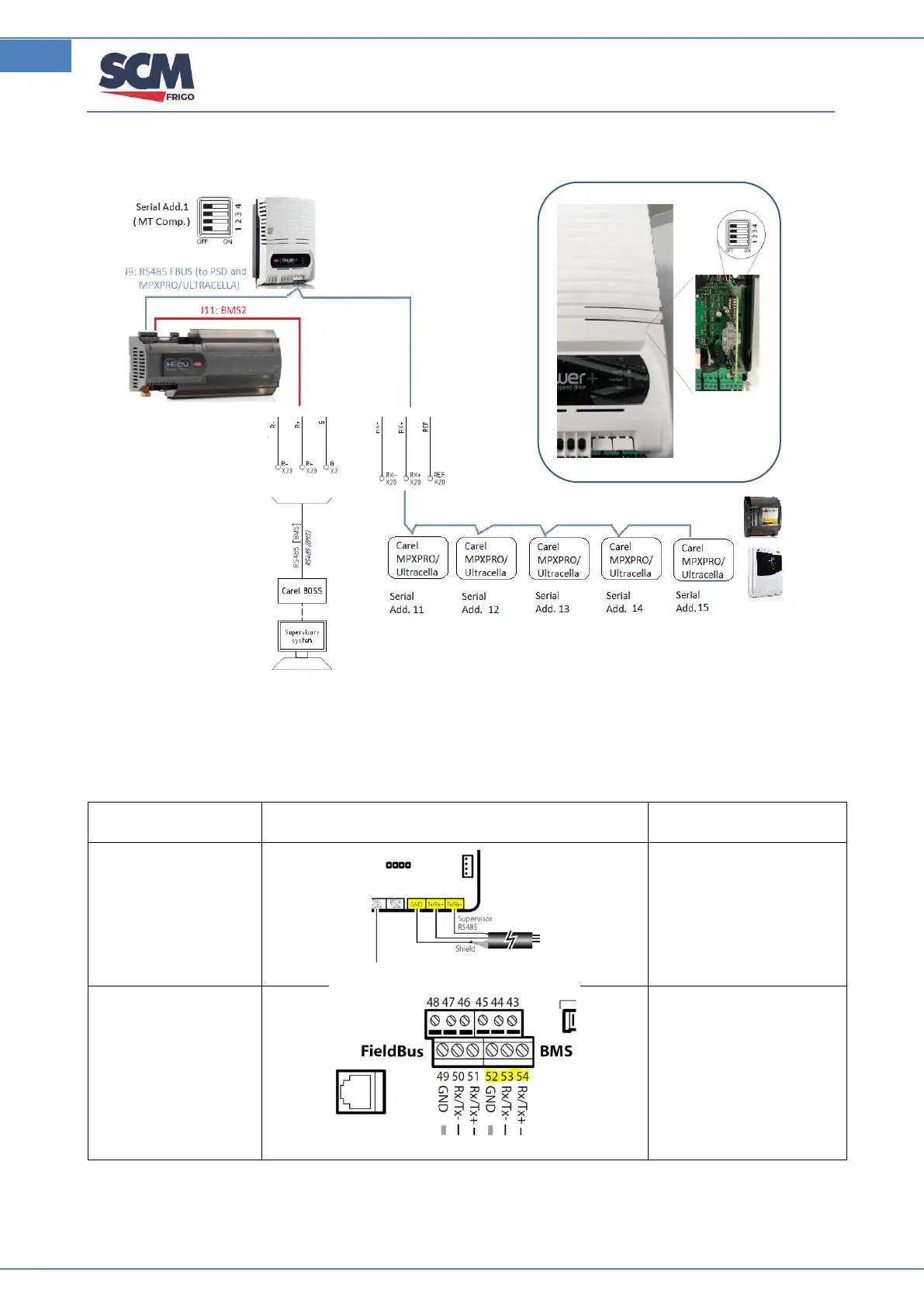

MPXPRO/ULTACELLA connector to use for the serial connection with HECU (RX-, RX+, REF)
Carel Controller
Connection Port
Note
MPXPRO
Terminals:
GND, Tx/Rx+, Tx/Rx-
Modbus, 19200bps
ULTRACELLA
BMS
Terminals 52, 53, 54
Modbus, 19200bps
