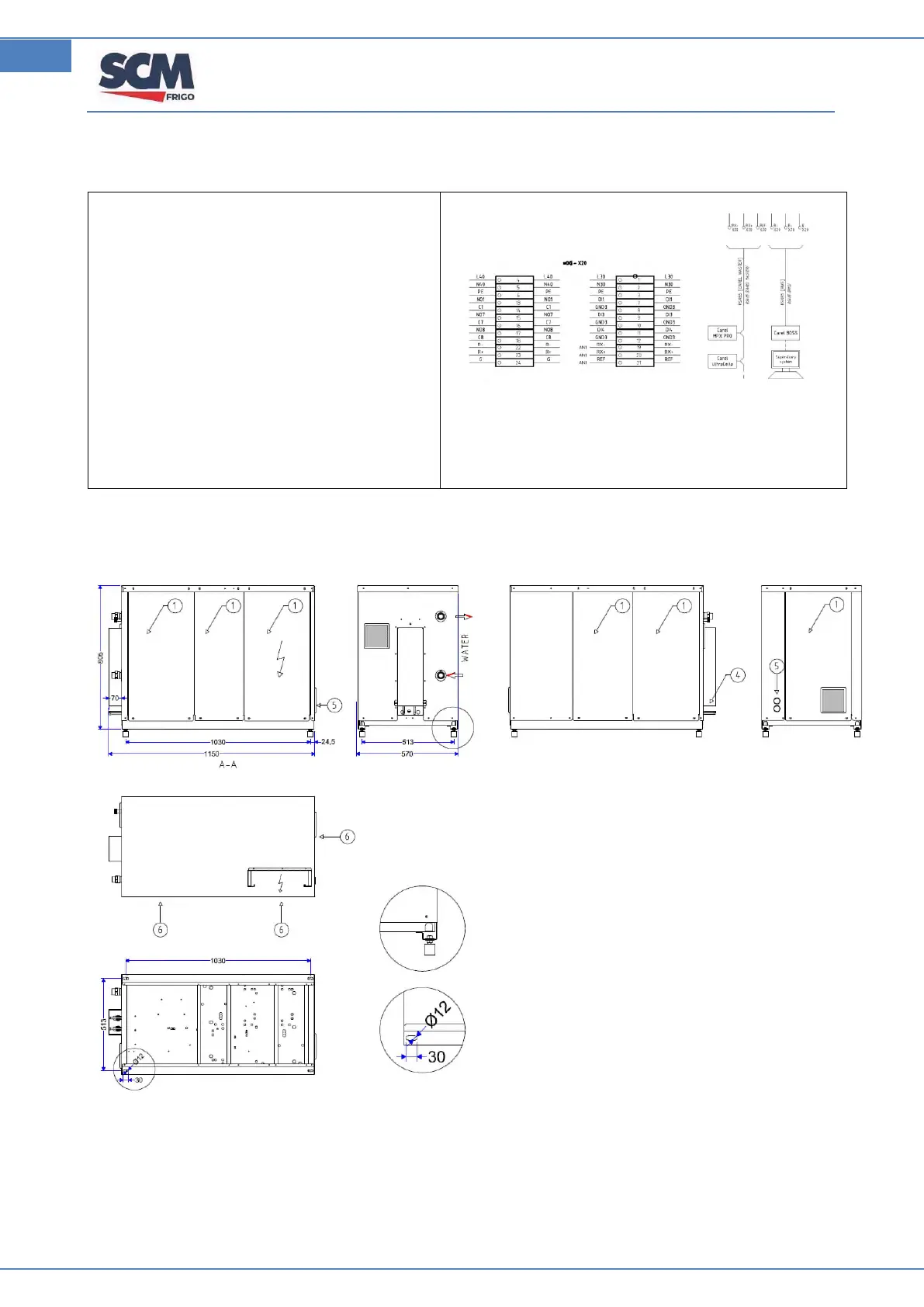

16 Terminals blocks connection
 BMS serial connection, use terminal
blocks:
R-; R+; G.
 On/off remote, use terminal blocks:
DI1; GND3 (Remove bridge also
present).
 Remote digital alarm, use terminal
blocks:
NO1; C (closed in case of alarm).
 CAREL Remote evap. lan, use terminal
blocks:
Rx-; Rx+; REF.
 Adiabatic ramp power supply, use
terminal blocks: L30; N30; PE.
17 Dimensional drawing
