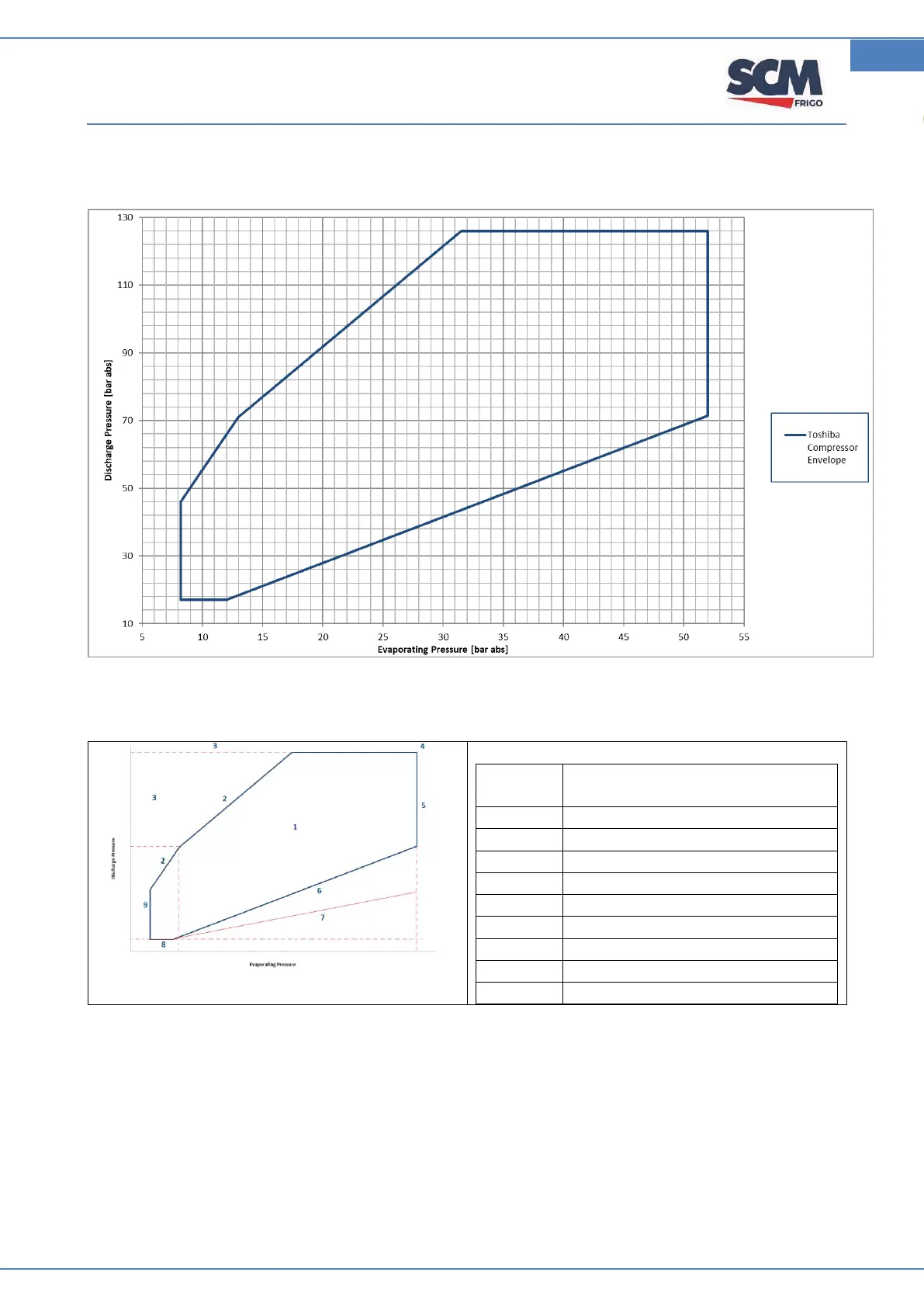

Compressor envelope zone consists in the safety area (Suction/discharge pressure) where compressor is
allowed to run without problem.
Envelope
Zone #
Description
1
Inside envelope
2
High compressor ratio
3
High condensing pressure
4
High current
5
High suction pressure
6
Low compressor ratio
7
Low delta pressure
8
Low condensing pressure
9
Low suction pressure
