C2648 Prodigy and Prodigy Plus Service Manual
January 2015
Page 54

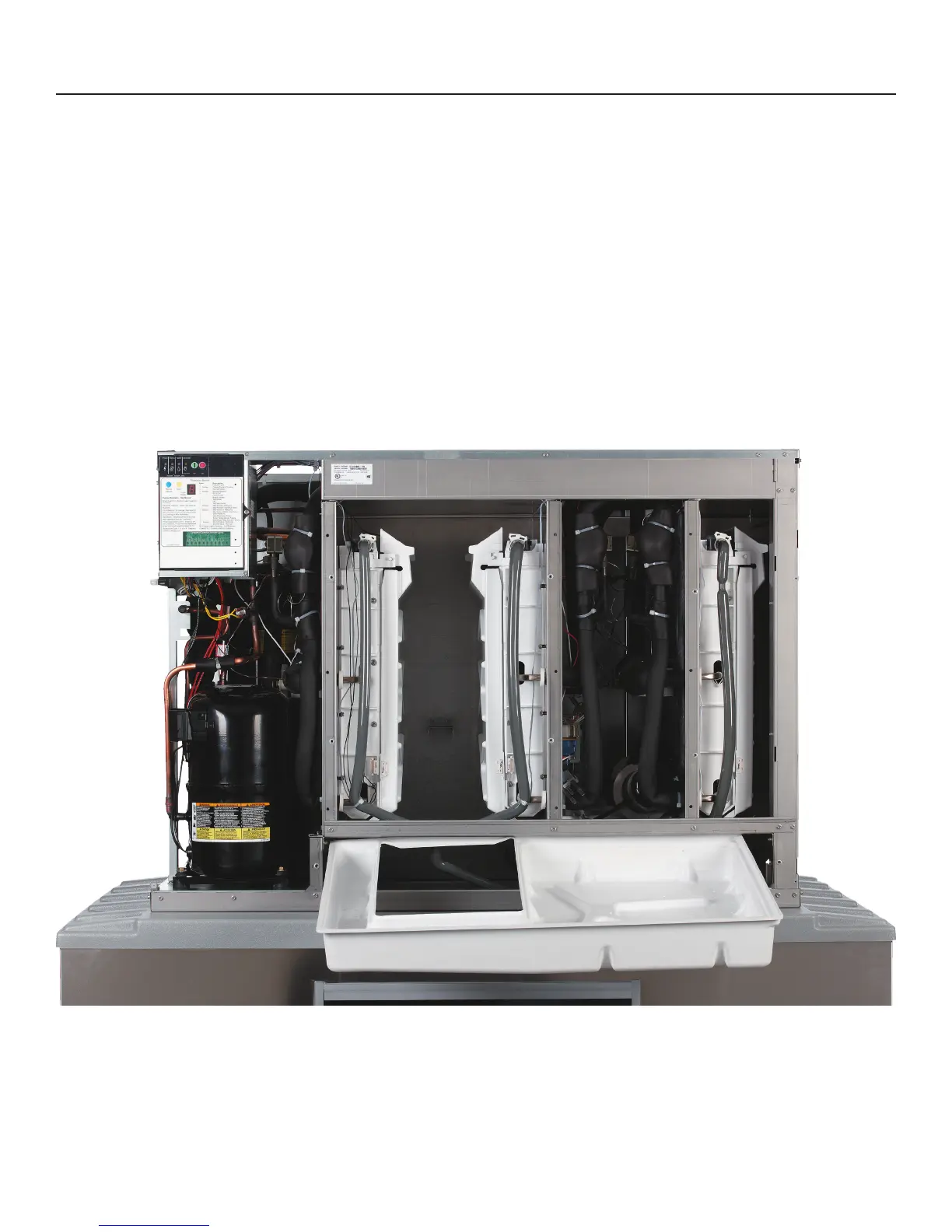

Reservoir Removal
The reservoir may be removed from the cabinet if needed.
1. Drain water by holding in the Clean button repeatedly until no more water will drain.
2. Disconnect electrical power.
3. Twist counterclockwise and lift water pumps up and tip to one side.
4. Remove front water reservoir cover plate, set aside.
5. Remove sump cover and water level sensor, set sump cover aside.
6. Pull water reservoir forward; tip up and out of the machine.
