Harvest Assist
1. Remove front panel.
2. Push and release Manual Harvest button, when unit shuts off go to next step.
3. Disconnect electrical supply
4. Unplug wires from solenoid or motor
Do steps 5 and 6 if the harvest assist is a solenoid between plates 1 and 2. Both must be replaced if either has
failed.
5. Remove screws holding both solenoid coils to upper bracket and remove upper bracket.

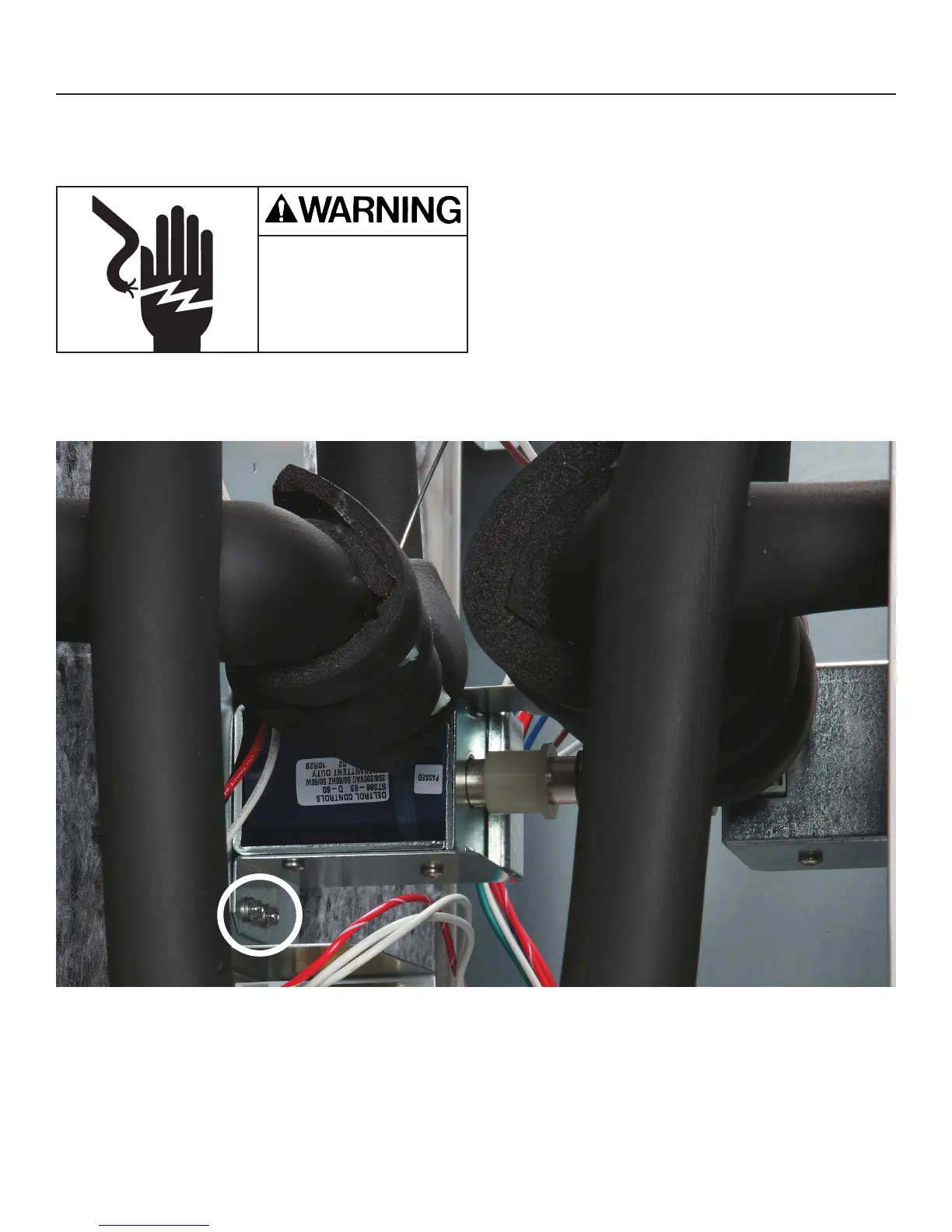

6. Remove bottom two screws holding bracket and solenoid to cabinet (see circled area). Remove coil from
unit.
7. Remove screws securing motor or solenoid to wall and remove it from the machine.
8. Install new motor harvest assist per its directions.
Electrical Shock Hazard
Disconnect electrical
power before beginning
