3 Installation
Don’t forget to set thje exact transceiver-type using the YType command! Refer to
chapter 13.20 on page 175.
3.7 GPS
The PTC-IIIusb uses a 3-pole screw terminator to connect to a GPS reciever. This input is
compatible with 5V-TTL and RS232/V24 signal levels. This pins are assignes as follows:

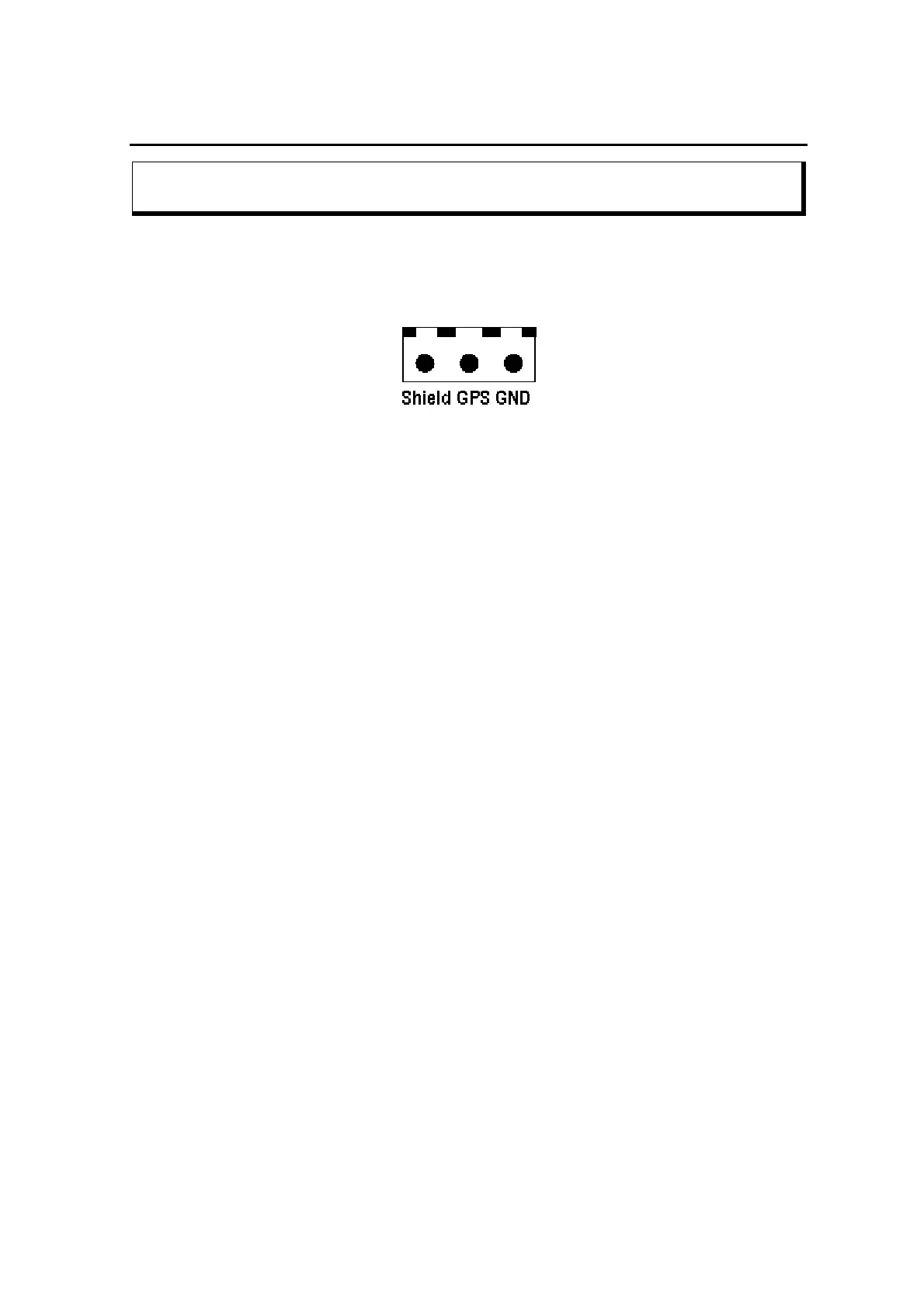

Figure 3.6: GPS connector
The PTC-IIIusb expects GPS data with 4800 baud and in NMEA format.
