Operation & Maintenance Manual──LG946L Wheel Loader
52
Gauges Figure3-2in this chapter.
Turn Indicator Lamp: The lamp will come on if the steering switch is connected,
meanwhile, the steering lamp will come on. The left indicator lamp will come on if turning to
left, and the right indicator lamp will come on if turning to right.
Pre-heat Indicator Lamp: The lamp will come on if start switch is turned to preheat
position when machine is equipped with cold start equipment; the lamp will be off if start switch
is turned to other position.
Parking Brake Indicator Lamp: If the brake air pressure is normal, the lamp will come
on when the brake valve manual control handle is pulled up (or the parking brake switch is
pushed down). The lamp will go off when the brake valve manual control handle is pushed down
(or turn the parking brake switch to spring back); the lamp will also come on if the brake air
pressure is low.
Charging Indicator Lamp: The lamp will come on if the start switch is turned on. It will
go off immediately after the engine is started. Otherwise it means there is some problem with
storage battery. Please examine and repair it.
High Beam Indicator Lamp: The lamp will come on if the high beam is used in the front
head light. The lamp will go off if the low beam is used in the front head light or the front head
light is off.
Oil Pressure Warning Lamp: The lamp will come on immediately if the start switch is
turned on. It will go off immediately after the engine is started. Otherwise it means the level of
lubricant is too low or there is some problem with the lubricant system. Then shut the engine and
check it.
Low Brake Air Pressure Alarm Lamp: The lamp will come on for a warning if the brake
air pressure is below 0.4MPa.
Gearbox Oil Pressure Alarm Lamp: The lamp will come on for a warning if the brake air
pressure is below 1.1MPa.

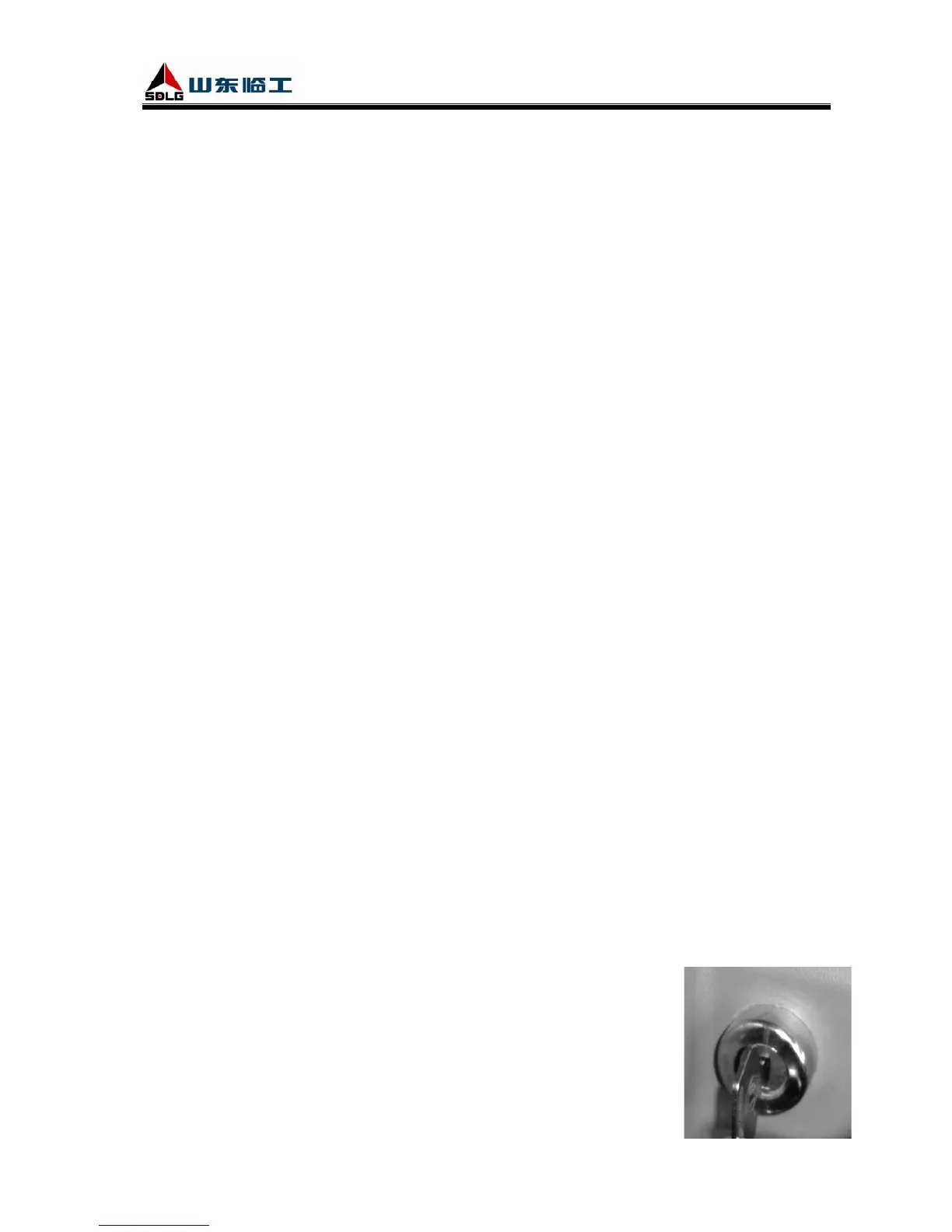

1.2.2 Switch
z Starting Switch
This switch is used for starting or shutting down the electric system
and the engine. Refer to 1.1 Control Systems and Gauges
Figure3-1、 3-2 and3-3
in this chapter.
HEAT Position
This position is used for the engine pre-heating position of cold-start
To Next Page
