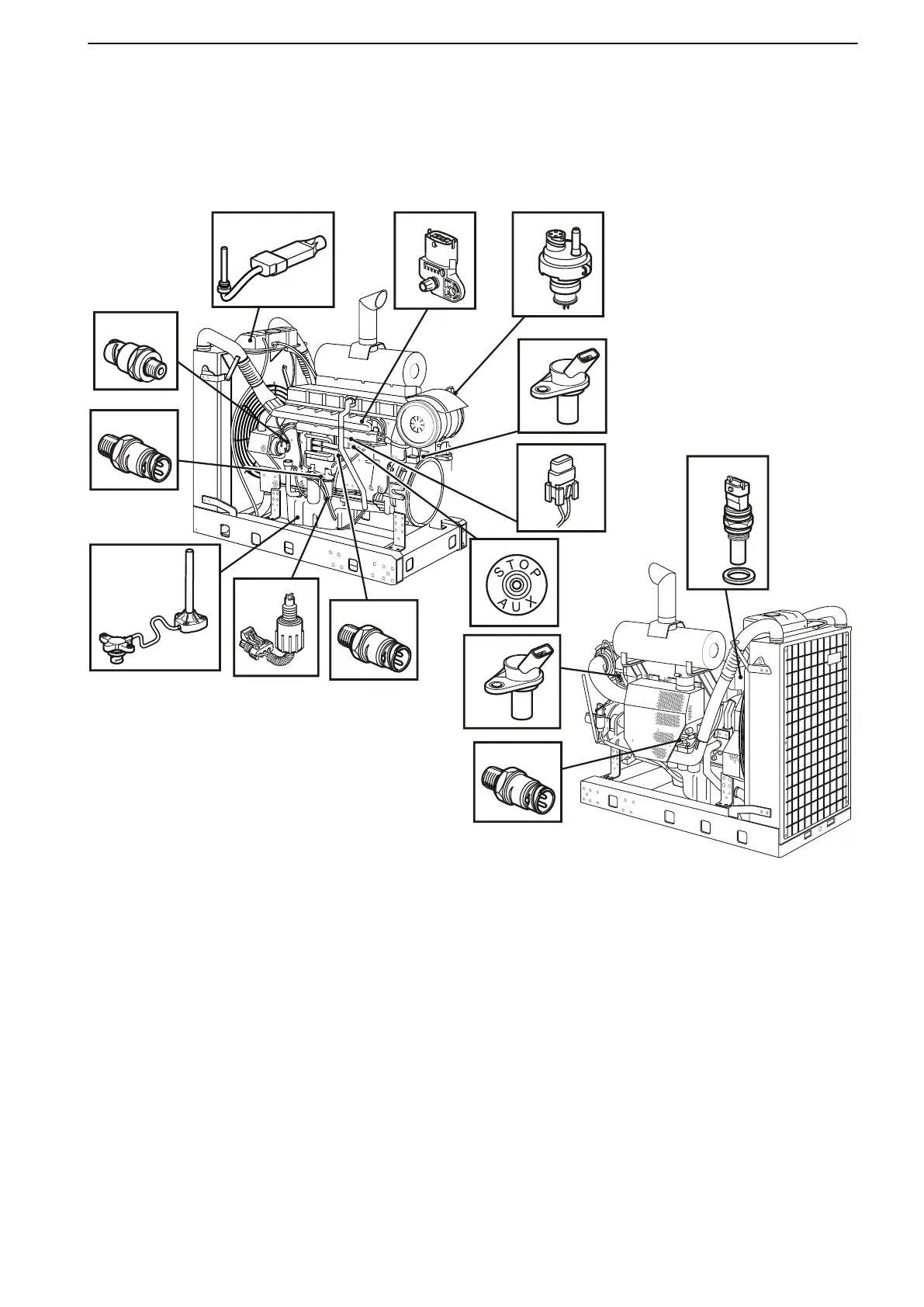

Location of Sensors
TAD1640GE, TAD1641GE, TAD1641VE,
TAD1642GE, TAD1642VE, TAD1643VE,
TAD1650GE, TAD1651GE
6
9
1
2
3
4
5
8
11
12
14
13
10
7
P0002058
1 Coolant level sensor, in expansion tank 8 Water in fuel sensor
2 Charge air pressure and temperature sensor 9 Oil level and temperature sensor
3 Air filter indicator 10 Fuel pressure sensor
4 Flywheel position and engine speed sensor 11 Crankhouse pressure sensor
5 Fuse 12 Coolant temperature sensor
6 Aux stop 13 Piston cooling pressure sensor (not TAD1650/51GE)
7 Oil pressure sensor 14 Camshaft position sensor
Maintenance
7748681 12-2011 55
