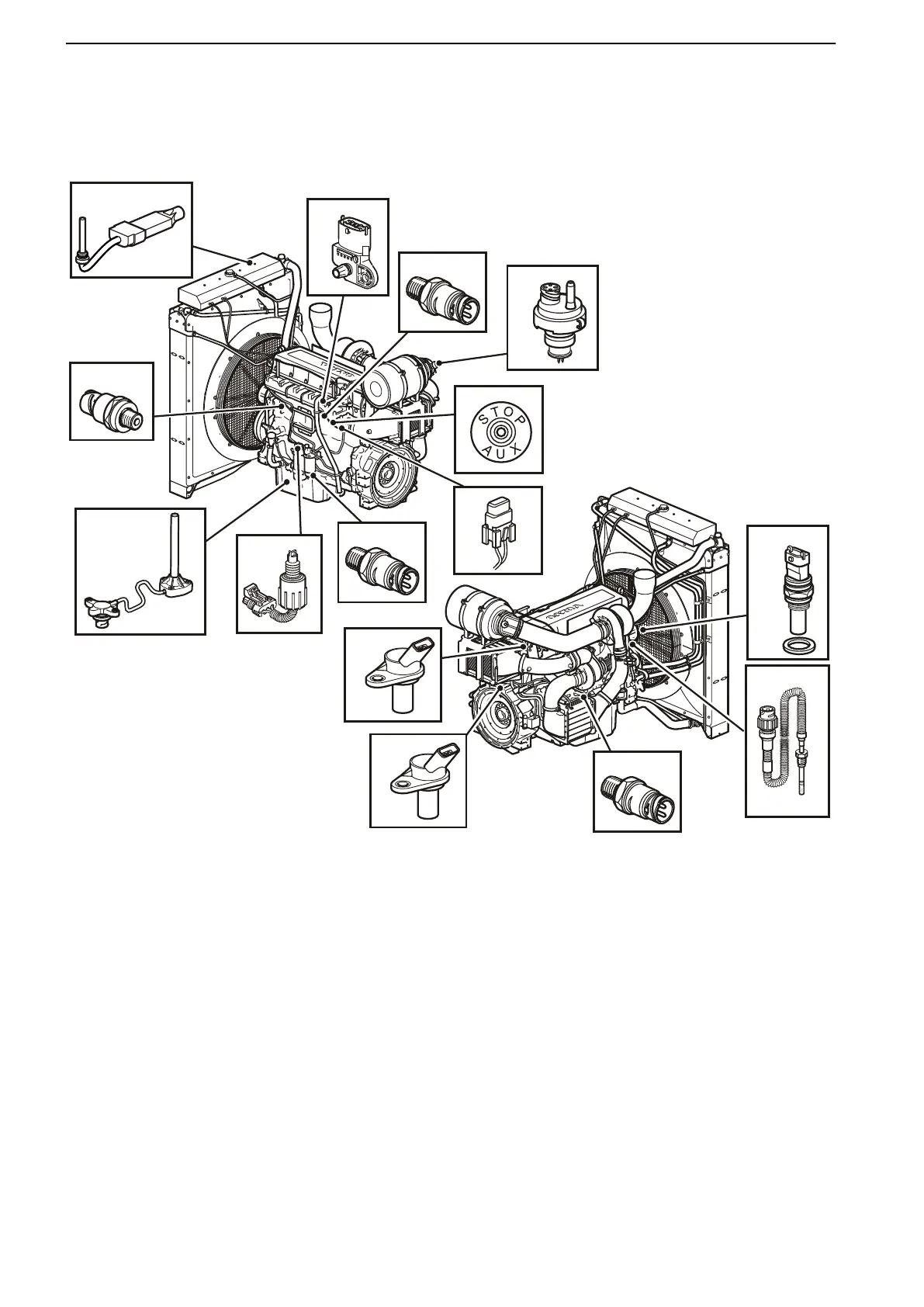

Location of Sensors
TWD1643GE
P0002059
15
14
13
11
12
1
2
3
4
5
10
9
8
7
6
1 Coolant level sensor, in expansion tank 9 Oil level and temperature sensor
2 Charge air pressure and temperature
sensor
10 Crankhouse pressure sensor
3 Oil pressure sensor 11 Coolant temperature sensor
4 Airfilter indicator 12 Exhaust temperature sensor
5 Aux stop 13 Piston cooling pressure sensor
6 Fuse 14 Flywheel position and engine speed sensor
7 “Water in fuel” sensor 15 Camshaft position sensor
8 Fuel pressure sensor 16 Solenoid valve, drainage, water trap (optional), not shown
in illustration
Maintenance
56 7748681 12-2011
