Location of Sensors
TAD1650VE
7
2
3
6
11
P0005187
6
1
5
12
8
9
10
4

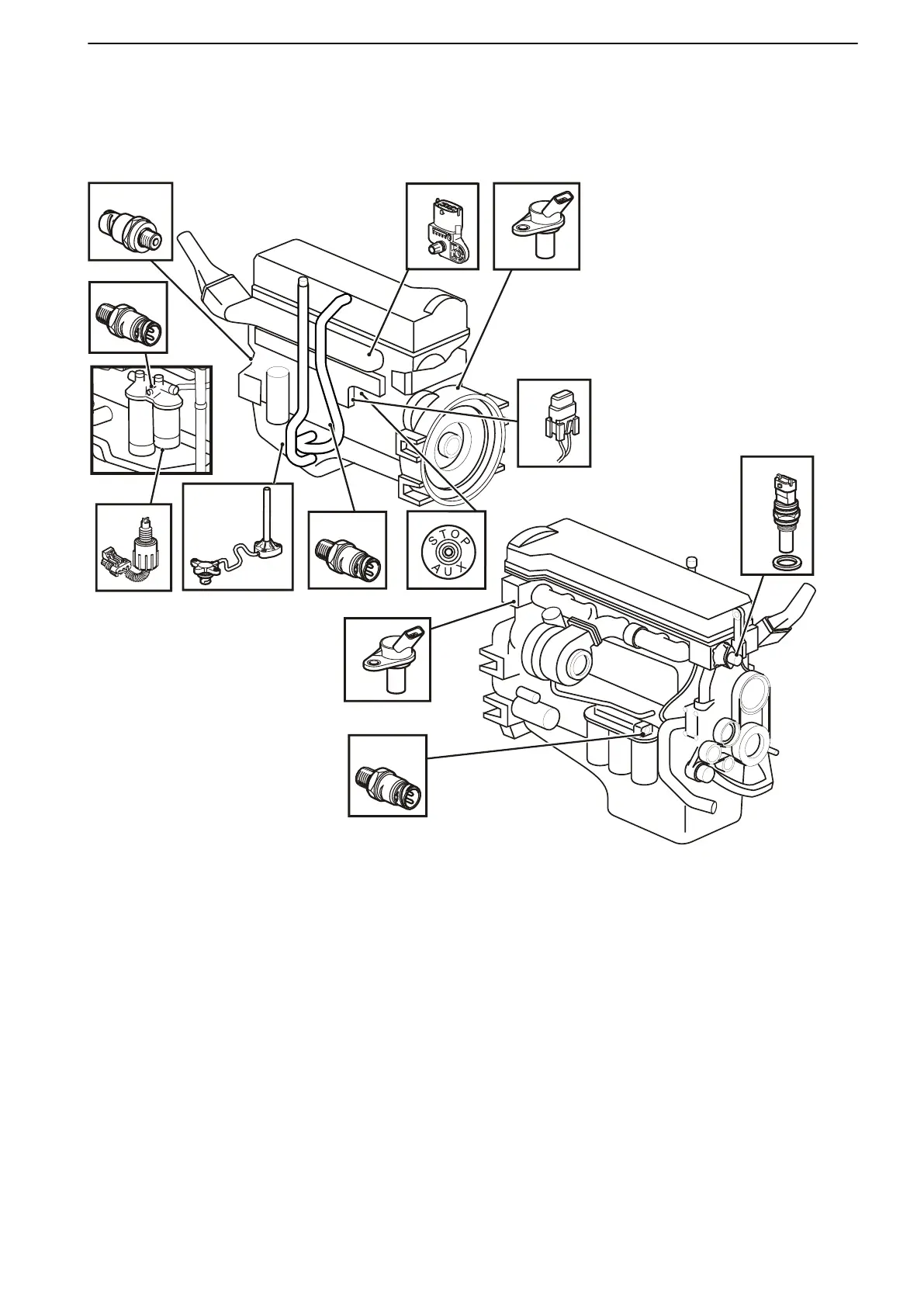

1 Crankhouse pressure sensor 7 Oil level and temperature sensor
2 Charge air pressure and temperature sensor 8 Water in fuel sensor
3 Flywheel position and engine speed sensor 9 Fuel pressure sensor
4 Fuse 10 Coolant temperature sensor
5 Aux stop 11 Piston cooling pressure sensor
6 Oil pressure sensor 12 Camshaft position sensor
