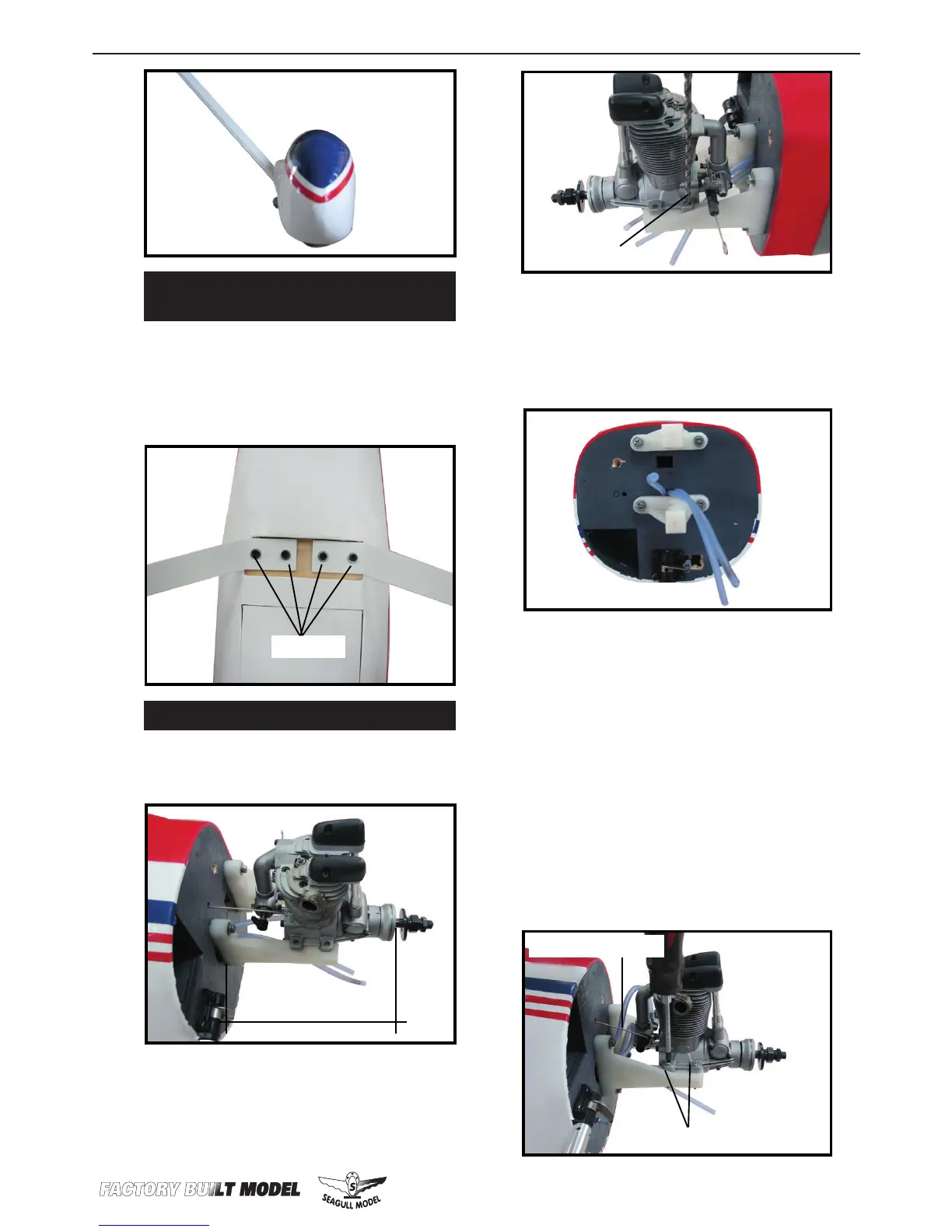

INSTALLING THE MAIN LANDING
GEAR.
1) e blind nuts for securing the landing
gear are already mounted inside the fuselage.
2) Using the hardware provided, mount the
main landing gear to the fuselage.
MOUNTING THE ENGINE.
1) Position the engine with the drive washer
(150mm) forward of the rewall as shown.
2) Use a pin drill and 4mm drill bit to drill a
small indentation in the mount for the en-
gine mounting screw.
4x20 mm
150mm
3) Use a drill to drill the four holes in the
engine mount rails.
4) On the re wall has the location for the
throttle pusshrod tube (pre-drill).
5) Slide the pushrod tube in the rewall and
guide it through the fuel tank mount. Use
medium C/A to glue the tube to the rewall
and the fuel tank mount.
6) Connect the Z-bend in the 600mm throt-
tle pushrod to the outer hole of the carbure-
tor arm.
7) Slide the throttle pushrod wire into
the tube. Position the engine between the
mounts. Use four M4x30mm machine
screws to secure the engine to the mount as
shown.
4 mm
Pushrod tube hole.
Machine screw M4x30mm
Pushrod tube hole.
