Elevator servo.
Rudder servo.
.
.
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should ow
through easily.

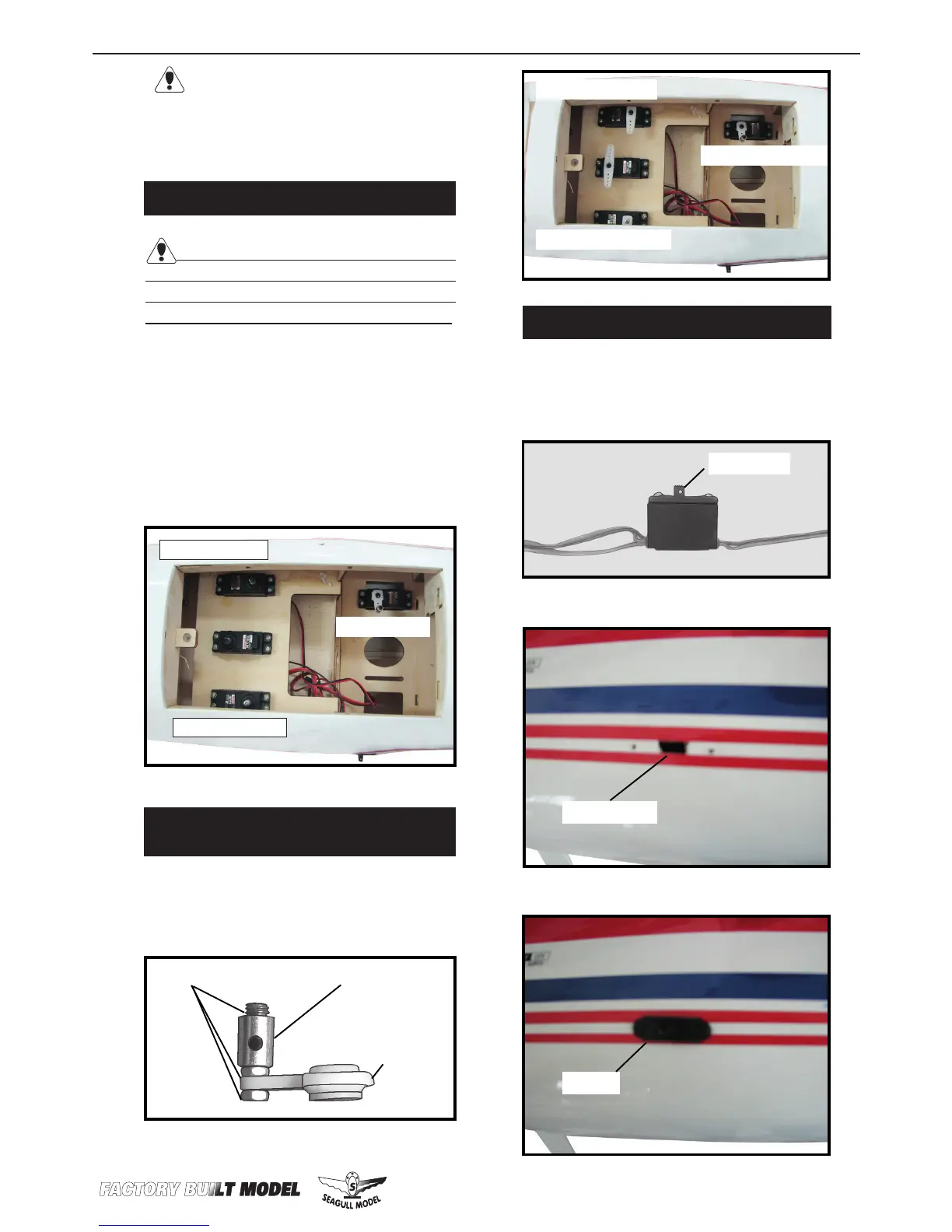

INSTALLING THE FUSELAGE SERVOS.
Because the size of servos dier, you may
need to adjust the size of the precut opening
in the mount. e notch in the sides of the
mount allow the servo lead to pass through.
1) Install the rubber grommets and brass
collets onto the throttle servo. Test t the
servo into the aileron servo mount.
2) Secure the servos with the screws provid-
ed with your radio system.
rottle servo.
THROTTLE SERVO ARM INSTALLA-
TION.
Install adjustable servo connector in the
servo arm as same as picture below:
Loctite secure.
Adjustable Servo
connector.
Servo arm.
1 PCS
Rudder servo arm.
rottle servo arm.
Elevator servo arm.
INSTALLING THE SWITCH.
Install the switch into the precut hole in
the side, in the fuselage.
3/32” Hole.
Trim and cut
Switch
