Seagull Models DHC-1 Chipmunk - Fuselage Servo and Switch Installation

13
Elevator servo arm .
INSTALLING THE RECEIVER SWITCH.
Install the switch into the precut hole in
the side, in the fuselage.
Rudder servo arm.
rottle servo arm.
2) Secure the servos with the screws pro-
vided with your radio system.
Rudder servo.
rottle servo.
.

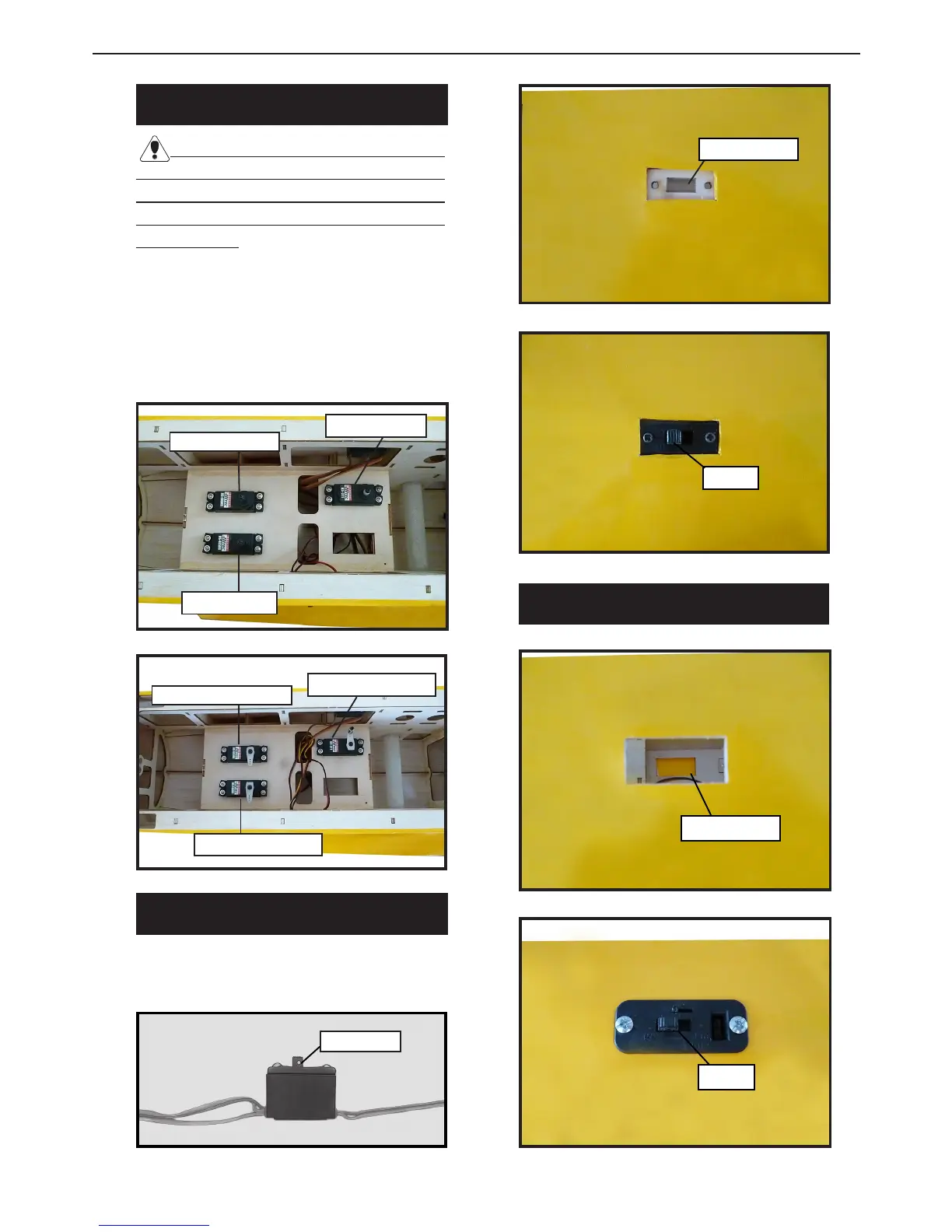

INSTALLING THE FUSELAGE SERVOS.
.
Because the size of servos dier, you
may need to adjust the size of the precut
opening in the mount. e notch in the
sides of the mount allow the servo lead to
pass through.
1) Install the rubber grommets and brass
collets into all servos. Test t the servos
into the fuselage servo mounts.
3/32” Hole.
Elevator servo.
.
Switch.
INSTALLING THE ENGINE SWITCH.
Trim and cut.
Switch.
Trim and cut.
