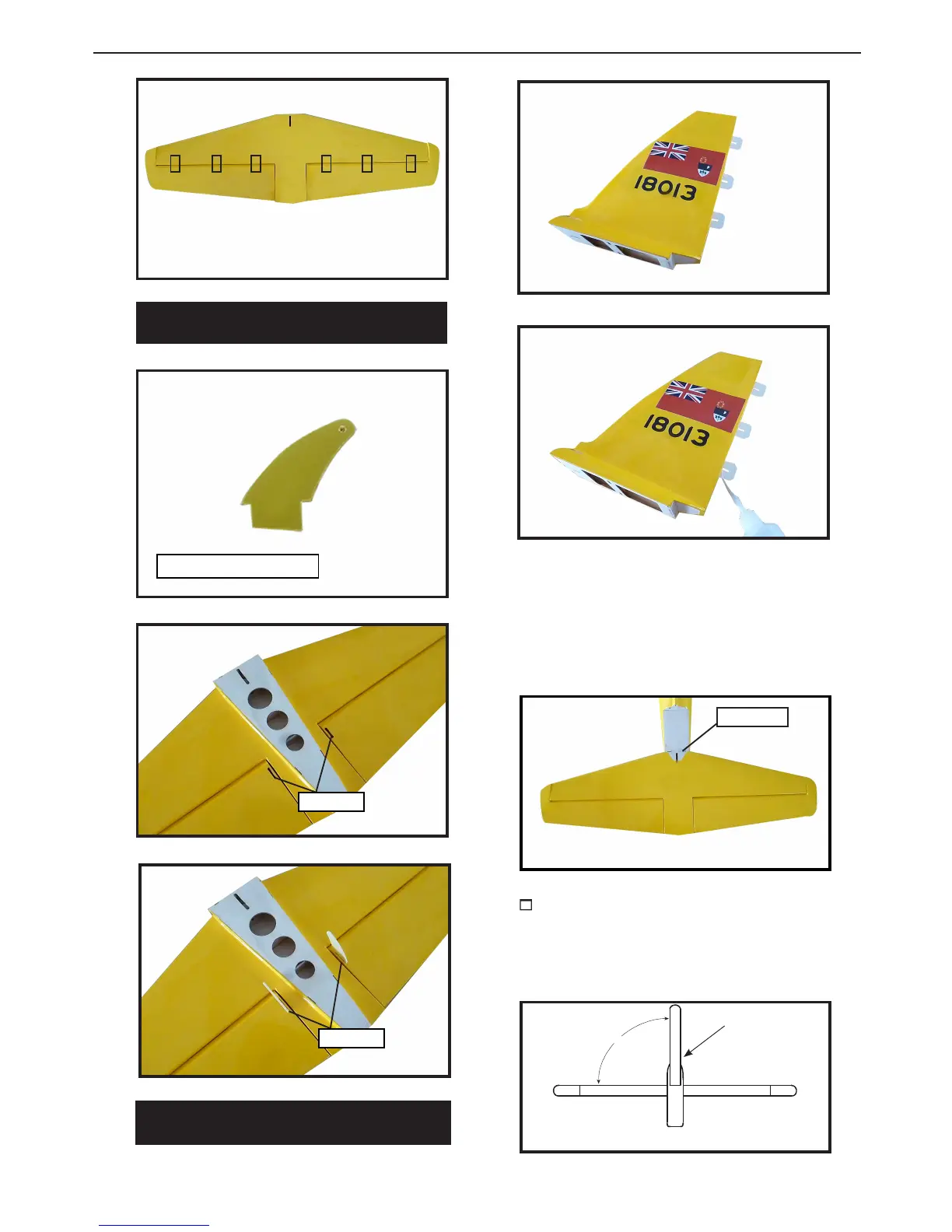

INSTALLING VERTICAL STABILIZER
INSTALL ELEVATOR CONTROL HORN.
Fiberglass control horn
Epoxy.
Epoxy.
1) While holding the vertical stabilizer
rmly in place, use a pen and draw a
line on each side of the vertical stabilizer
where it meets the top of the fuselage.
90º
Vertical
Stabilizer.
Horizontal
Stabilizer.
FillE poxy.
2) Slide the vertical stabilizer back in place.
Using a triangle, check to ensure that the ver-
tical stabilizer is aligned 90º to the horizontal
stabilizer.
