EDGE 540 Instruction Manual
16
M2 lock nut.
Snap keeper.
M2 clevis.
Repeat the procedure for the other wing.

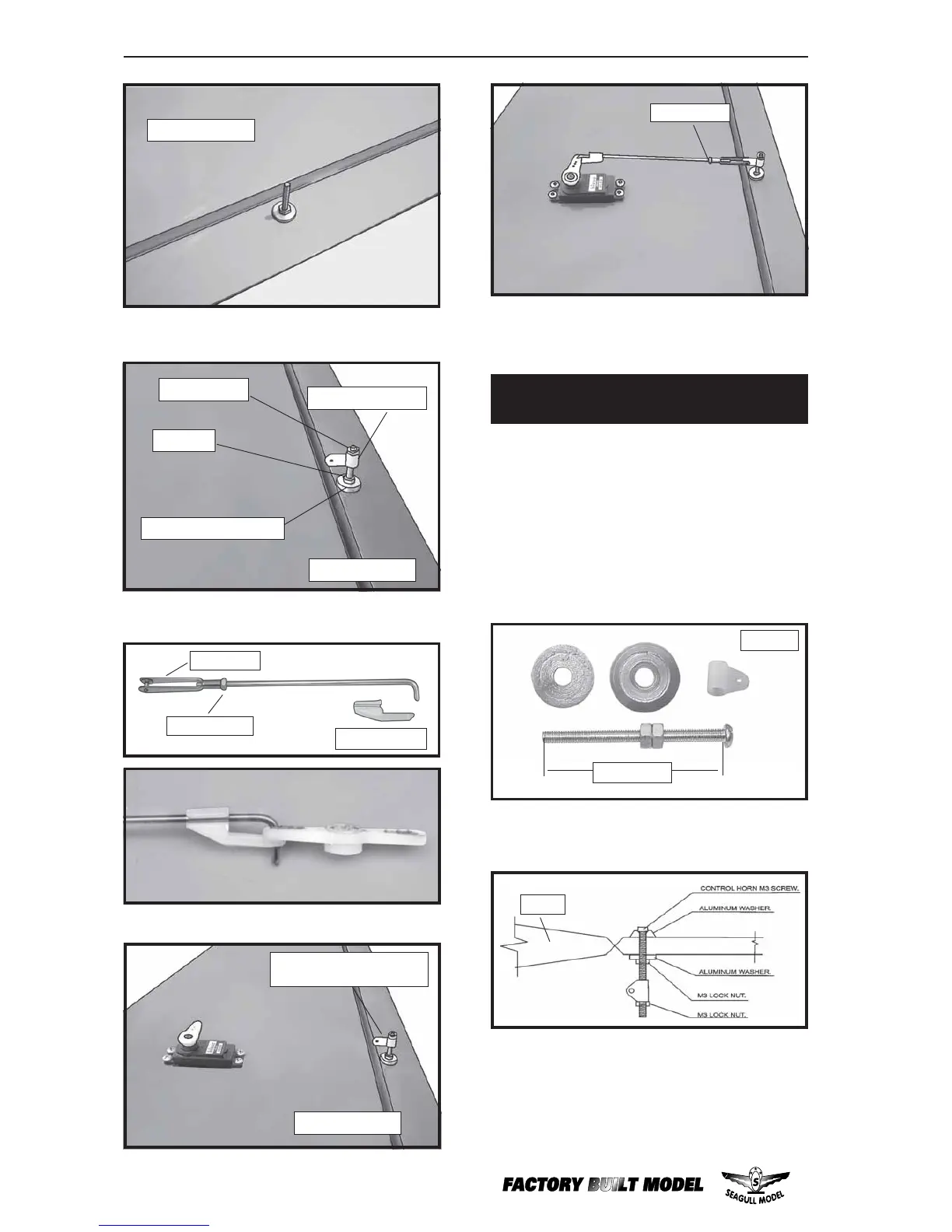

ELEVATOR - RUDDER CONTROL HORN
INSTALLATION.
 4) Install the rudder control horn using the
same method as with the elevator control
horns.
Wing.
Aileron.
2 sets.
3x35mm.
M2 lock nut.
M3 lock nut.
M3 nut.
Aluminium washer.
M3 control horn.
Wing bottom.
Wing bottom.
Aileron control horn.
Wing bottom.
 1) Install the elevator control horn using
the same method as with the aileron control
horns.
 2) Position the elevator control horn on
the both side of elevator.
