12 User Manual 62C/62S

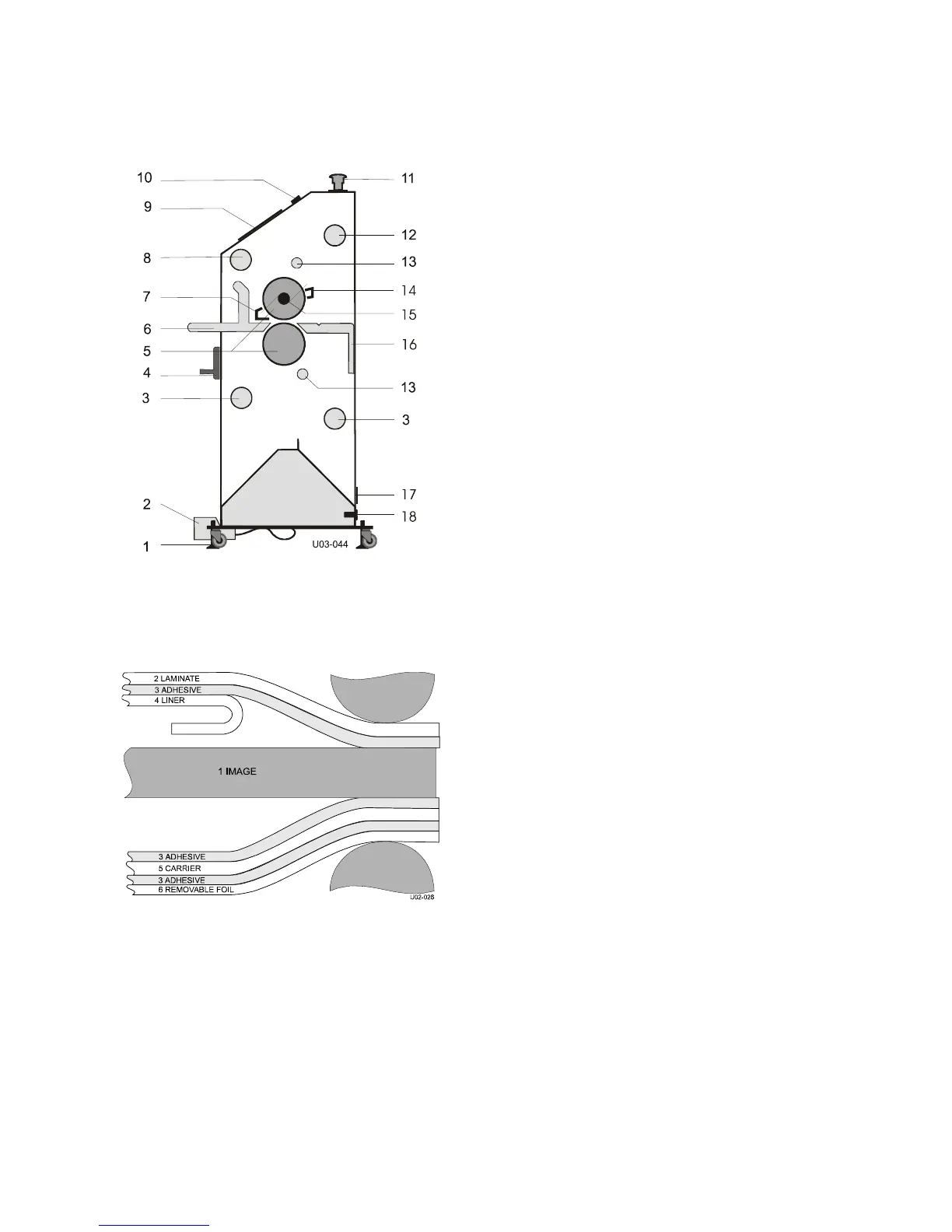

2.2 Parts identification
1 Castors and leveling feet
2 Foot switch
3 Unwind/wind-up shaft with tension control
4 Nip setting and pressure control wheel
5 Main rollers
6 In-feed table
7 Image guide
8 Wind-up shaft with tension control
9 Control panel
10 Heater control (62S)
11 Emergency button
12 Unwind shaft with tension control
13 Splitter bars
14 Output nip safety bar
15 Heater (62S)
16 Output table
17 Identification label
18 Main power entry
Figure 2: Main parts identification.
Figure 3 shows the cross section of the layers in the decal process. In this process the
largest number of layers is possible.
Figure 3: Cross section of layers, when making a decal.
Decaling in general is a cold process, where the bottom layer has no release liner.
The release liner (6 removable foil) is not removed during the decal process.
The carrier (5) is not always present. In this case the release liner (6) also functions as
carrier.
The top layer is a normal pressure sensitive laminate, in this case with a release liner.
Heat sensitive laminates in general have no release liners (4), so they just consist of the
laminate (2) with a heat activated adhesive layer (3).
