SEAL 62C - 4.2 Installation Steps

18 User Manual 62C/62S
4.2 Installation
1. Move the machine (and the accessories) to its final location.
Note:
Allow ample working space. See Figure 8.
L = Maximum board length,
S = Minimum space 60 cm.(24”),
X
1
= 130 cm (51”),
X
2
= 330 cm (130”)

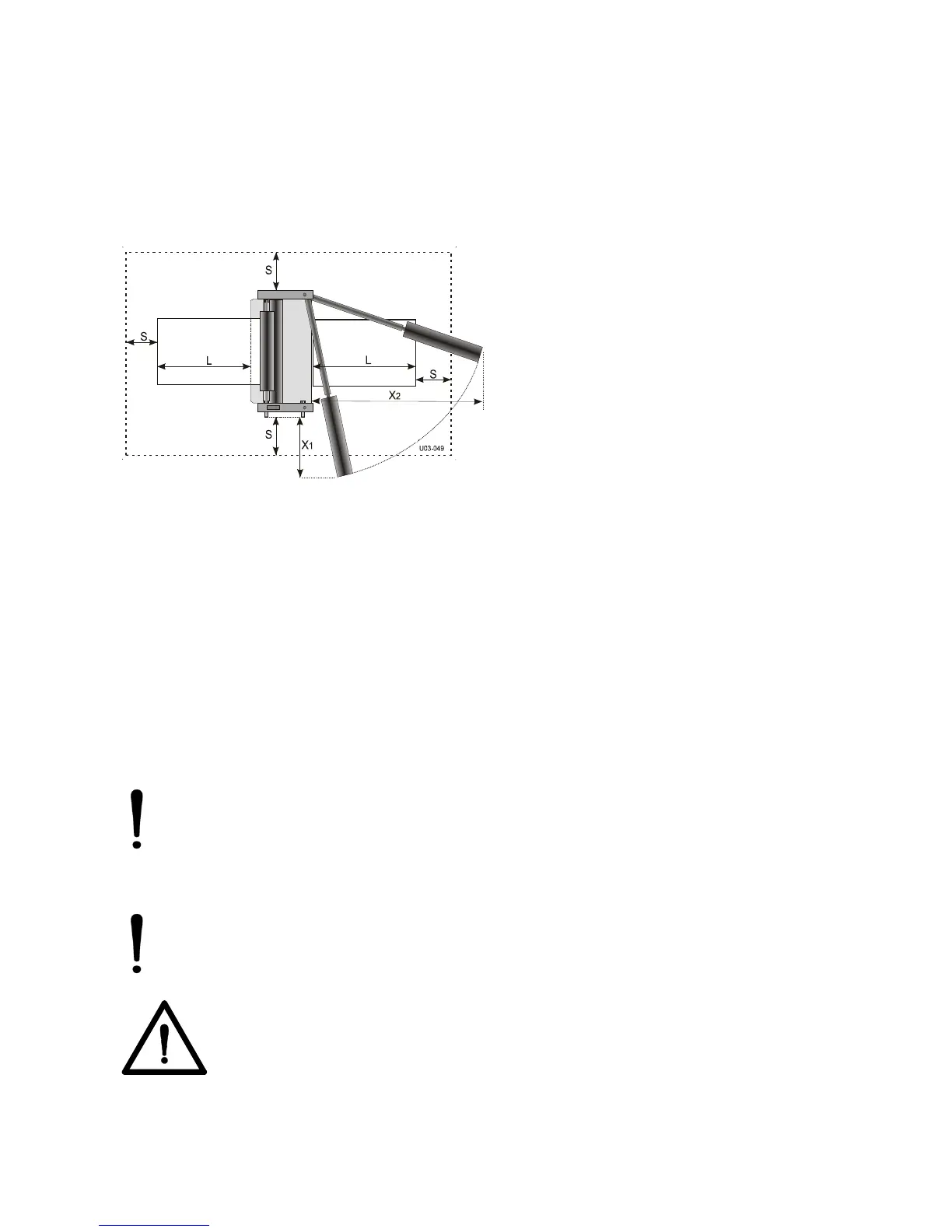

Figure 8: Working space.
2. Turn down the four leveling feet until the castors are off the floor.
3. Remove all transport material.
• Cut the straps around the shaft supports and remove the foam pads,
• Cut the straps holding the in-feed table arms,
• Cut the straps around the main roller axis and move up the top main roller to
remove the transport blocks from the nip,
• Cut the straps holding the upper pull roller and open the pull rollers to remove the
transport plates.
4. Put a spirit level (horizontal) on the upper main roller and (vertical) against the front of
both cabinets to level the machine by adjusting the four leveling feet.
CAUTION:
Check the mains values before connecting. See section 3.4 for power supply
details
5. Connect the machine to the mains using the power cable supplied with the machine.
CAUTION:
Only if absolutely necessary, use an extension cable of ample capacity.
Unroll the extension cable completely.
WARNING:
MAKE SURE THE POWER SUPPLY CABLE AND/OR THE EXTENSION
CABLE IS NOT BLOCKING YOUR WAY AROUND THE MACHINE.
