3 SPECIFICATIONS
3.1 Identification
The machine identification label (example in Figure 5) is located at the bottom of the right-
hand cabinet, on the rear side of the machine.
This label indicates the model (version) and the power supply requirements.
CAUTION:
The mains supply must match the values indicated on the machine
identification label.

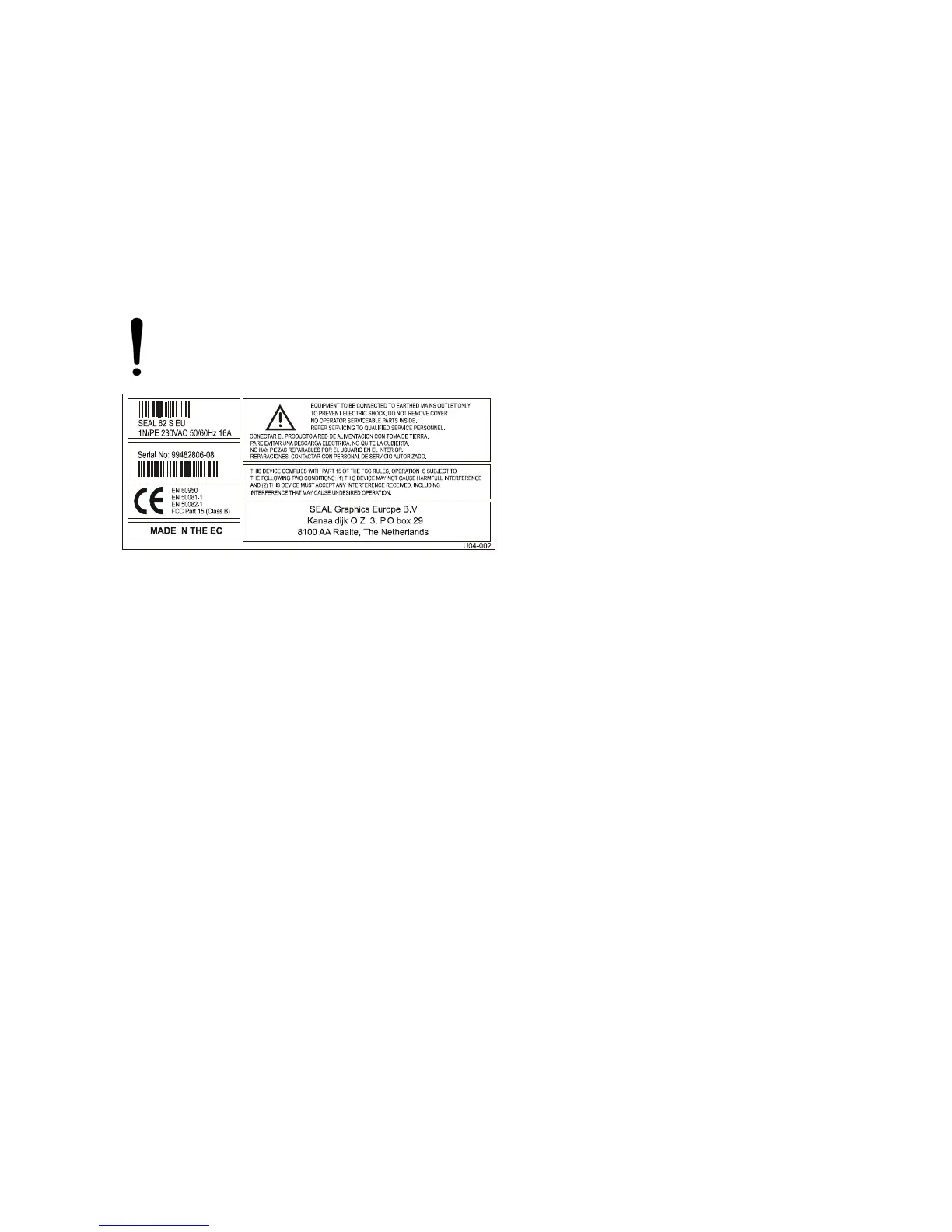

Figure 5: Machine identification label (example).
3.2 Machine dimensions
Uncrated: Metric American
Width 223.2 cm 87.9 in.
Height 140.7 cm 55.4 in.
Depth (excl. table) 65.4 cm 25.7 in.
Depth (incl. in-feed table) 66.6 cm 26.2 in.
Depth (incl.Easy feed table and trough) 92 cm 36.2 in.
Working height 89 cm 35.0 in.
Weight 488 kg 1076 lbs
Crated:
Width 228 cm 89.8 in.
Height 167.5 cm 64.8 in.
Depth 90 cm 35.4 in.
Weight 540 kg 1090 lbs
Working area:
Width 420 cm 168 in.
Depth 190 cm (75 in.) + 2x maximum board length
Note:
Anti-static clothing and footwear of the operator and an anti-static floor coating will help
reduce the build-up of electrostatic charges (ESD).
A relative humidity of at least 70% also helps reducing ESD-build-up.
