Seastar Solutions Seastar PROTAP Controller User Manual

8
SeaStar ProTap Controller
MM
J5: PROTAP_SW
(PINK)
(YELLOW)
IGNITION SWITCH
+
–
PROTAP
ON/OFF
JACKPLATE HARNESS DW0334
ACTUATOR
UP RELAY
OEM POWER
TRIM & TILT
RELAYS
OEM POWER
TRIM & TILT
MOTOR
ACTUATOR
DOWN RELAY
IGS
J1: BATT+
J2: BATT– J4: TRIM_DN (GREEN)
J3: TRIM_UP
(BLUE)
J7: JPSW_DN
J6: JPSW_UP
J11: JP0_DN (GREEN)
J10: JP0_UP (BLUE)
(BLUE)
(GREEN)
J20: TRIMSW_UP (BLUE) J21: TRIMSW_DN (GREEN)
DUAL PROTRIM
SWITCH INPUT
JACKPLATE
SMARTSTICK GAUGE
(OPTIONAL)
CONTROL
HEAD
(NOT
SUPPLIED BY
SEASTAR)
JACKPLATE
JACKPLATE HARNESS DW0334
ENGINE
(NOT SUPPLIED BY SEASTAR)
(NOT SUPPLIED BY SEASTAR)
GND
+12V
+12V
OEM DIGITAL
TRIM SENDER
J18: CAN0_GND
NMEA2000
NETWORK
J15: CAN0_H J16: CAN0_L J17: CAN0_POWER
J12: SENDER_GND
J13: SENDER_SIG
J9: SS0_POWER
2 WIRES
2 WIRES
NOTE: IF NO GAUGE, CONNECT SMARTSTICK
GROUND SS0_GND TO J8
10A FUSE
+12V
NOTE: FOR TRIM SIGNAL CONNECT TO EITHER NEMA 2000
NETWORK OR TO OEM DIGITAL TRIM SENDER
BATTERY
J19: DIGITAL_IO2
BUZZER
(OPTIONAL)

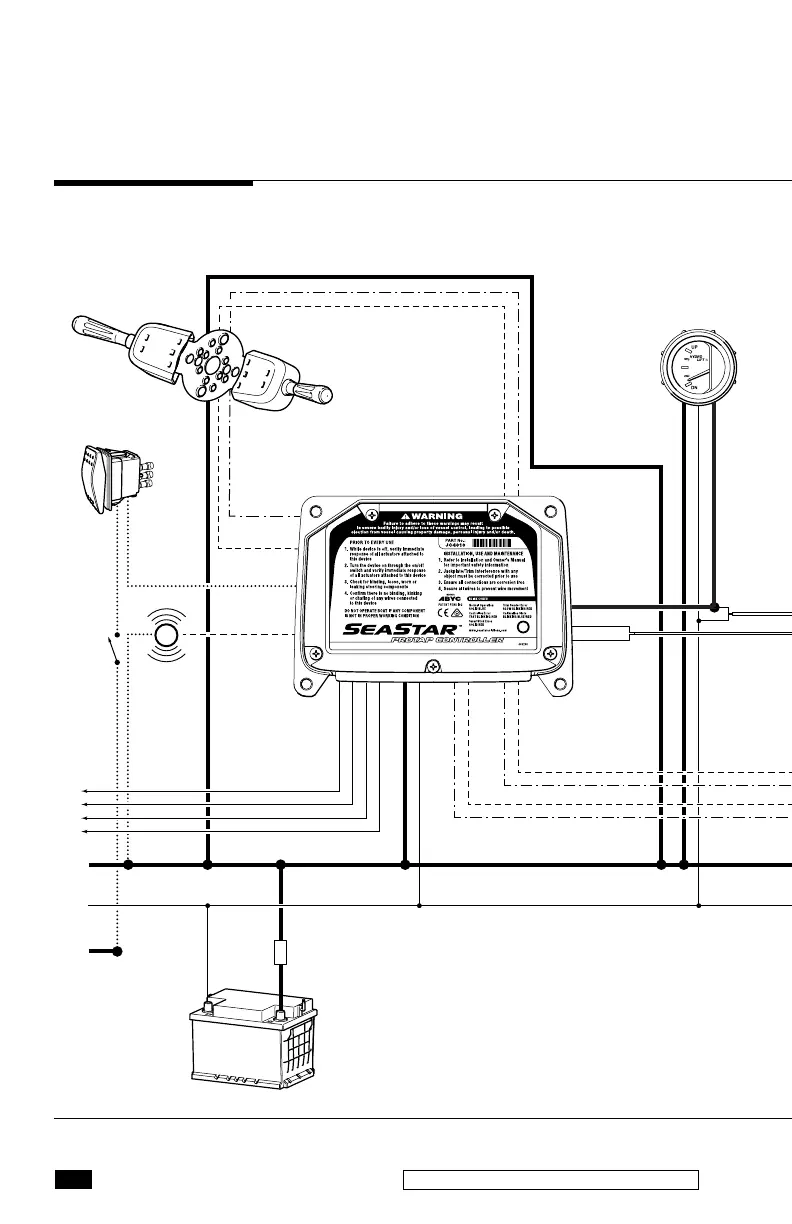

Figure 3-2. Single Jackplate, Gauge and Trim.
Single Jackplate and Trim (Gauge Optional)
