Seastar Solutions Seastar PROTAP Controller User Manual

10
SeaStar ProTap Controller
MM
MM
+
–
PROTAP
ON/OFF
JACKPLATE HARNESS DW0334
ACTUATOR
UP RELAY
ACTUATOR
DOWN RELAY
+12V GNDGND
J22: SS1_GND
J23: SS1_PWR
J9: SS0_POWER
J1: BATT+
J2: BATT–
PROTRIM
SWITCH INPUT
JACKPLATE
SMARTSTICK GAUGE
(OPTIONAL)
JACKPLATE
JACKPLATE HARNESS DW0334
ENGINE
(NOT SUPPLIED BY SEASTAR)
JACKPLATE HARNESS DW0334
ACTUATOR
UP RELAY
ACTUATOR
DOWN RELAY
OEM DIGITAL
TRIM SENDER
JACKPLATE
JACKPLATE HARNESS DW0334
ENGINE
(NOT SUPPLIED BY SEASTAR)
BATTERY
GND
+12V
OEM DIGITAL
TRIM SENDER
NMEA2000
GATEWAY
NMEA2000
GATEWAY
IGS
J18: CAN0_GND
NMEA2000
NETWORK
J15: CAN0_H J17: J16: CAN0_L CAN0_POWER
2 WIRES
2 WIRES
10A FUSE
+12V
NOTE: TRIM SIGNAL
DETECTED VIA NMEA 2000
NETWORK ONLY
NOTE: IF NO GAUGE, CONNECT SMARTSTICK
GROUND SS0_GND TO J8
J19: DIGITAL_IO2
BUZZER
(OPTIONAL)
J7: JPSW_DN
J6: JPSW_UP
J5: PROTAP_SW
(PINK)
(BLUE)
(YELLOW)
(GREEN)
J25: JP1_DN (GREEN)
J24: JP1_UP
(BLUE)
J11: JP0_DN (GREEN)
J10: JP0_UP (BLUE)
IGNITION SWITCH
+12V
NOTE: FOR TRIM SENDER SIGNAL CONNECT
TO NEMA 2000 NETWORK

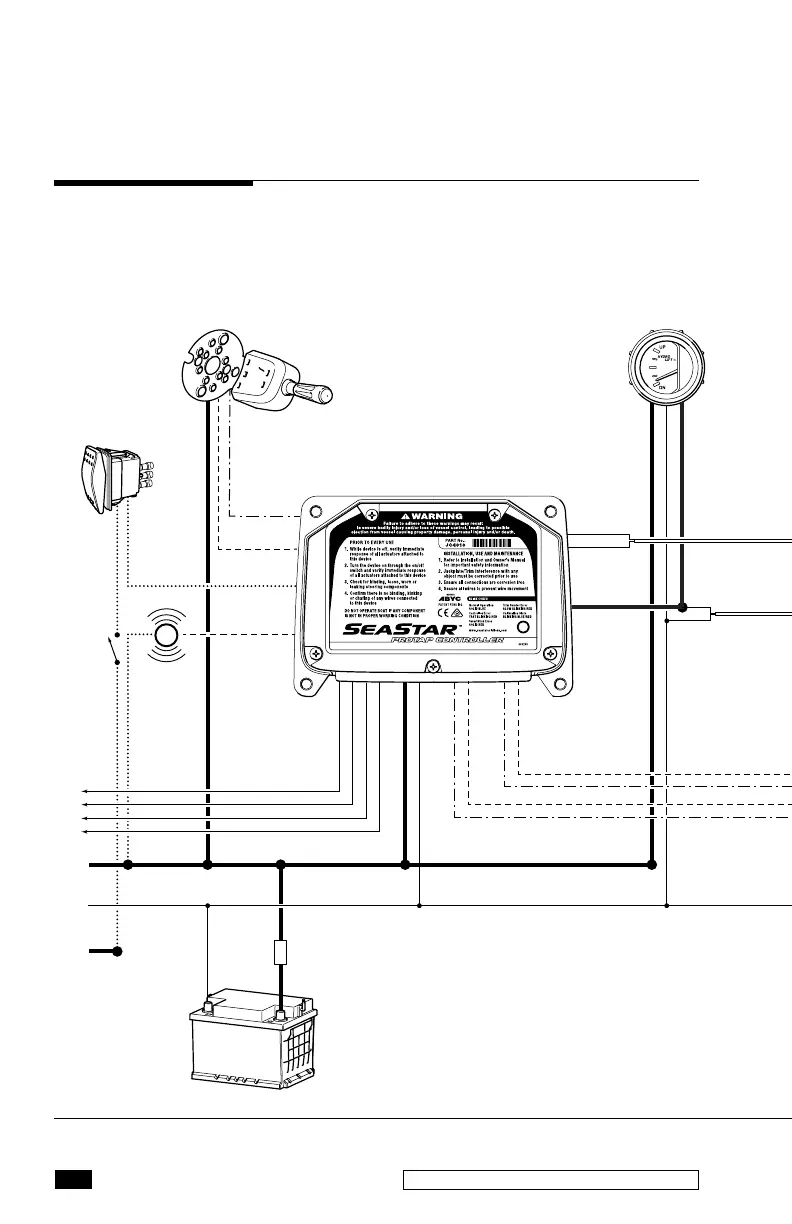

Figure 3-3. Twin Jackplate and Gauge.
Twin Jackplate (Gauge Optional)
