Seastar Solutions Seastar PROTAP Controller User Manual

16
SeaStar ProTap Controller

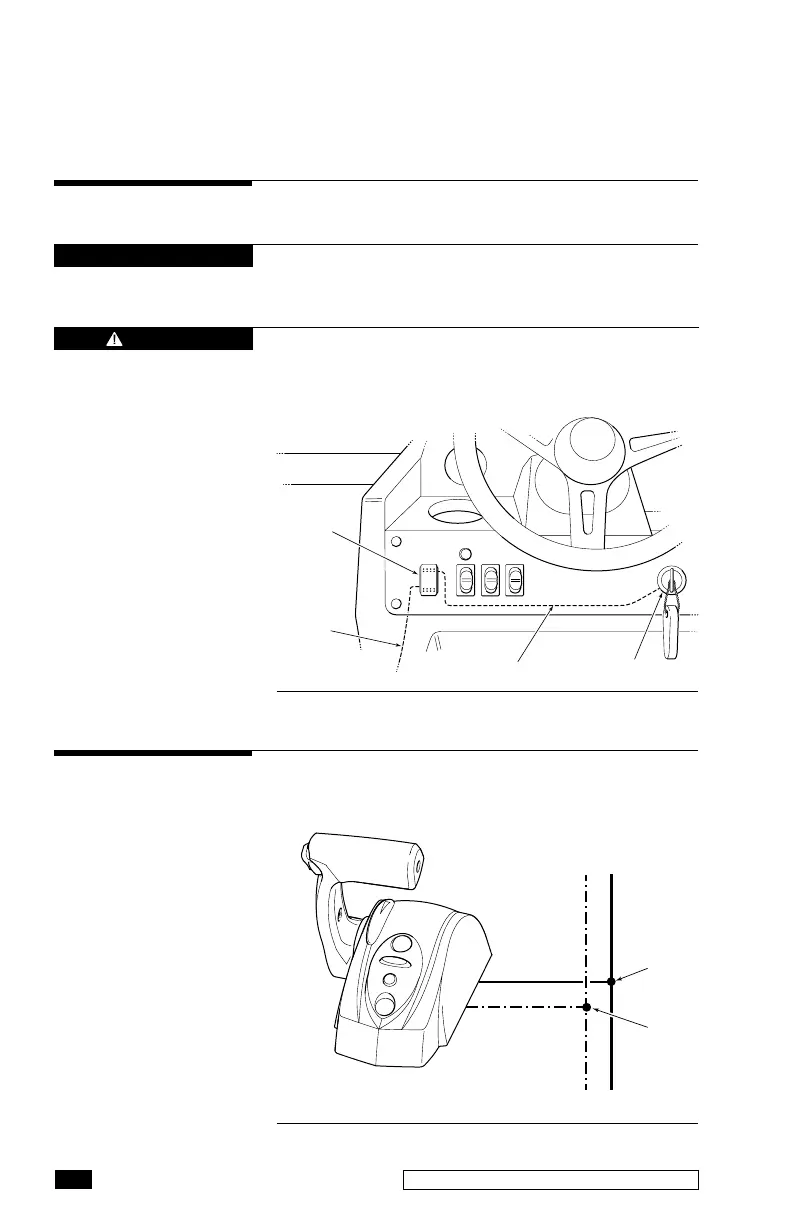

Figure 4-4.
ProTap on/off switch MUST be connected to the ignition
switch OUTPUT line only.
To enable trim control the controller needs to be connected
to the trim switch wires on the control head.
ON/OFF
SWITCH
LINE TO
CONTROLLER
IGNITION SWITCHON/OFF LINE
On/Off Switch
Figure 4-5. Dash Mount Control Head option.
CONTROL
HEAD
BUTT
SPLICE
TRIM UP
TRIM DOWN
TO ENGINE
TO CONTROLLER
BUTT
SPLICE
Trim Switch Splicing
When ignition switch is off, trim signal is lost. ProTap will
beep loss of trim signal fault if not wired to the ignition
switch OUTPUT.
NOTICE
Do not use ignition switch to turn the protap off during
calibration. This will disconnect trim signal and trim
positions will not be saved.
WARNING
