Replacement instructions
seca 703
05.10.12 /MRE 5 30-34-00-849_E
1.2 Setting the overload protection device
To protect the scale from overload, four overload protection devices are provided on
the platform support (Fig. 3).
Use a gauge to set dimensions D in accordance with the drawing in Figure 3.
When tightening the locknuts pay attention not to change the adjustment of the
screws (use needle-nose pliers to hold!)
The settings must be very accurate to prevent a forced shunt.

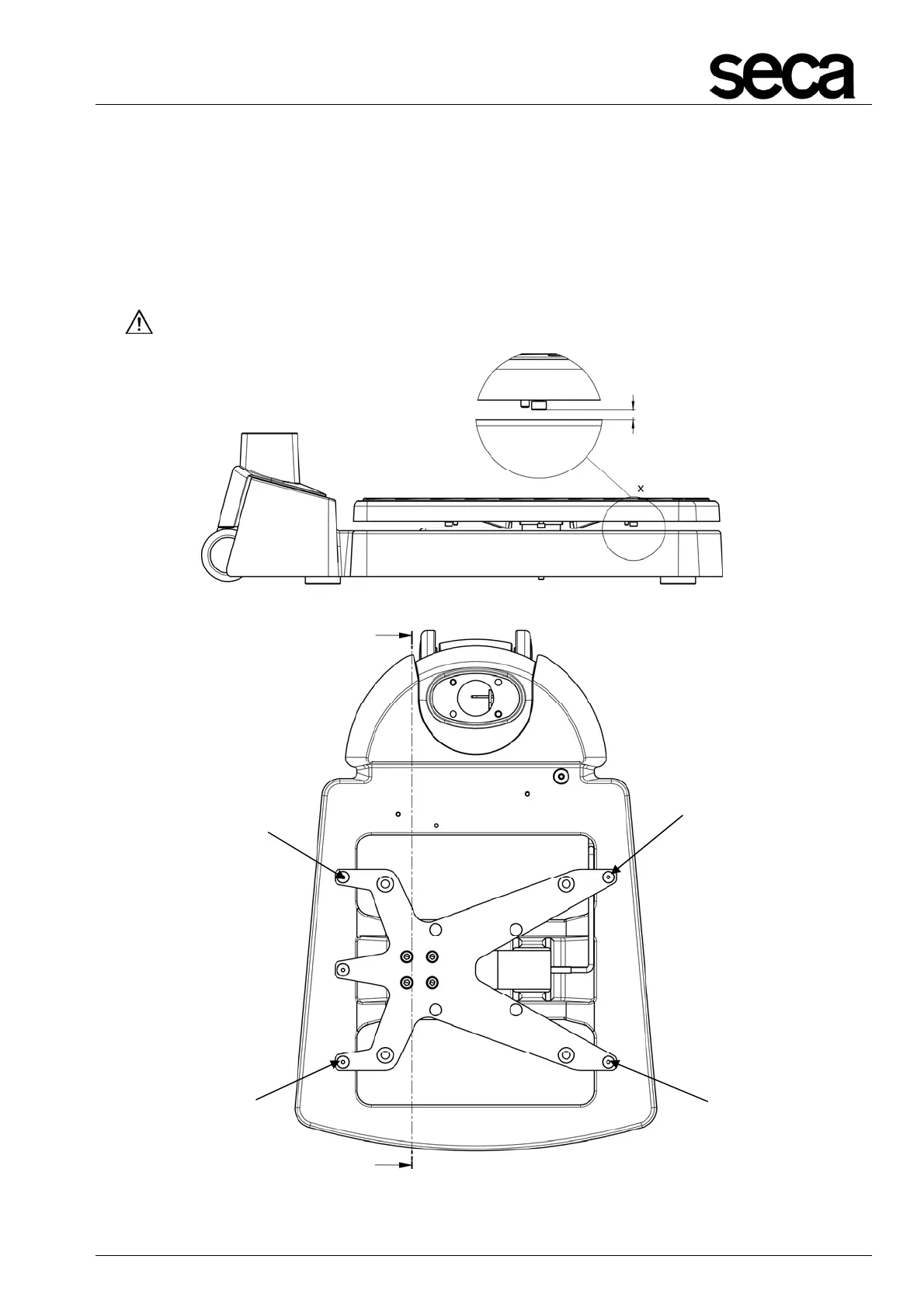

Figure 3: Setting the overload protection
D = 4,5 mm ± 0,2
D = 4,5 mm ± 0,2
D = 3,0 mm ±0,2
D = 3,0 mm ±0,2
D
