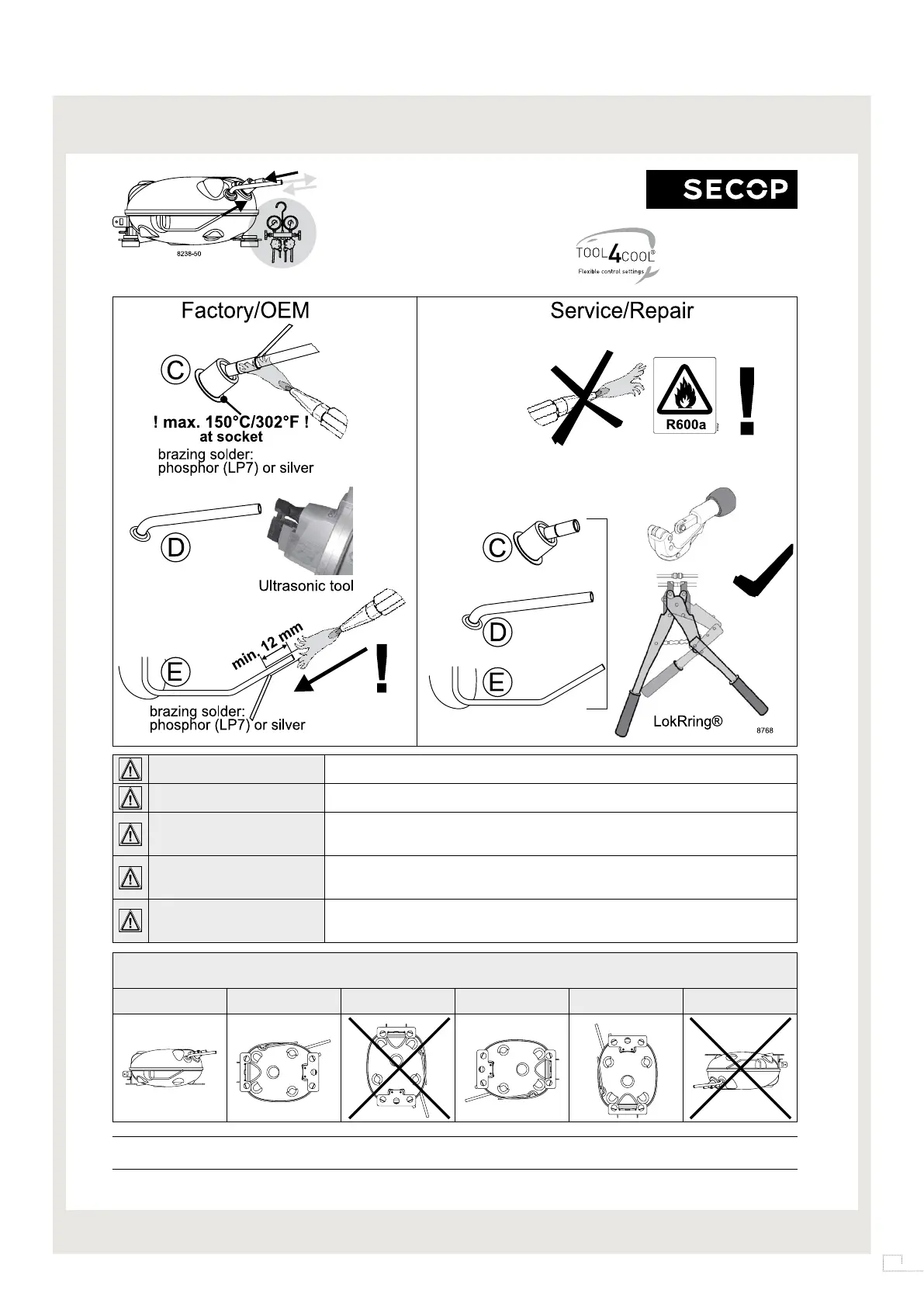

Instructions
XV Compressors
160-264V, 50/60Hz
with 105N5xxx
Series Controllers
Max. pressure Max. pressure is 20 bar. Abrupt pressure drop > 3 bar/sec is not permitted.
Evacuation Two-sided evacuation (suction and discharge side) is essential.
Supply voltage
230 V (+15 % / - 30 %), 50/60 Hz, only with electronic controller
Refer to XV controller Instructions for wiring diagrams.
Oil charge
The compressor is already charged with 115 ml oil (5 cSt mineral).
No oil should be removed or relled.
Mounting instructions
Compressor service
https://www.secop.com/products/technical-literature-guidelines/
https://www.secop.com/solutions/compressor-qa-tools/compressor-service/
Shipment positions
of refrigeration appliances
Horizontal Connectors up Electrical lead-in up Connectors down
Electrical lead-in
down
Base plate up
