3.5 Audio input test

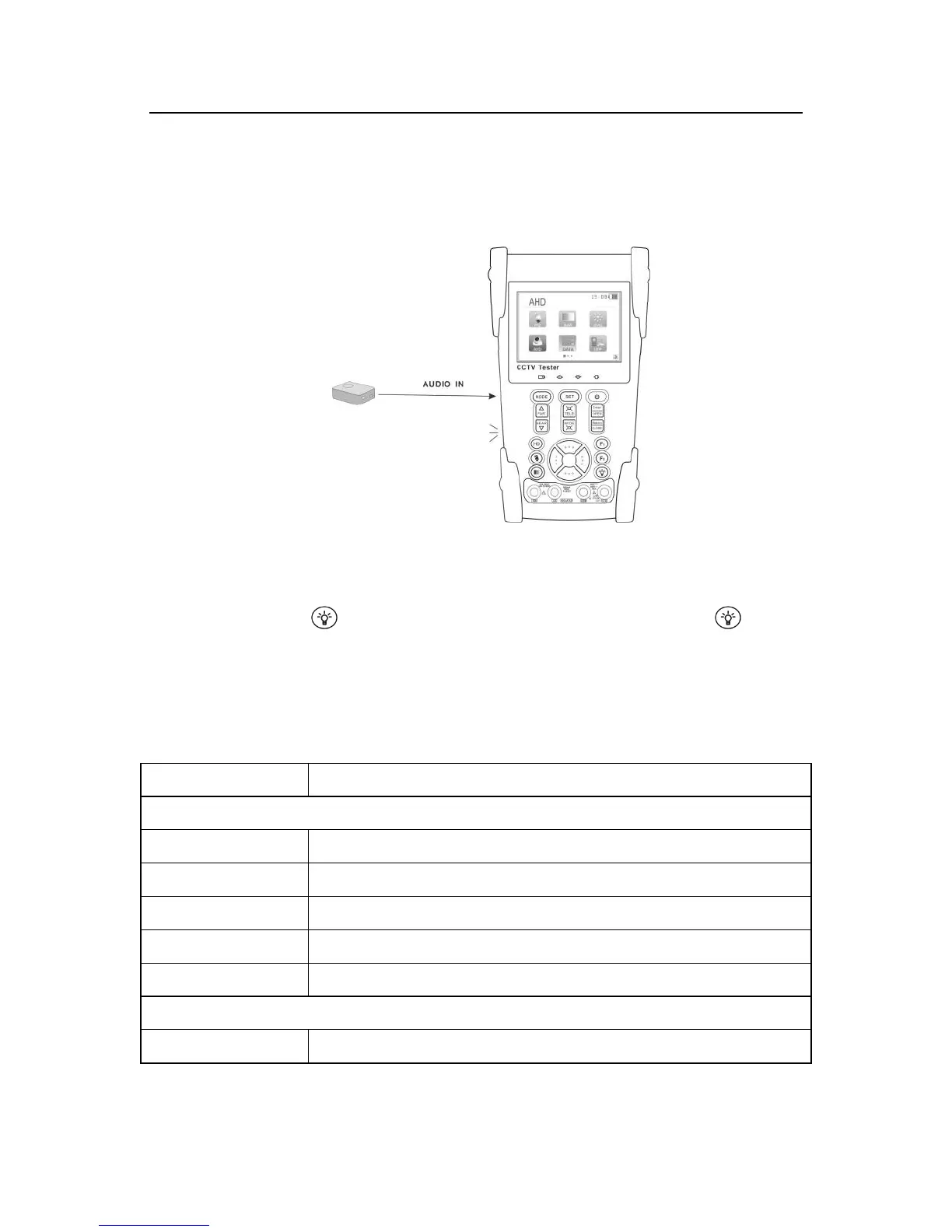

Test the audio input from pickup devices. Connect the tester and audio source using the supplied cable.
NOTE: Please check your local laws governing the use of audio recording/monitoring equipment.
3.6 LED lamp
The ST-HDoC is equipped with an on board LED flashlight located on the top of the unit.
Turn on the tester, press for several seconds, and the LED lamp will turn on, press again
to turn off the lamp.
4、Specifications
4.1 General Specifications
Model
ST-HDoC / ST-HDoC-MM
Video Test
Signal mode
NTSC/PAL (Auto adaptive)
Display
3.5 inch HVGA TFT-LCD, 480（RGB）x 320 resolution
LCD adjustment
Brightness, Contrast, Saturation adjustable
Video IN/OUT
1 channel BNC Input & 1 channel BNC Output
Video Output Mode
1.0 Vp-p
Video Signal Test
Video signal test
Video signals measured in IRE or mV
