Sega GHOST SQUAD - EVOLUTION User Manual

ASSEMBLY AND INSTALLATION
19
6
6

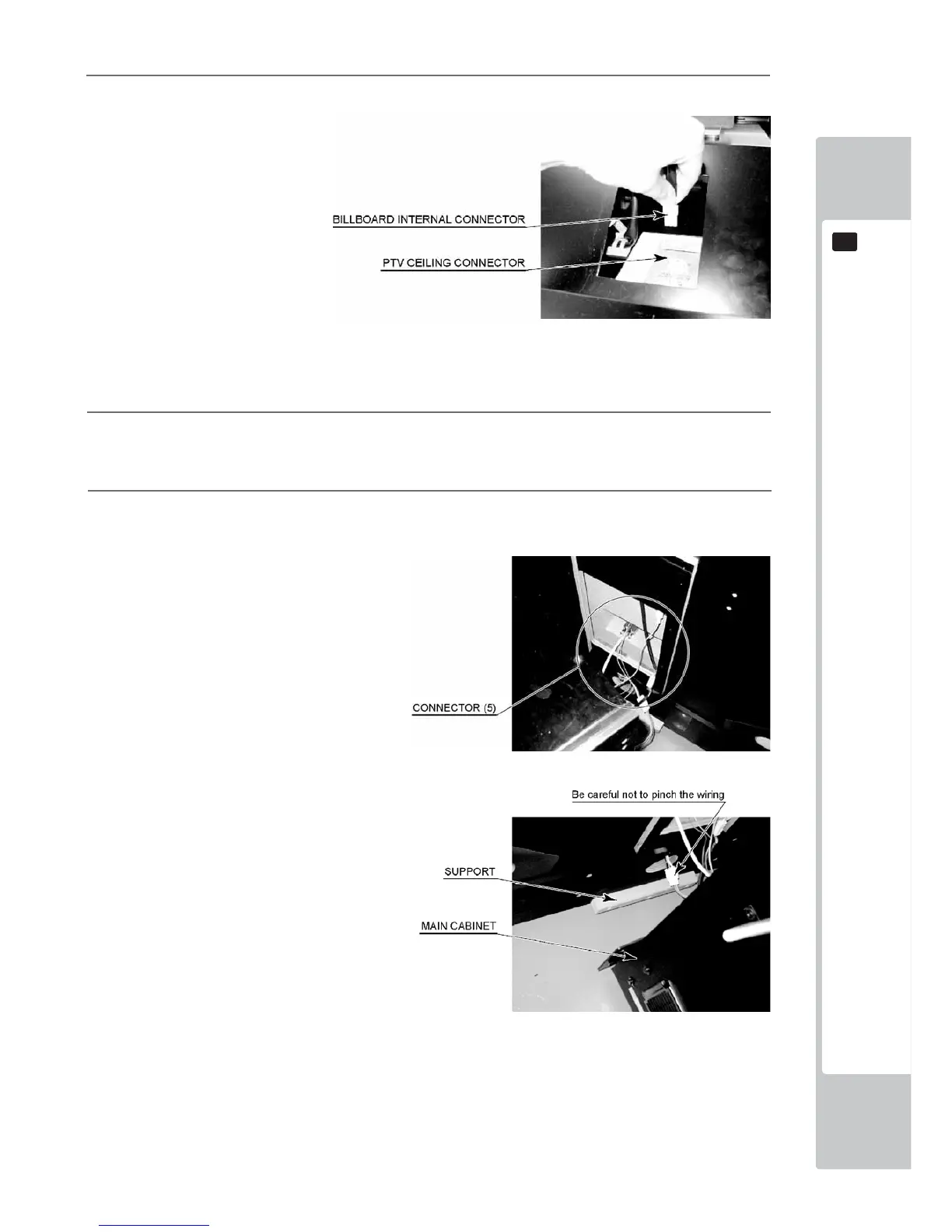

Once the Connector Lid is removed. Locate the Billboard Harness and connect the 2x connectors into the
top of the PTV.
FIG. 6-1j
FIG. 6-1k
7
Once connected. Re-attach the Connector lid using the 1x truss removed in step 6.
8
The next step is to attach the Gun Cabi to the Display Cabi. Firstly bring the two cabinet together. Connect
the wiring between the to cabinets. There are a total of 6 connection to make.
