18
ASSEMBLY AND INSTALLATION
6
3

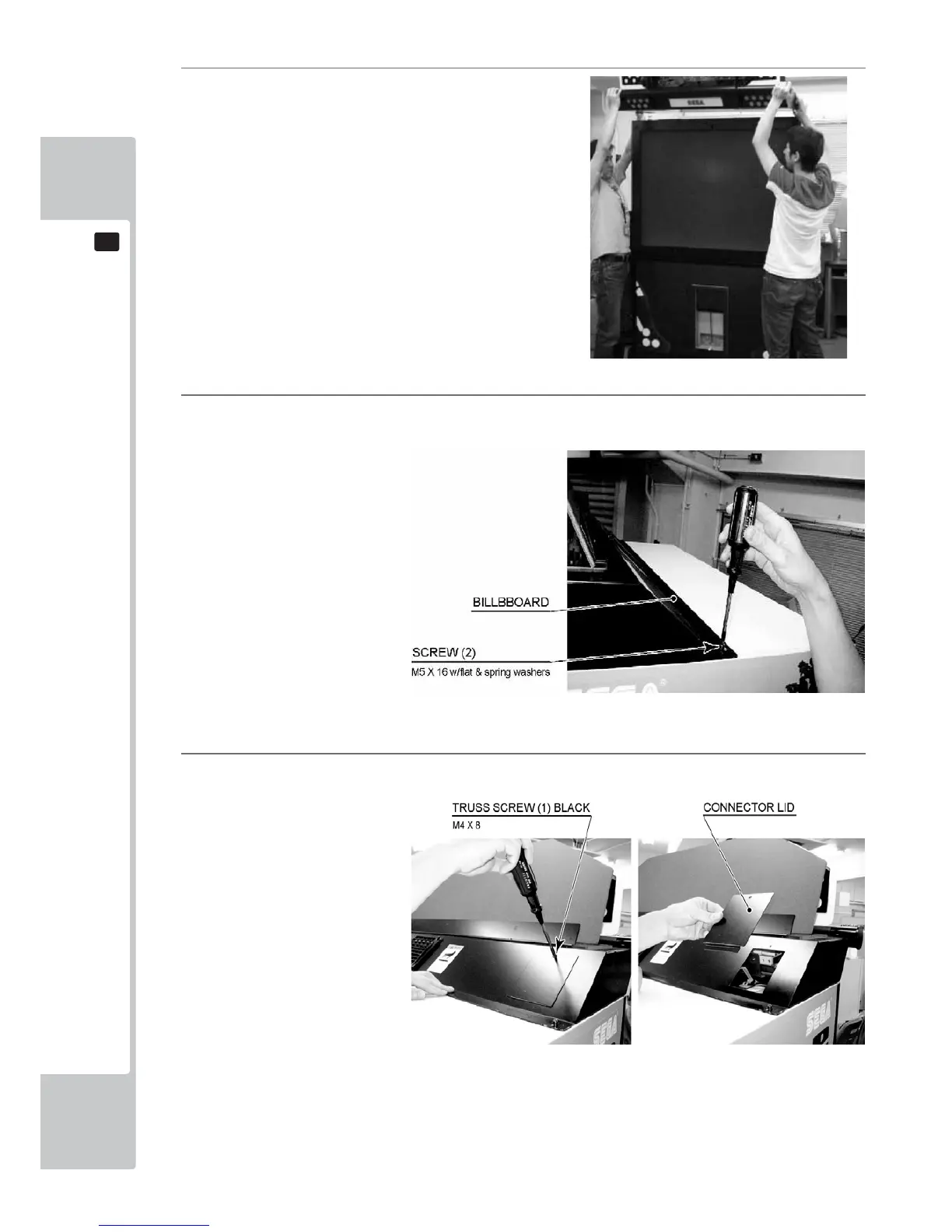

IMPORTANT. - 2 poeple are required for this operation
as the Billboard is HEAVY. Lift the Billboard so that it
is positioned centrally on the PTV. Carefully lower the
Billboard onto the PTV as not to trap any wires. Then
slowly slide the Billboard forward towards the screen so
that Billboard latches onto the clasps on the upper part of
the mask.
4
A Stepladder will be needed to perform the next operation. Once the Billboard is in location, attach it in to
position using 2x truss screws supplied in the installation kit.
FIG. 6-1g
FIG. 6-1h
5
To connect the Billboard lamps, the next step is so remove the connector lid from the rear of the Billboard.
FIG. 6-1i
