Sega OutRun User Manual

8.

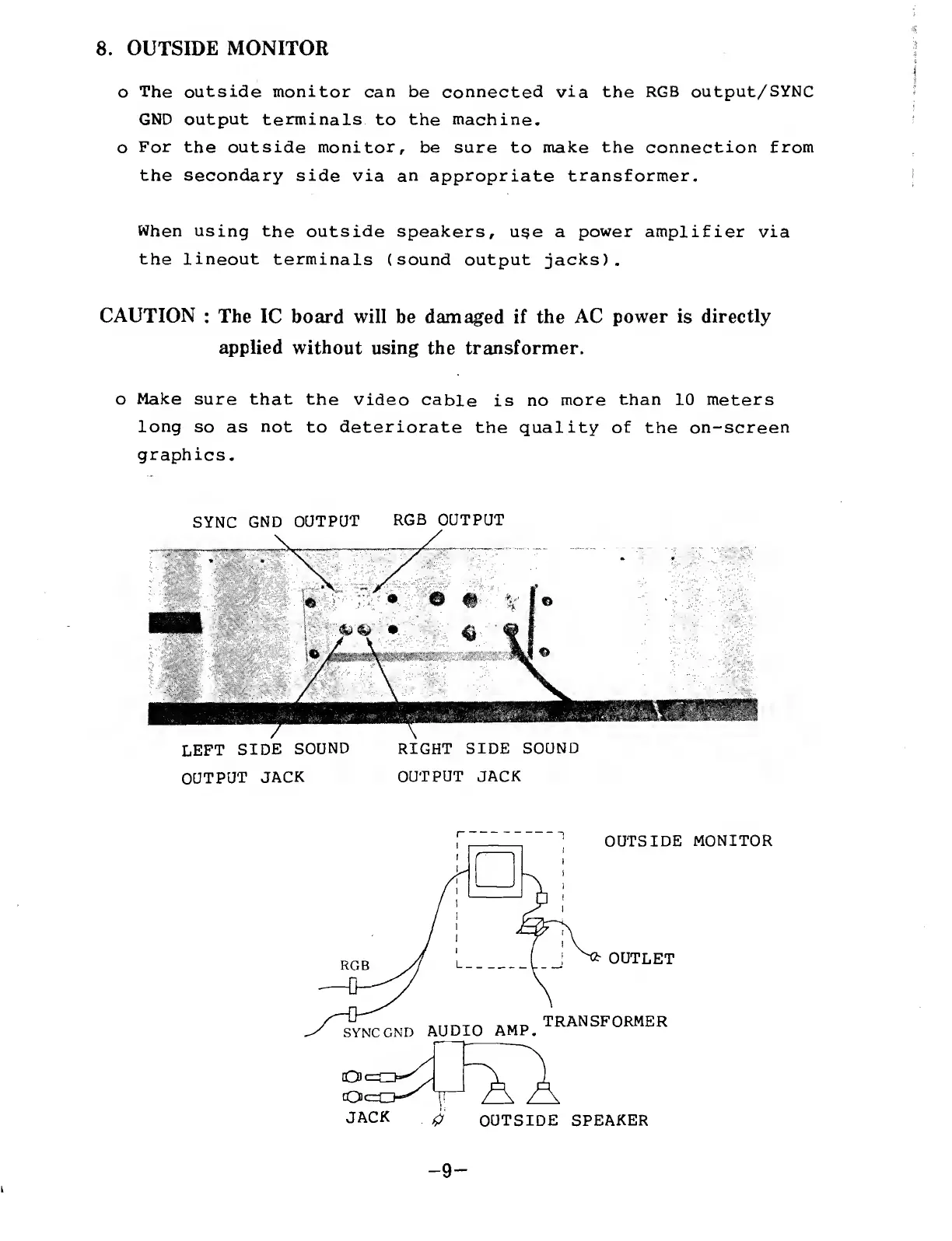

OUTSIDE MONITOR
o
The outside monitor can be connected via the
RGB
output/
SYNC
GND output terminals
to the machine,
o
For
the
outside
monitor, be sure to make the connection
from
the secondary
side via an appropriate transformer.
When using
the outside speakers,
use
a
power amplifier via
the lineout
terminals
(sound output jacks).
CAUTION
:
The
IC board will be damaged if the AC
power
is
directly
applied
without using the transformer.
o
Make
sure
that the
video
cable
is no
more
than
10 meters
long
so as not
to deteriorate
the quality of
the
on-screen
graphics
.
SYNC
GND
OUTPUT
RGB OUTPUT
LEFT
SIDE
SOUND RIGHT
SIDE SOUND
OUTPUT
JACK
OUTPUT JACK
-
9
-

Sega OutRun Specifications

General

Developer	Sega AM2
Publisher	Sega
Release Year	1986
Platform	Arcade
Genre	Racing
Cabinet	Upright, Sit-down
Sound	Stereo
Sound Chip	Yamaha YM2151, SegaPCM
Resolution	256 x 224 pixels
Orientation	Horizontal
Players	1
Storage	ROM
Display	Raster
Controls	Steering wheel, gear shift, accelerator pedal
CPU	Motorola 68000
