Sega OutRun User Manual

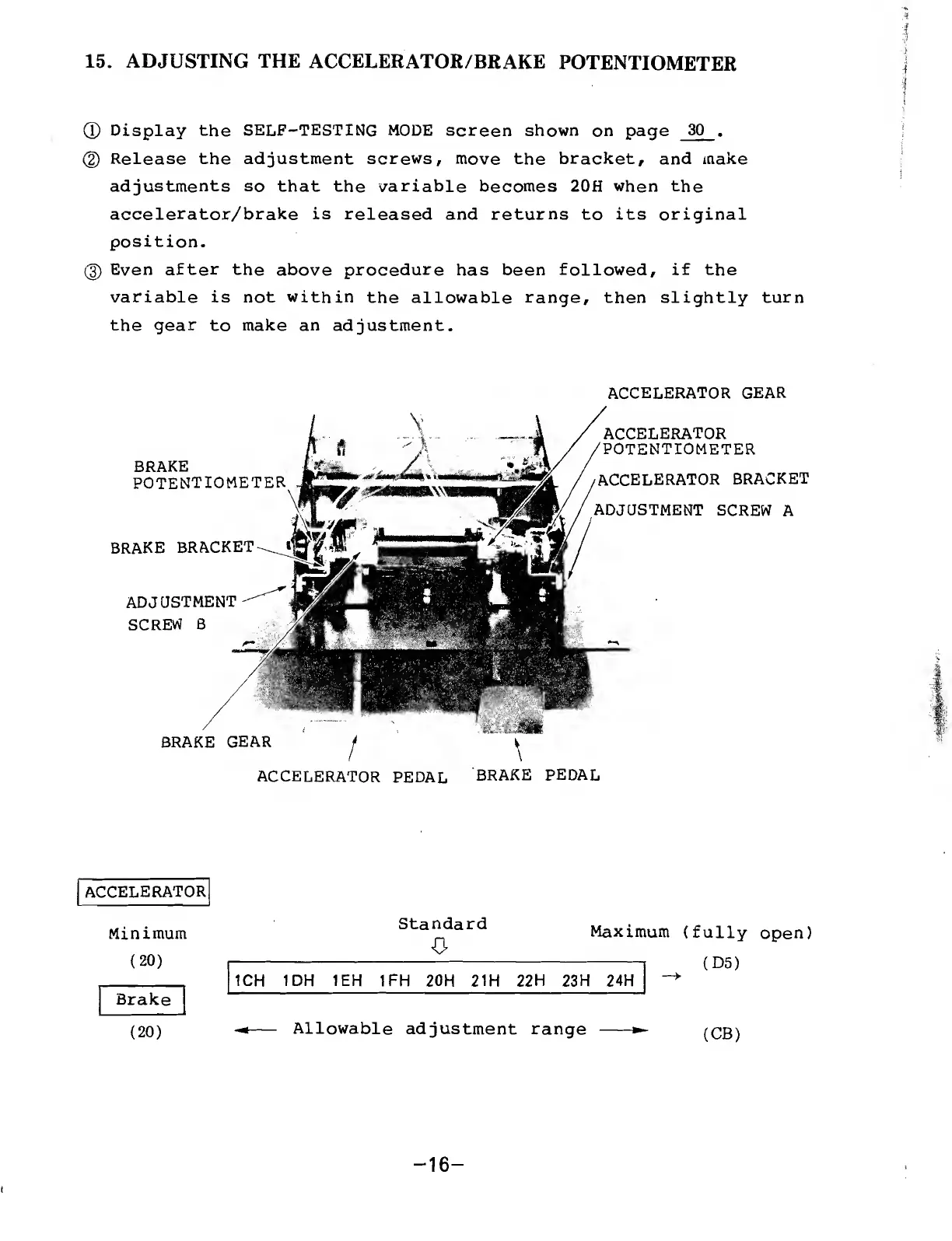

15. ADJUSTING THE
ACCELERATOR/BRAKE
POTENTIOMETER
(D
Display
the
SELF-TESTING
MODE
screen shown on page
30
.
(2)
Release the adjustment screws,
move the
bracket, and make
adjustments so that the variable becomes 20H when the
accelerator/brake
is
released and returns to its original
position.
(
3
)
Even after
the above procedure has been followed,
if
the
variable is not within
the allowable range, then slightly
turn
the
gear
to
make an
adjustment.
ACCELERATOR
GEAR
BRAKE
GEAR
ACCELERATOR
POTENTIOMETER
ACCELERATOR
BRACKET
ADJUSTMENT
SCREW
A
ADJUSTMENT
SCREW
B
BRAKE
POTENTIOMETER
BRAKE
BRACKET
ACCELERATOR
PEDAL
BRAKE PEDAL
ACCELERATOR
Minimum
(
20
)
Brake
Standard
u
Maximum
(f
1CH 1 DH 1 EH 1 FH
20H 21H
22H 23H 24H
ully
open)
(D5)
(
20
)
Allowable
adjustment
range
(CB)

Sega OutRun Specifications

General

Developer	Sega AM2
Publisher	Sega
Release Year	1986
Platform	Arcade
Genre	Racing
Cabinet	Upright, Sit-down
Sound	Stereo
Sound Chip	Yamaha YM2151, SegaPCM
Resolution	256 x 224 pixels
Orientation	Horizontal
Players	1
Storage	ROM
Display	Raster
Controls	Steering wheel, gear shift, accelerator pedal
CPU	Motorola 68000
