Sega OutRun User Manual

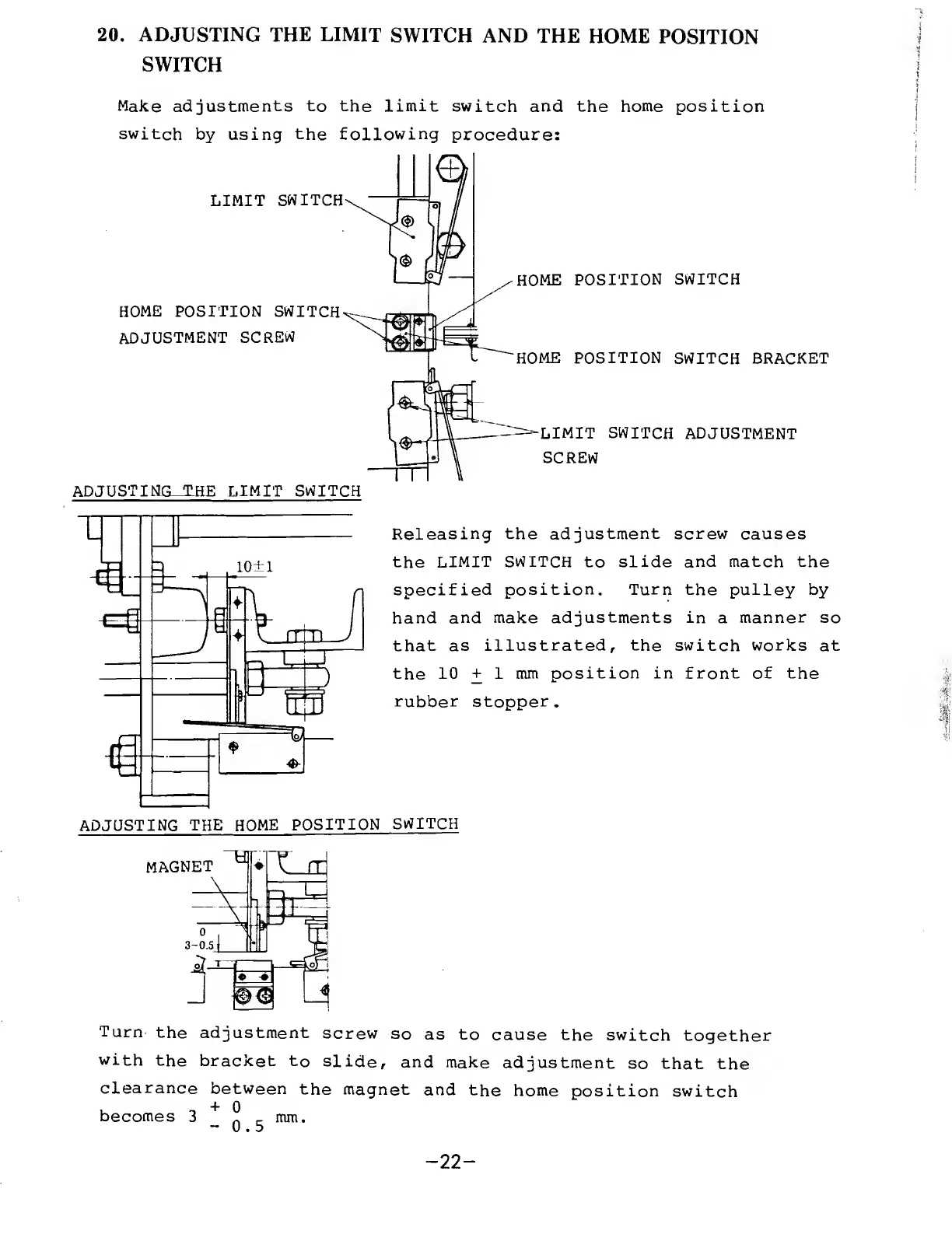

20.
ADJUSTING
THE LIMIT
SWITCH
AND
THE
HOME
POSITION
SWITCH
Make adjustments to the
limit
switch and the home position
switch
by using the following
procedure:
Releasing
the adjustment screw
causes
the
LIMIT SWITCH
to
slide and match the
specified
position. Turn the pulley by
hand and
make adjustments in
a
manner so
that as
illustrated,
the switch works at
the
10
+
1
mm position in front of the
rubber stopper
.
ADJUSTING
THE HOME
POSITION
SWITCH
3
-
0.5
Turn
the adjustment
screw
so
as to
cause the
switch
together
with
the
bracket
to slide,
and
make
adjustment
so
that
the
clearance
between
the
magnet
and
the
home
position
switch
becomes
3
*
^
^
mm.
-
22
-

Sega OutRun Specifications

General

Developer	Sega AM2
Publisher	Sega
Release Year	1986
Platform	Arcade
Genre	Racing
Cabinet	Upright, Sit-down
Sound	Stereo
Sound Chip	Yamaha YM2151, SegaPCM
Resolution	256 x 224 pixels
Orientation	Horizontal
Players	1
Storage	ROM
Display	Raster
Controls	Steering wheel, gear shift, accelerator pedal
CPU	Motorola 68000
